Tillers for Tractors

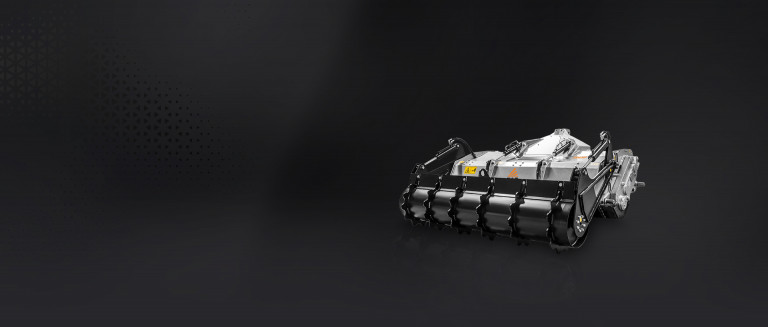

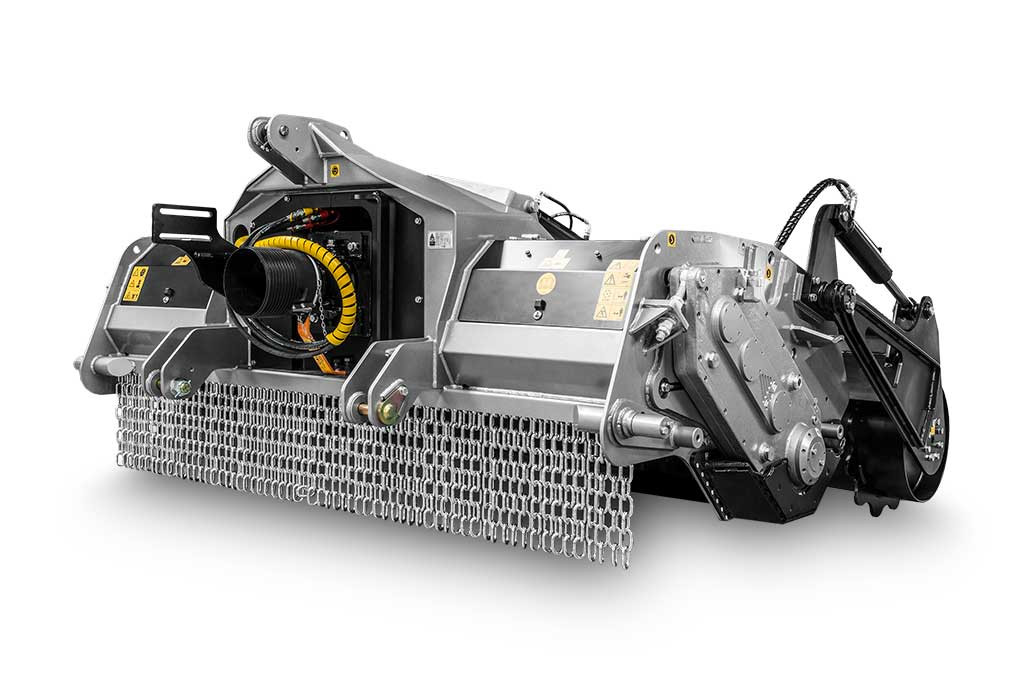

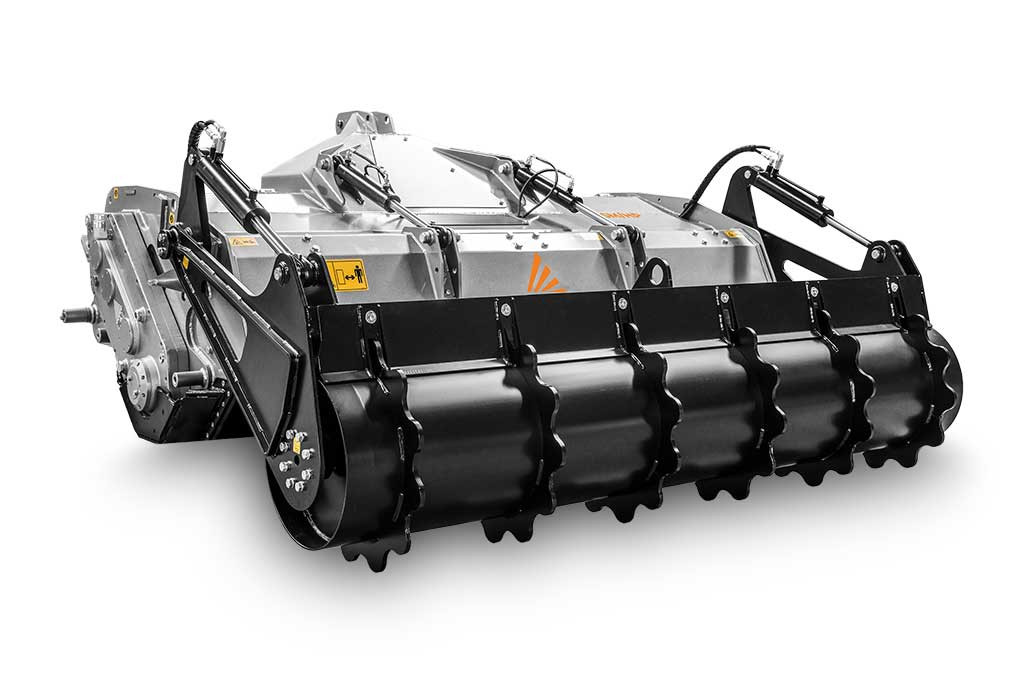

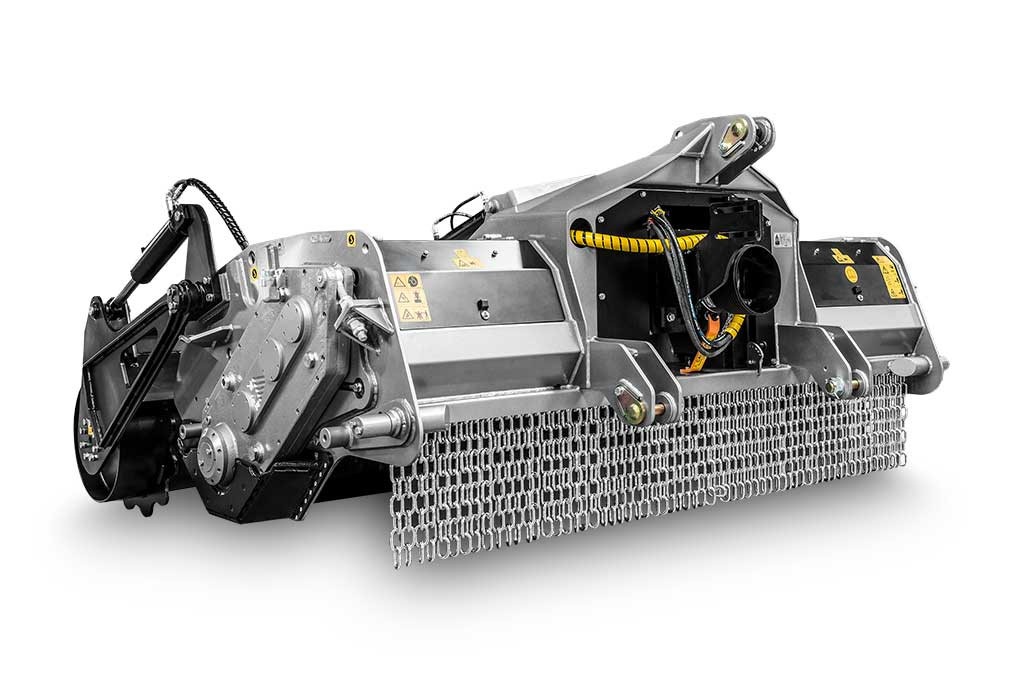

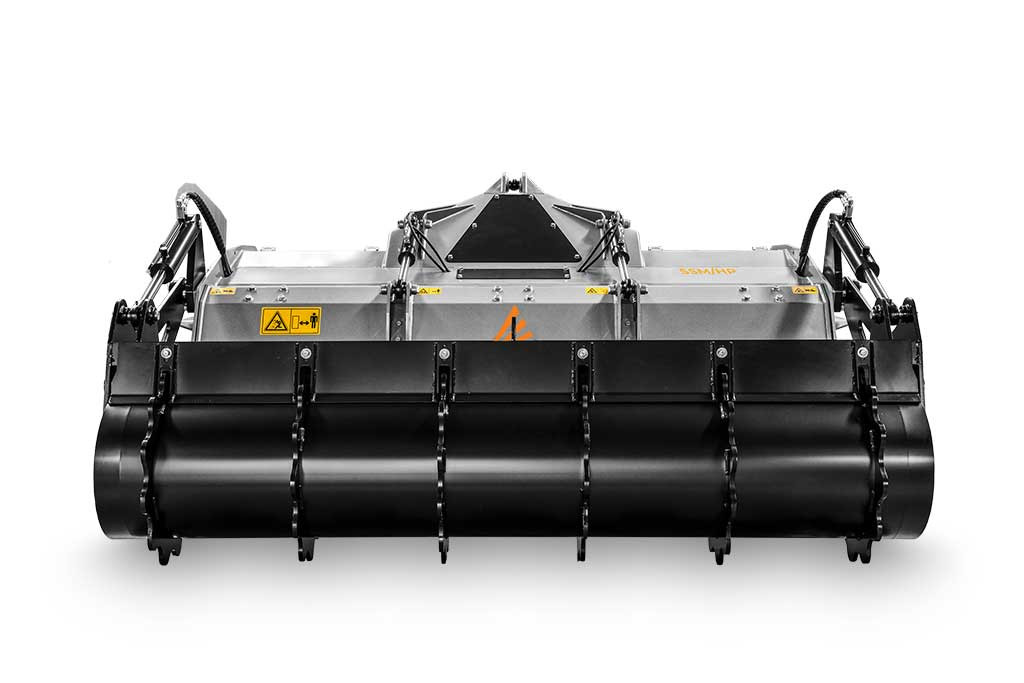

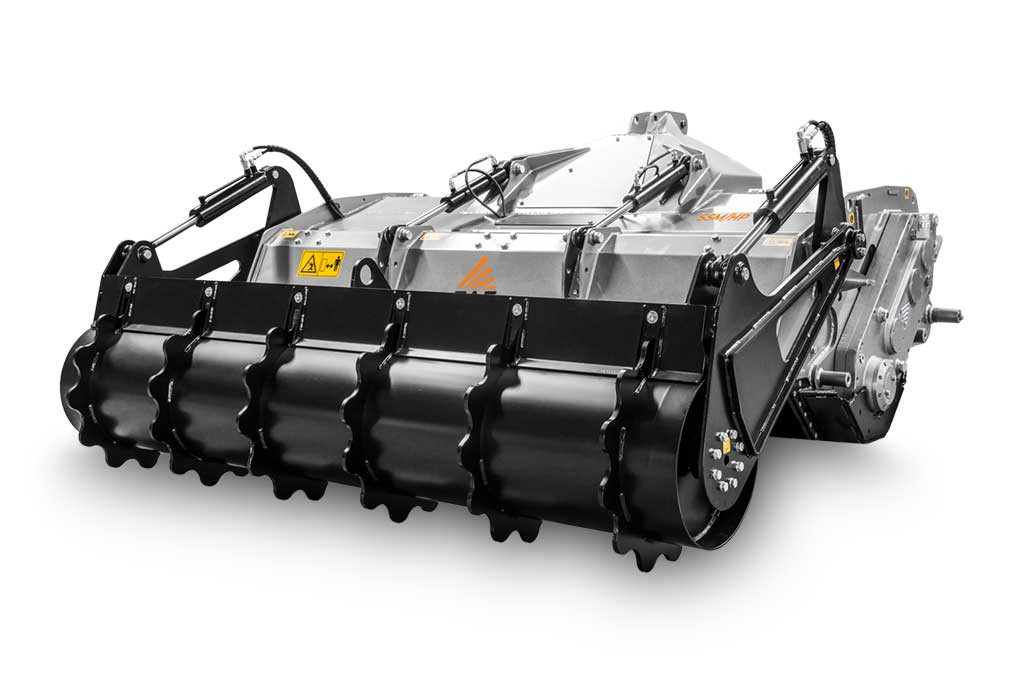

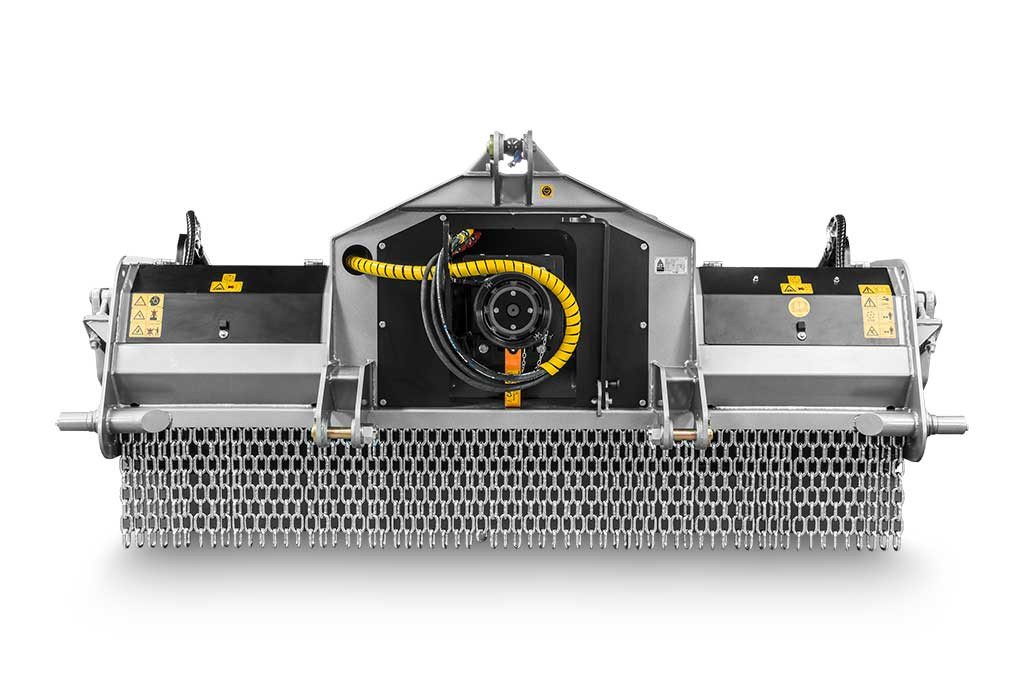

SSM
Available in the following versions: SSM, SSM/HP

The SSM has been designed and built to be used with medium to high-power tractors (170 to 250 hp).
It clears land perfectly, shredding logs up to 20 inches in diameter at a max. depth of 16 in.
SSM also comes in an HP model for tractors up to 300 hp.
Both models can be equipped with Standard or Heavy Duty teeth to work in different soils and ensure the superb performance required to meet different needs.
Available options include an adjustable hood grille, leveling blade and rear roller for professional results.

Engine

from 170 to 300 hp

Shredding diameter

Ø 20 in max

Working depth

16 in max

Most important features
Interchangeable protection chains with safely deflects debris

limit the escape of the shredded material

Standard equipment

    • Hydraulic rear hood
    • Enclosed, dust-resistant machine body
    • Adjustable Hardox® counter blade
    • Interchangeable protection chains
    • Transmission with side gearbox
    • Freewheel gearbox
    • Side PTO shafts with friction clutches
    • Central PTO shaft with cam clutch
    • PTO shaft support for machine at rest
    • Z style self-aligning system
    • Interchangeable forged steel rotor shafts
    • Wear-resistant side plates
    • Side gearbox cooling system
    • Hydraulic top link cylinder

Original FAE tools

Unmatched performance
Tooth A/3 | FAE
Tooth A/3
standard
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches
Tooth A/3/HD | FAE
Tooth A/3/HD
optional
Ideal for:
Hardwood trees
Exposed stumps
Buried stumps
Peaty soil
Low rock content
Bushes and branches
Tooth F/3 | FAE
Tooth F/3
optional
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Low rock content
Tooth MH/3 (L)
standard
Side scraper
Tooth MH/3 (R)
standard
Side scraper

Options

Multiple tooth options | FAE
Multiple tooth options
W style self-aligning system
Dozing blade | FAE
Dozing blade
Support roller PML/EX
Support roller
Adjustable hood grille |FAE
Adjustable hood grille
Technology
Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >
