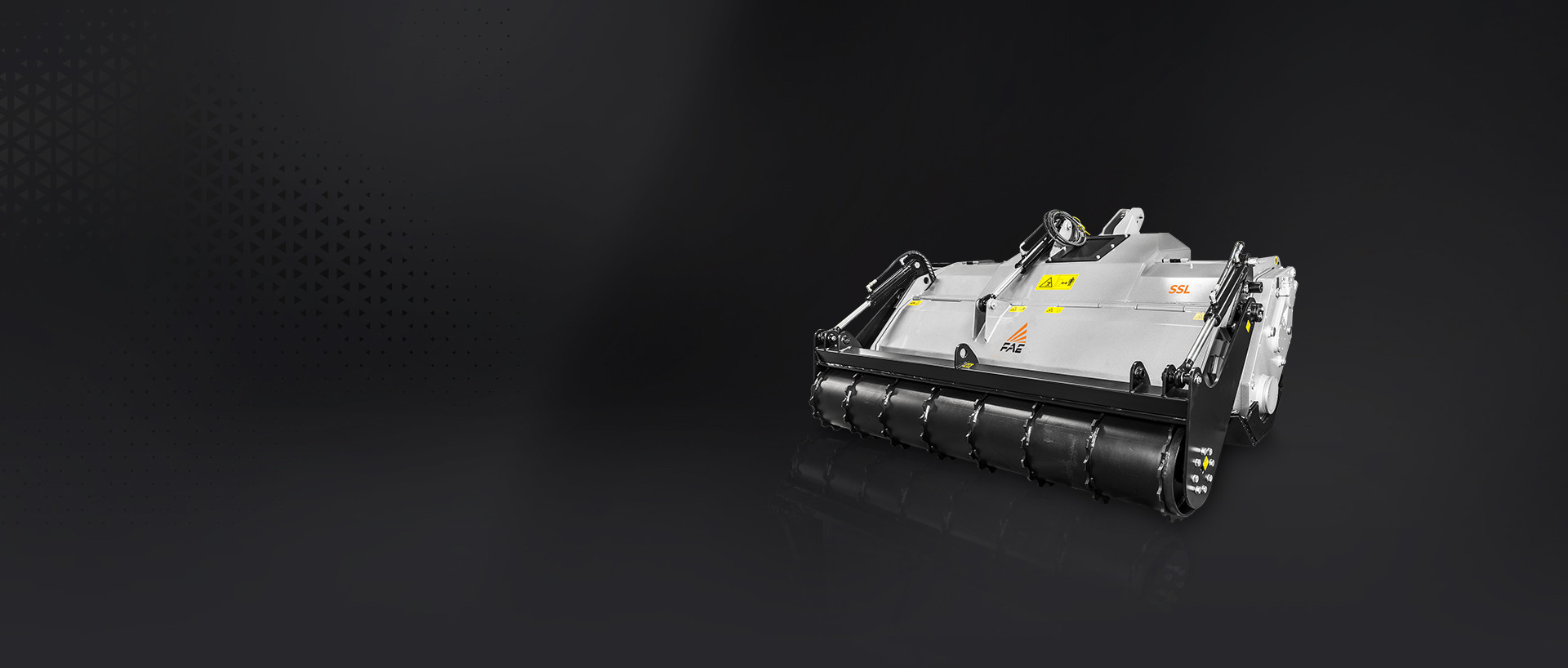

SSL, forestry tillers from 100 to 220 hp
Tillers for Tractors

Forestry tiller for PTO tractors with fixed teeth rotor.

SSL

from 100 to 220 hp

SSL
Forestry tiller for PTO tractors with fixed teeth rotor.
Request information
Technical data sheet
SSL, fresa per trattori con rotore a utensili fissi - 1
SSL, forestry tiller for PTO tractors with fixed teeth rotor
SSL, forestry tiller for PTO tractors with fixed teeth rotor - 3
SSL, forestry tiller for PTO tractors with fixed teeth rotor - 4
SSL, forestry tiller for PTO tractors with fixed teeth rotor - 5
SSL, forestry tiller for PTO tractors with fixed teeth rotor - 6
Tillers for Tractors
SSL
Available in the following versions: SSL, SSL/DT

This is the smallest model in FAE’s line of Forestry Tillers.
Thanks to its low weight and multiple working width options, the SSL fits a wide range of tractors.
The transmission with side gearbox allows the rotor to spin at a lower rpm than a traditional belt driven mulcher.
This makes the transmission much more reliable, and ensures a deep, consistent grinding while also lowering tool wear.

Read more
Request information
Technical data sheet
Engine

from 100 to 220 hp
Shredding diameter

Ø 12 in max
Working depth

12 in max
Most important features
Dual transmission with side gearbox

converts RPM to Power

Applications:

SSL
SSL, forestry tillers that guarantee homogeneous milling in depth
SSL, forestry tiller with reduced tool wear even in abrasive soils
SSL, tiller with gear transmission that allows the rotor to work even at a lower speed
SSL, forestry tillers for soil mixing, agricultural remediation and plantation maintenance
SSL, light weight tiller available in various widths

Standard equipment

    • Hydraulic rear hood
    • Enclosed, dust-resistant machine body
    • Adjustable Hardox® counter blade
    • Interchangeable protection chains
    • Freewheel gearbox
    • Transmission with side gearbox
    • Central PTO shaft with cam clutch
    • PTO shaft support for machine at rest
    • Side PTO shafts with friction clutches (SSL/DT)
    • Interchangeable forged steel rotor shafts
    • Rotor with teeth B/3
    • Wear-resistant side plates

Original FAE tools

Unmatched performance
Tooth B/3 | FAE
Tooth B/3
standard
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches
Tooth B/3/HD| FAE
Tooth B/3/HD
optional
Ideal for:
Hardwood trees
Exposed stumps
Buried stumps
Peaty soil
Low rock content
Bushes and branches
Tooth G/3/HD | FAE
Tooth G/3/HD
optional
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Stone crushing
Tooth G/3| FAE
Tooth G/3
optional
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Stone crushing
Side scraper C/3/SS (L) | FAE
Tooth C/3/SS (L)
standard
Side scraper
Side scraper C/3/SS dx | FAE
Tooth C/3/SS (R)
standard
Side scraper

Options

Multiple tooth options | FAE
Multiple tooth options
Hydraulic support roller | FAE
Hydraulic support roller
Hydraulic top link cylinder | FAE
Hydraulic top link cylinder
Push frame for roller | FAE
Push frame for roller
Central PTO shaft yoke
Technology
Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >

Request information
