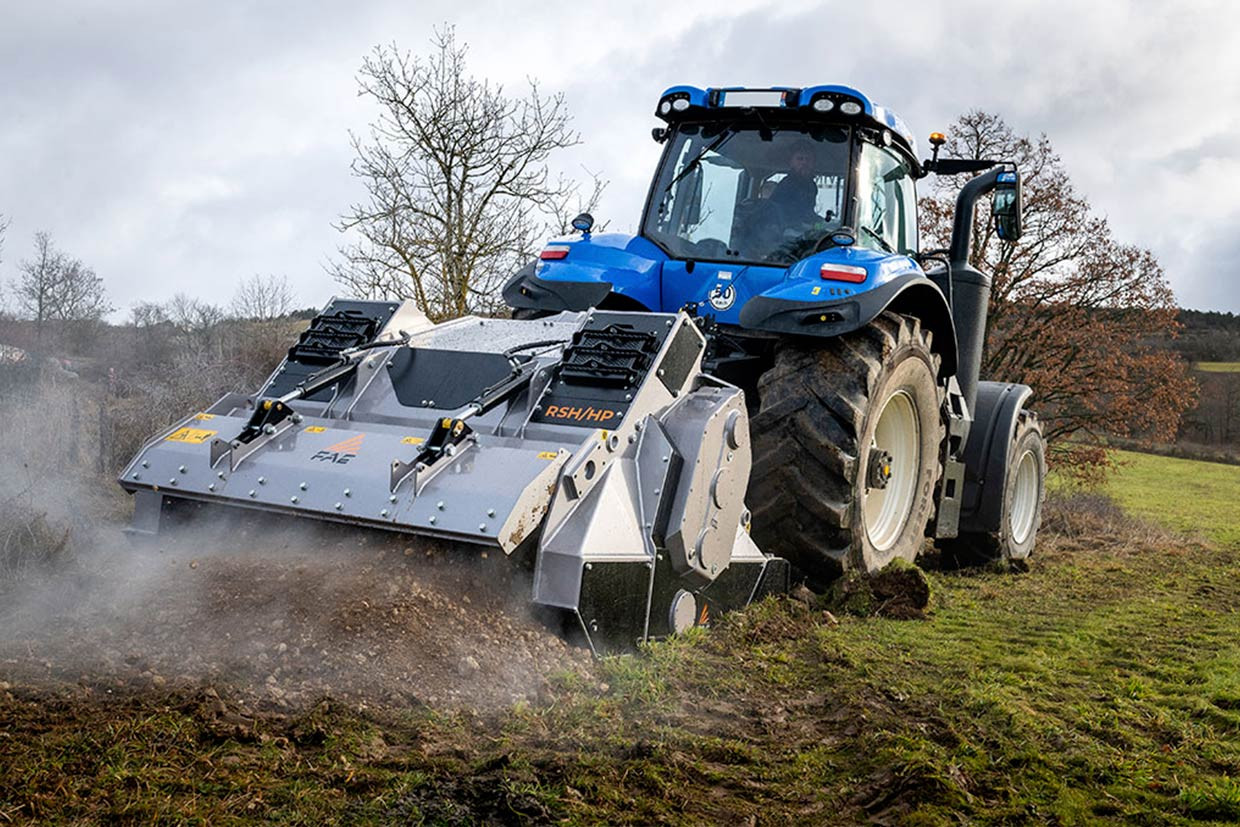

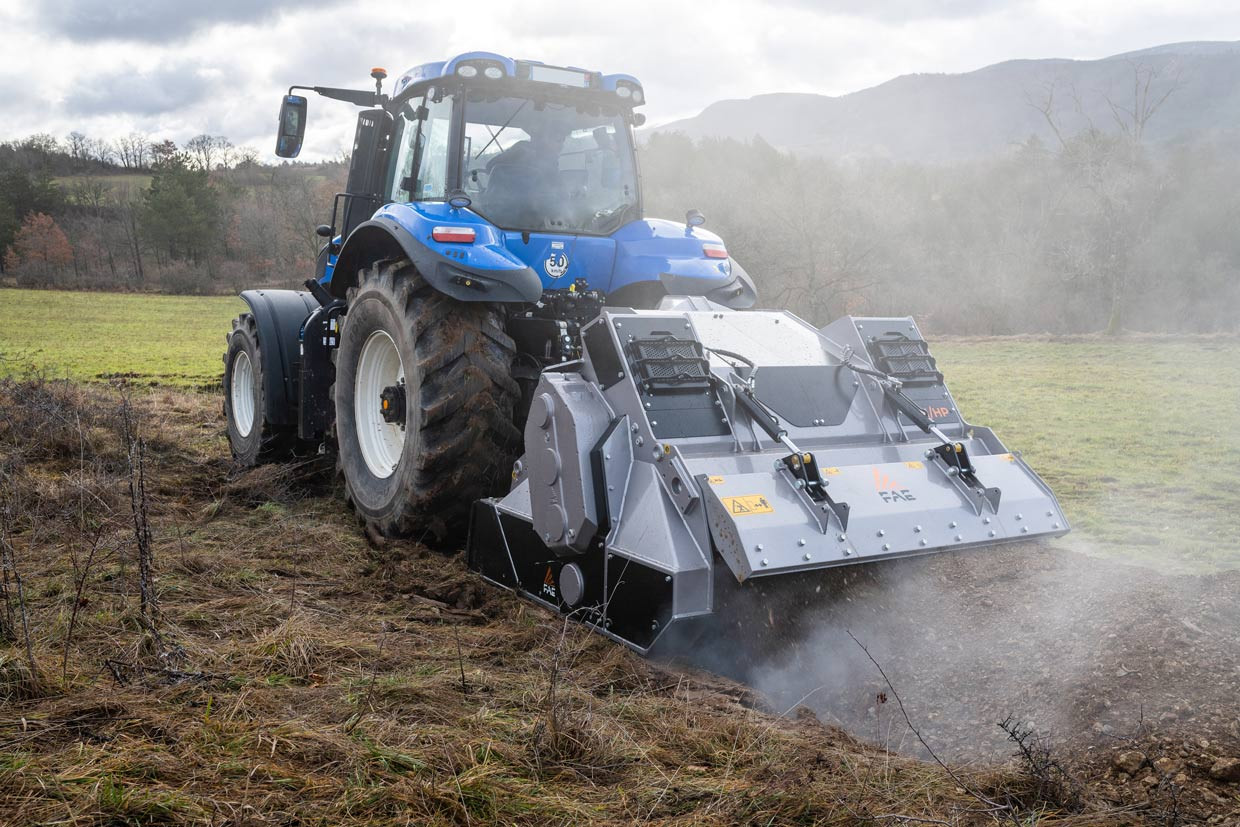

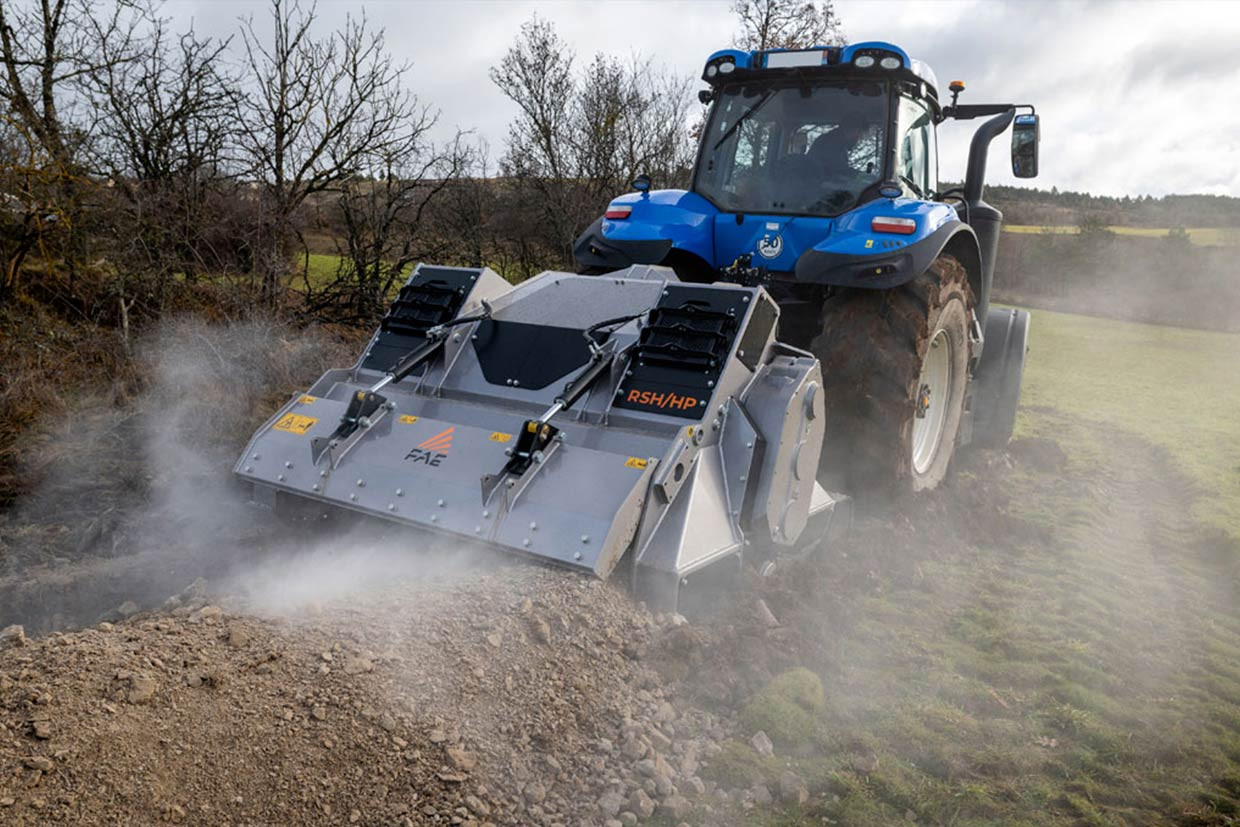

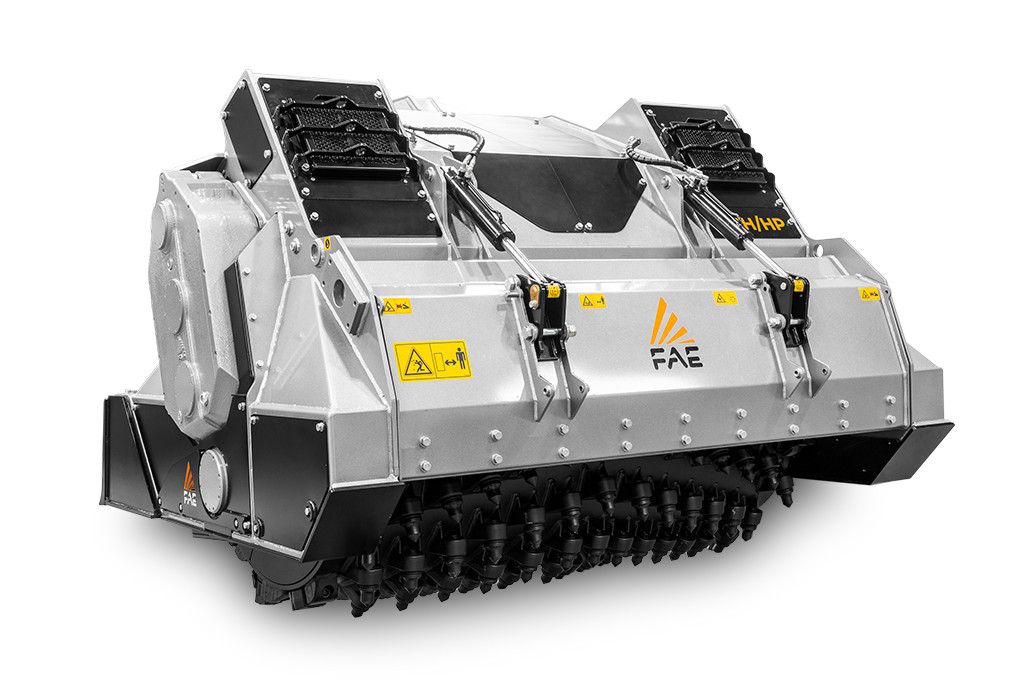

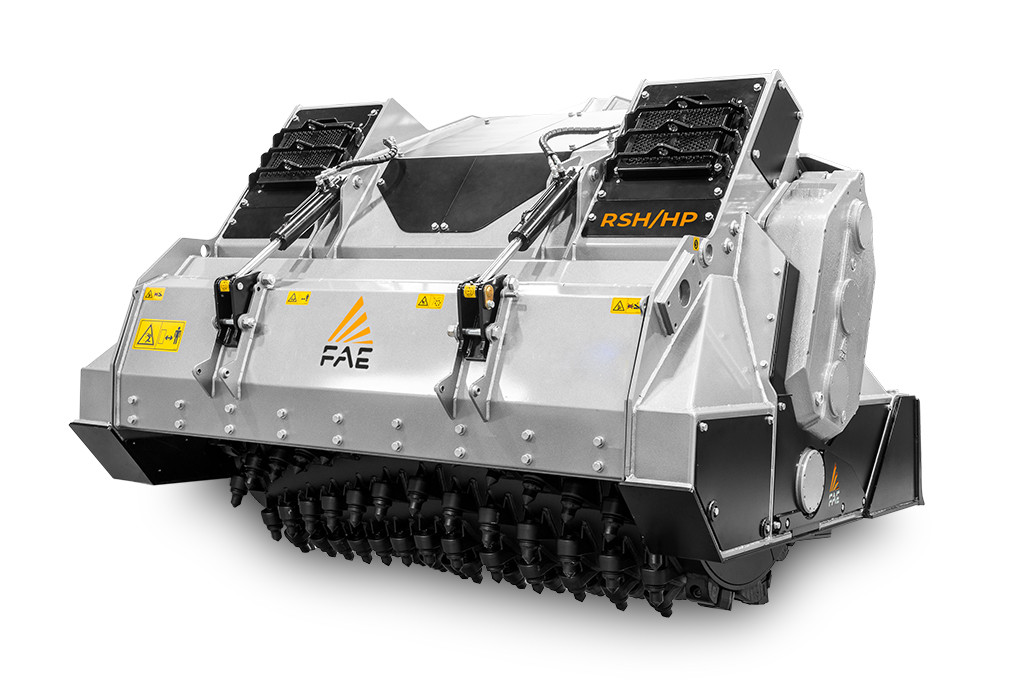

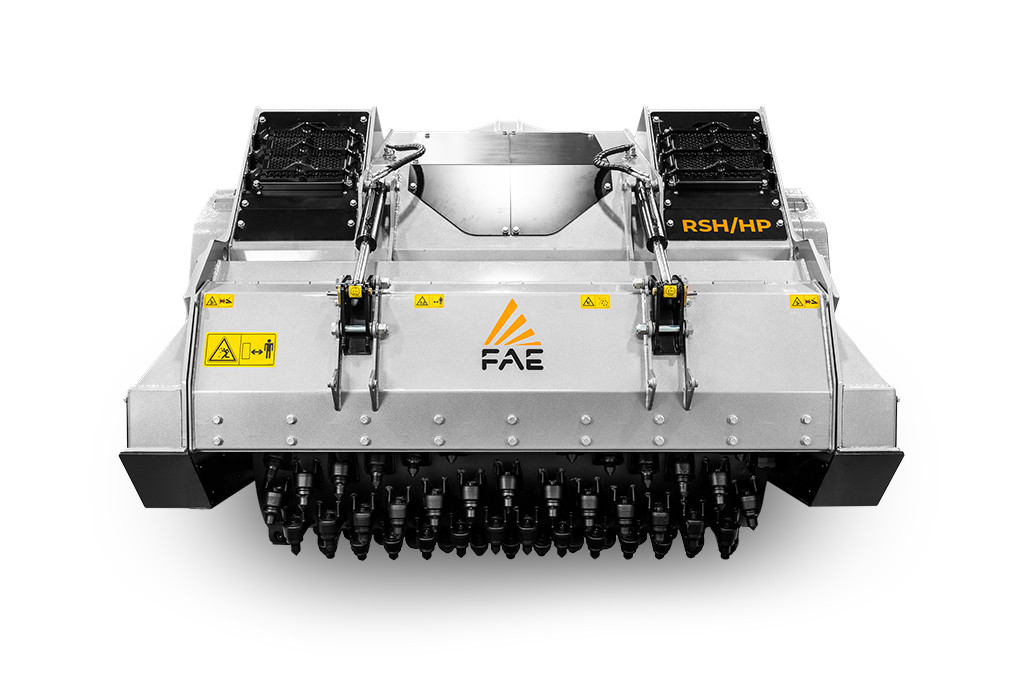

The RSH/HP is the ultimate FAE stone crusher, the ideal solution for crushing slabs of rock and stones of up to 50 cm in diameter and at a depth of up to 50 cm. It is compatible with tractors of between 360 and 500 HP, and has a working width of 260 cm.

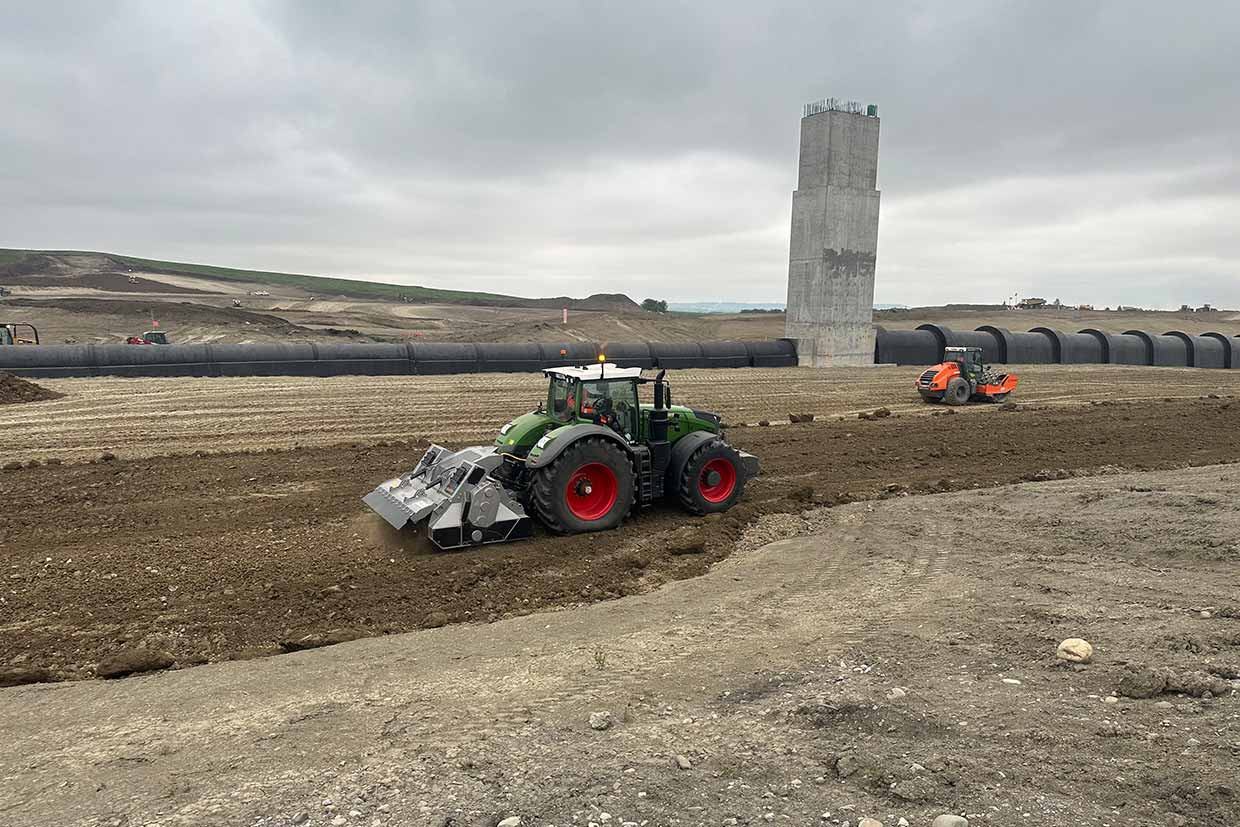

The RSH/HP is recommended for challenging agricultural conversion operations, when the land contains rock and stones of significant dimensions, in order to prepare the soil for agricultural use.

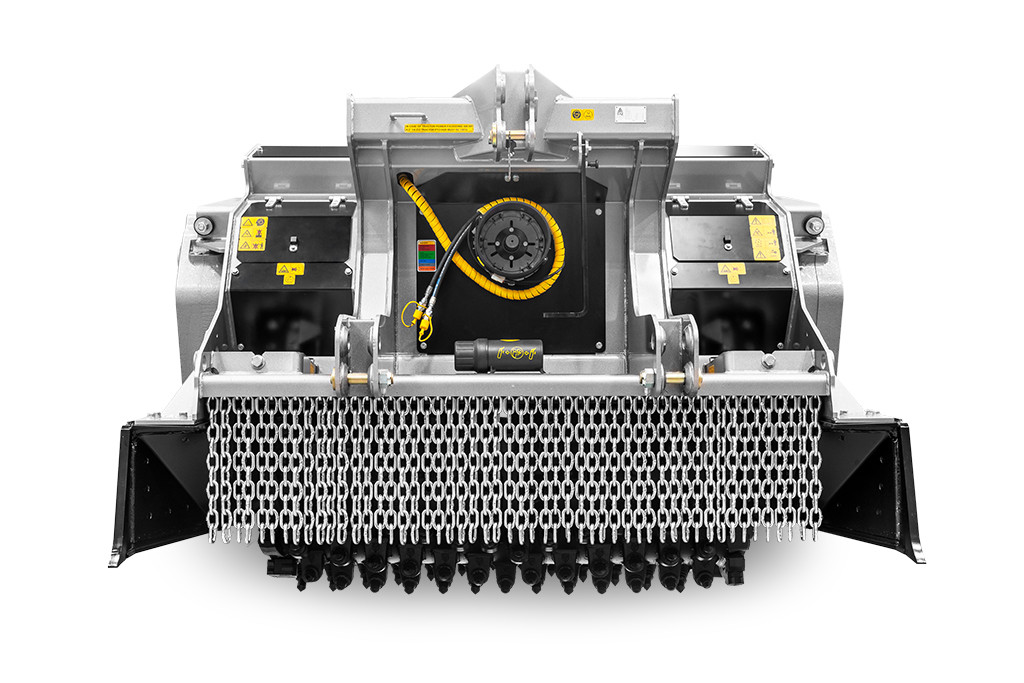

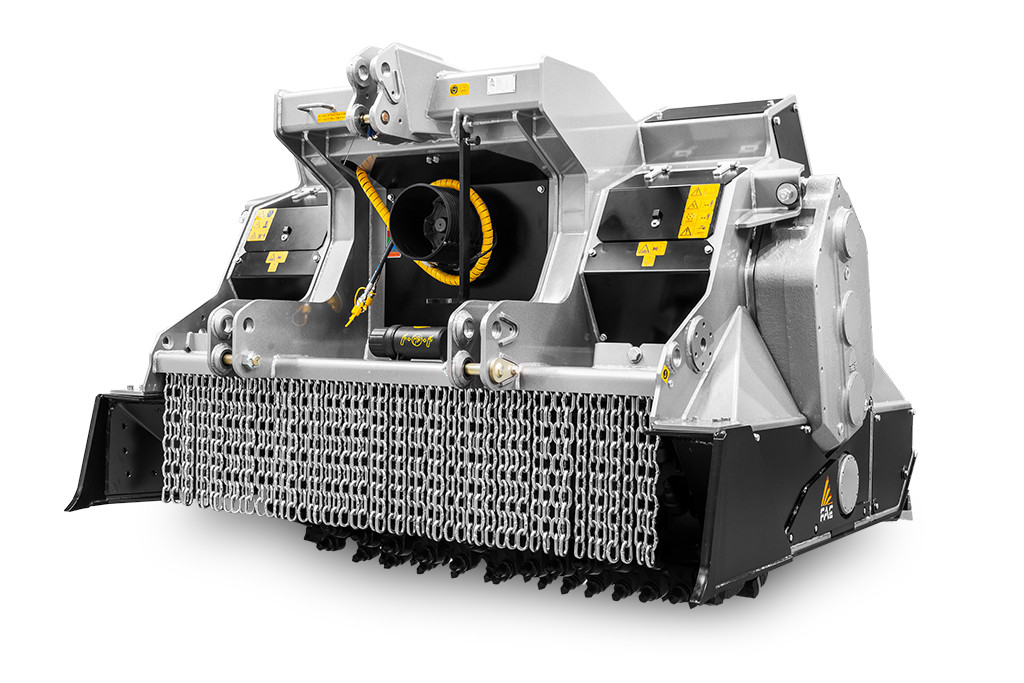

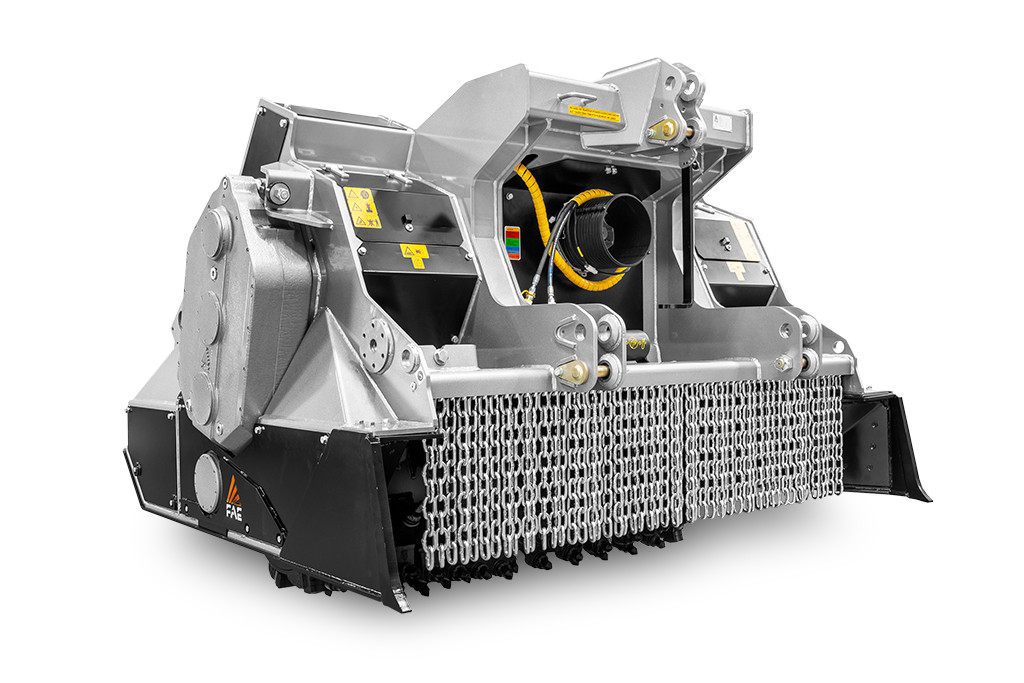

The wide opening and the counter blade allow large material to be guided towards the rotor, as well as maintaining consistent performance while working the land. The optional rear grill holds back larger materials, releasing matter only when it has reached its optimum granulometry. For an excellent, even distribution of the crushed material, the RSH/HP can be fitted with an adjustable steel dosing blade upon request.

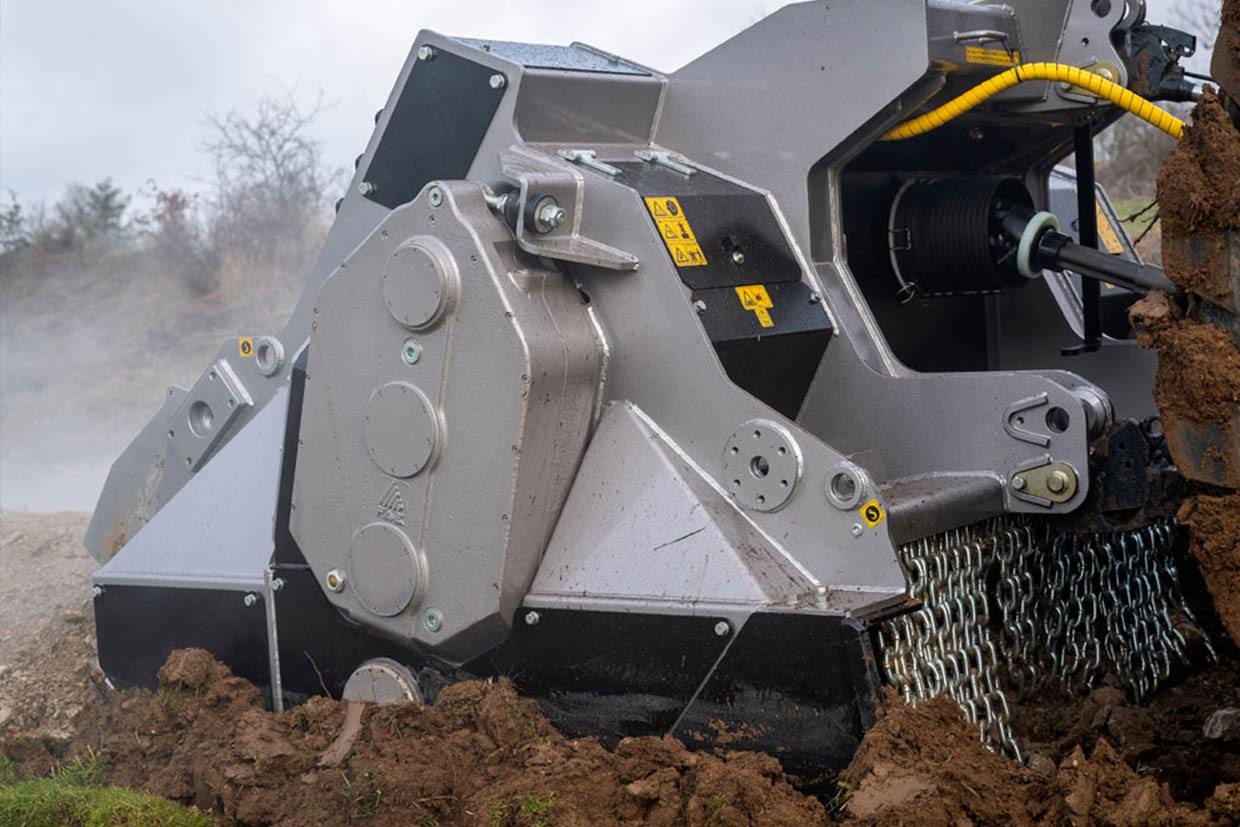

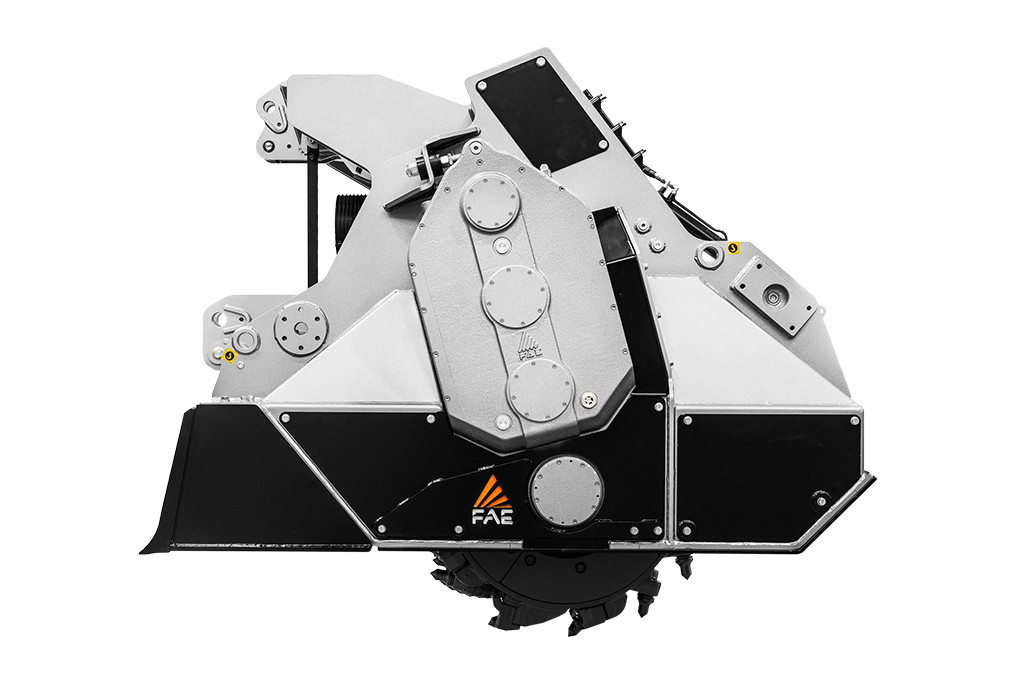

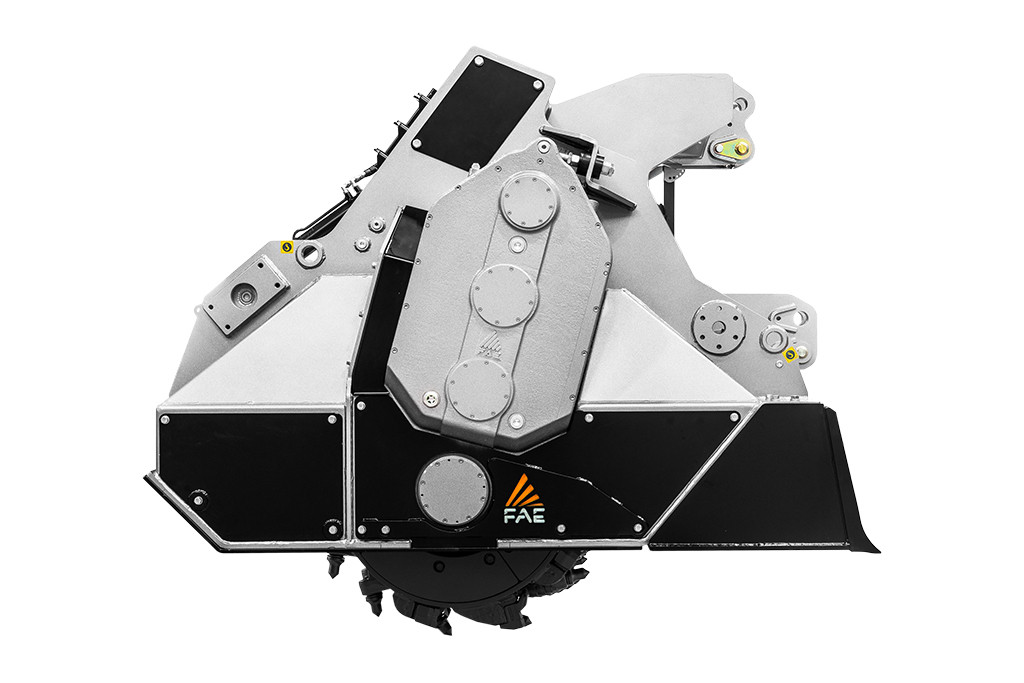

The side reduction gears with an oil-cooling system guarantee efficiency, reliability and reduced maintenance requirements. The gear transmissions guarantee optimum power transfer and, as a result, a longer lifespan for the components.
The use of high-resistance, anti-wear steels for the frame, the interchangeable internal and external guards, and the forged-steel tooth-holder with heat treatment all guarantee the RSH/HP a robust construction that has nothing to fear from even the most challenging tasks.
The RSH/HP stone crusher is available with two types of rotor: type “R” holds teeth with a round tang and is ideal for crushing loose stones and rock; while type “G” is ideal for lands where stones emerge. Both rotors come with side teeth which allow the crushing chamber to be kept clean at all times.
The offer is completed by 4 different types of teeth, to be chosen based on the nature of the work and the rotor attached.
from 360 to 500 hp
Ø 50 cm max
50 cm max
To efficiently process more material
Maximum strength and durability in heavy duty operations
Quick and easy maintenance
Maximum productivity and efficiency maintained in all working conditions.
