UMM/S - UMM/S/HP, forestry mulchers from 180 to 350 hp
Mulchers for Tractors

Forestry mulchers for PTO tractors with fixed tooth rotor.

UMM/S

from 180 to 350 hp

UMM/S
Forestry mulchers for PTO tractors with fixed tooth rotor.
Request information
Technical data sheet
Imperial data sheet

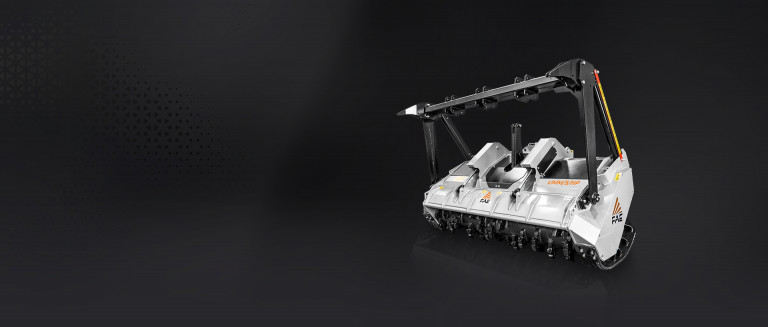

UMM/S - UMM/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 1
UMM/S - UMM/S/HP, forestry mulcher for tractor, with fixed tooth rotor
UMM/S - UMM/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 3
UMM/S - UMM/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 4
UMM/S - UMM/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 5
UMM/S - UMM/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 6
Mulchers for Tractors
UMM/S
Available in the following versions: UMM/S, UMM/S/HP

High productivity, robustness and maneuverability are the main strengths of this mulcher with a fixed rotor system.
The UMM/S is a very versatile model for tractors between 180 and 350 hp.
It has a mulching capacity of up 35 cm diameter material.
The well distributed weight allows for great maneuverability also in steep and sloppy applications.
The alignment PTO system “W” connected to the central gearbox, allows for a wider working angle of the PTO shaft in all working conditions.
This new model features the new counter-blade Spike PRO as standard equipment.

Read more
Request information
Technical data sheet
Imperial data sheet
Tractor

from 180 to 350 hp
Shredding diameter

Ø 35 cm max
Most important features
SPIKE PRO COUNTER-BLADES

FINER PRODUCT SIZE OF THE MULCHING MATERIALS

Applications:

UMM/S
UMM/S - UMM/S/HP, forestry mulcher with a fixed rotor system
UMM/S - UMM/S/HP, versatile mulcher model for tractors from 180 to 350 hp
UMM/S - UMM/S/HP, mulcher for shredding plants and shrubs with trunks up to 35 cm in diameter
UMM/S - UMM/S/HP, modello di trincia che dispone di controlame Spike PRO di serie
UMM/S - UMM/S/HP, mulcher for tractor with low weight, which makes it easy to handle even on sloping ground
UMM/S - UMM/S/HP, mulcher with adjustment system that ensures a wider working angle of the cardan in all operating conditions
UMM/S - UMM/S/HP, forest mulcher with “W” type parallelism adjustment system
UMM/S - UMM/S/HP, forestry mulcher with hydraulic pipes integrated into the frame

Standard equipment

    • Enclosed, dust-resistant machine body
    • Supporting leg
    • Interchangeable bolt-on Spike PRO counter blades
    • Bolt-on interchangeable protection chains
    • Trapezoidal belts transmission
    • Freewheel gearbox
    • Central PTO shaft with cam clutch
    • PTO shaft support for machine at rest
    • Z style self-aligning system
    • Adjustable 3-point linkage
    • Adjustable skids
    • Interchangeable forged steel rotor shafts
    • Rotor with teeth C/3
    • Rotor with teeth B/3
    • Hydraulic top link cylinder
    • Hydraulic rear hood

Original FAE tools

Unmatched performance
Tooth B/3 | FAE
Tooth B/3
standard
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches
Tooth C/3 | FAE
Tooth C/3
standard
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches
Tooth B/3/HD| FAE
Tooth B/3/HD
optional
Ideal for:
Hardwood trees
Exposed stumps
Buried stumps
Peaty soil
Low rock content
Bushes and branches
Tooth C/3/HD | FAE
Tooth C/3/HD
optional
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches
Tooth K/3 | FAE
Tooth K/3
optional
Ideal for:
Exposed stumps
Buried stumps
Low rock content
Side scraper C/3/SS (L) | FAE
Tooth C/3/SS (L)
standard
Side scraper
Side scraper C/3/SS dx | FAE
Tooth C/3/SS (R)
standard
Side scraper

Options

Hydraulic clutch transmission | FAE
Hydraulic clutch transmission (UMM/S-225-250, UMM/S/HP-225-250)
Multiple tooth options | FAE
Multiple tooth options
W style self aligning device between PTO drive shaft/gearbox | FAE
W style self-aligning system
Special skids to go underground | FAE
Skids to go underground
Hydraulic push frame | FAE
Guard frame hydraulic control
Plates for bolt-on protection chains | FAE
Plates for bolt-on protection chains
Hydraulic push frame with teeth setup | FAE
Hydraulic push frame with teeth setup
Central PTO shaft yoke
Ripper teeth for felling | FAE
Extra ripper for push frame
Technology
Spike Pro

Spike Pro: the counter blades that help FAE forestry mulchers handle any kind of vegetation more efficiently. Spike Pros are interchangeable offset counter blades for finer shredding and smoother flow of wet material. The special design makes them efficient with very stiff wood and more flexible shrubs.

Find out more >

Technology
Hydrodynamic joints

Hydrodynamic joints are hydrokinetic transmissions that provide more efficient power management. They allow the rotor to start up gradually, even when under stress, while simultaneously absorbing recoil coming from possible head overload. Hydrodynamic joints consist of two opposing rotors and hydraulic fluid that transfers motion.

Find out more >
