UMH/S - UMH/S/HP, forestry mulchers from 240 to 500 hp

Mulchers for Tractors

Forestry mulchers for PTO tractors with fixed tooth rotor.

UMH/S

from 240 to 500 hp

UMH/S

Forestry mulchers for PTO tractors with fixed tooth rotor.

Request information

Technical data sheet

Imperial data sheet

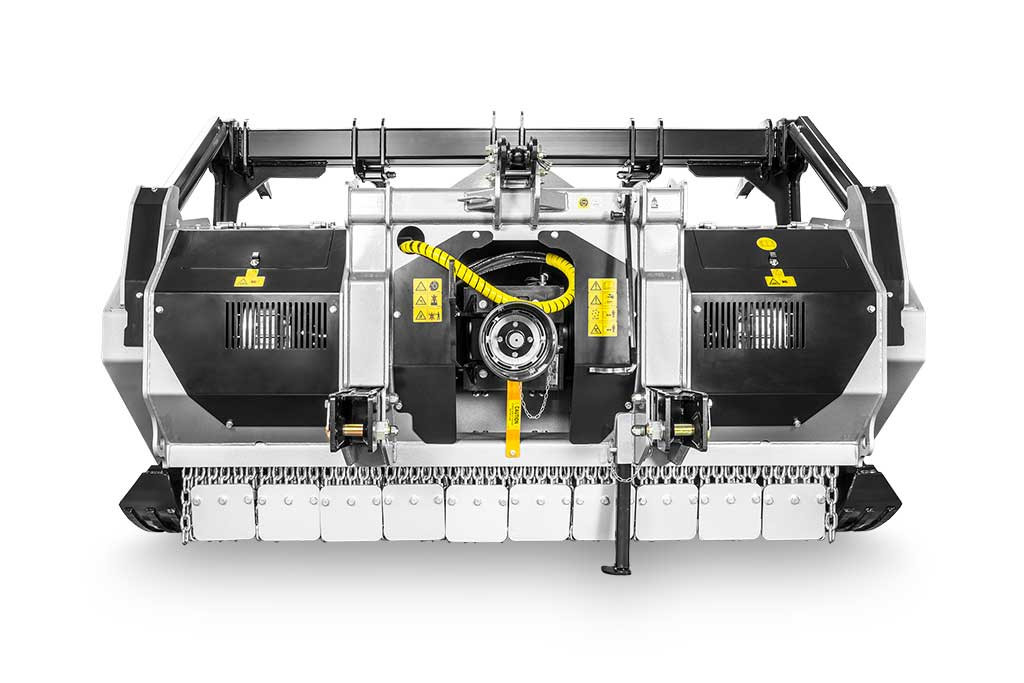

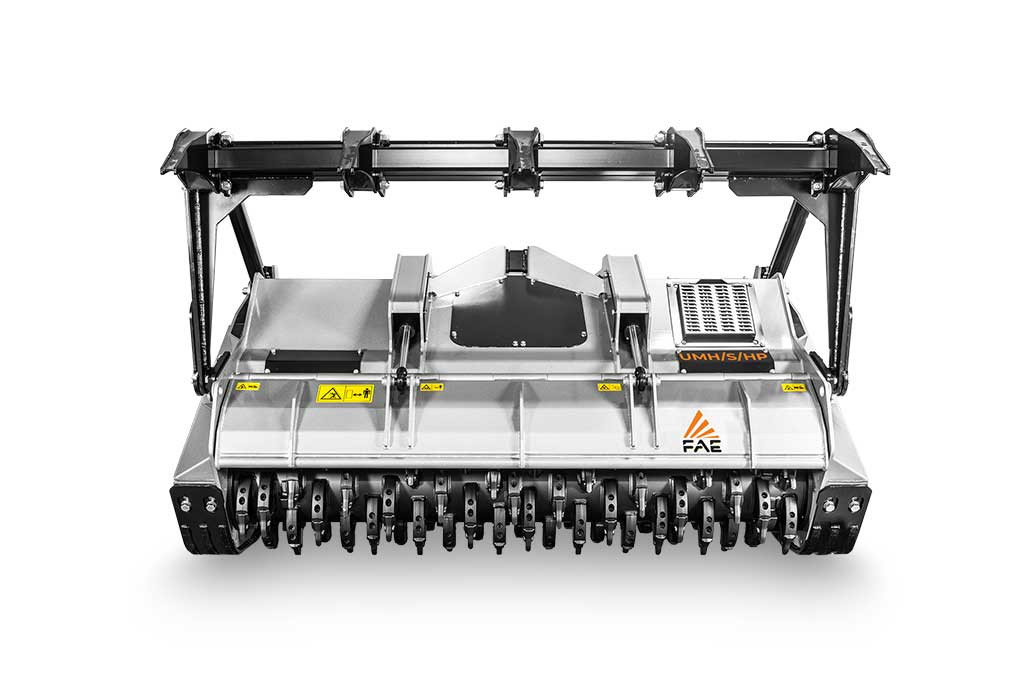

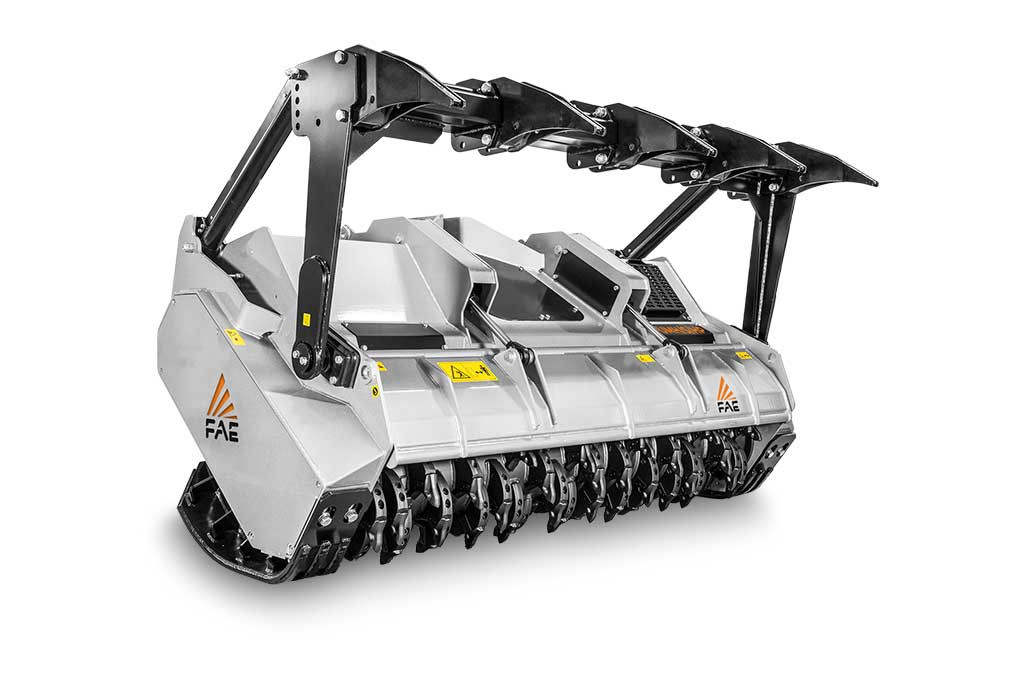

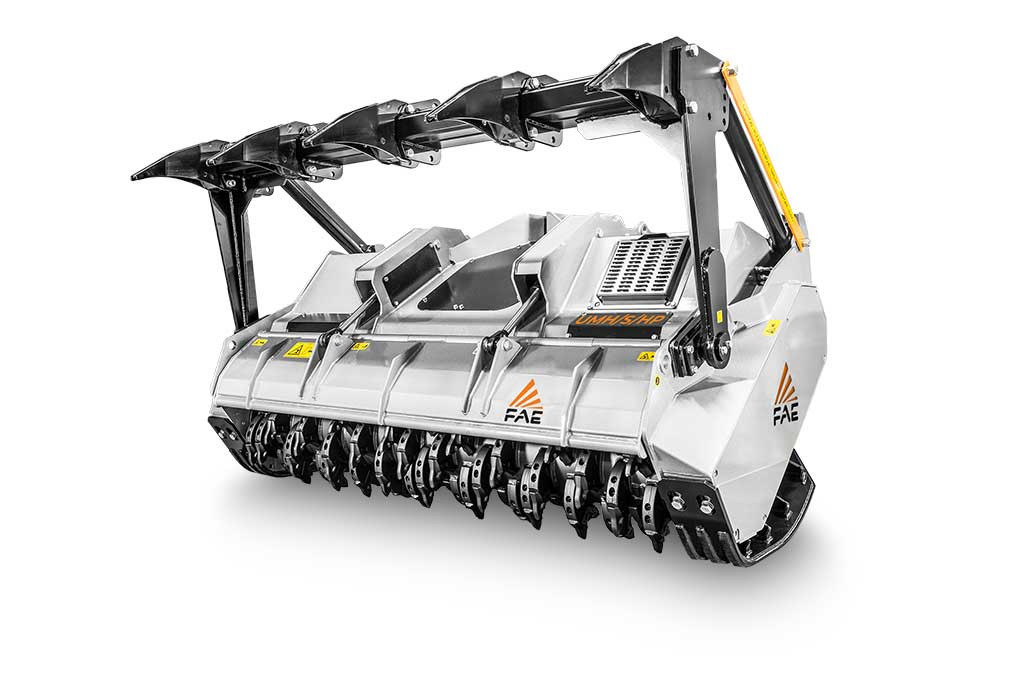

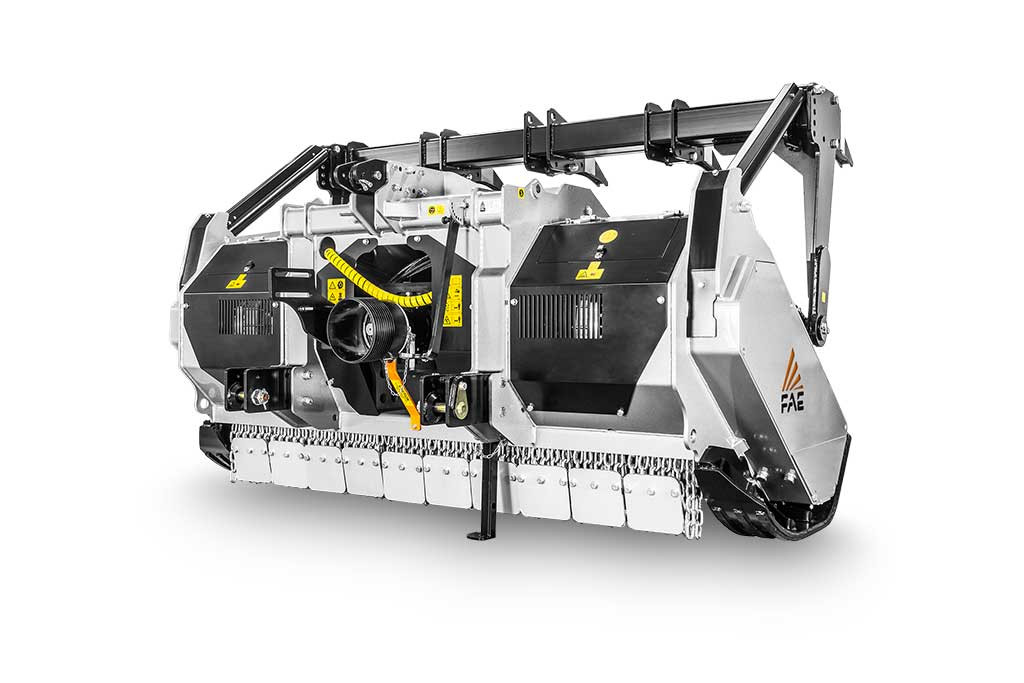

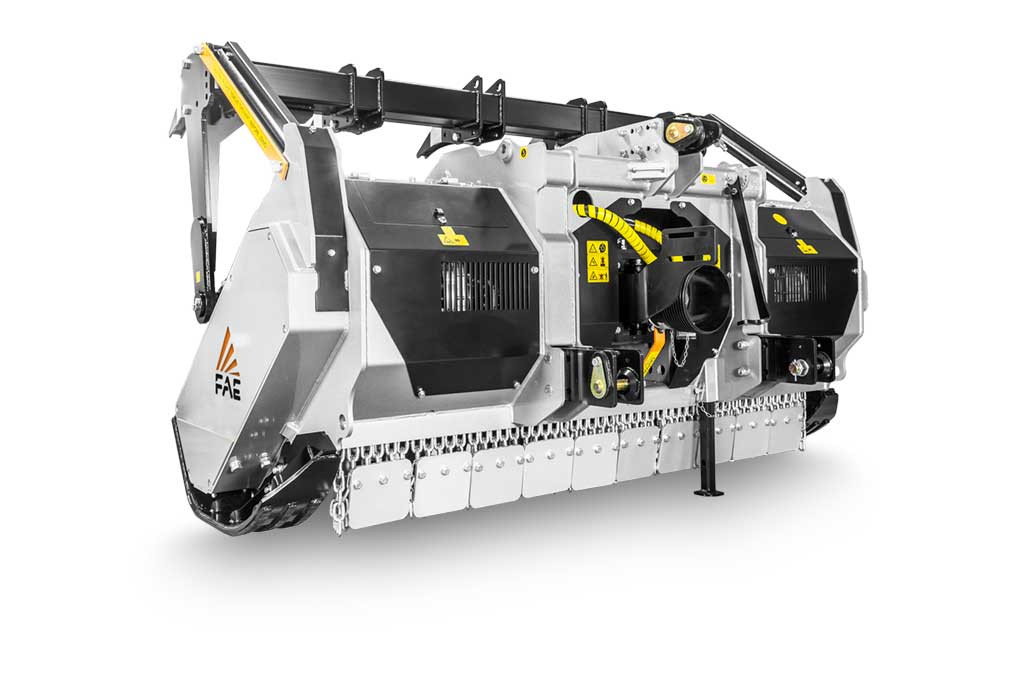

UMH/S - UMH/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 1

UMH/S - UMH/S/HP, forestry mulcher for tractor, with fixed tooth rotor

UMH/S - UMH/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 3

UMH/S - UMH/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 4

UMH/S - UMH/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 5

UMH/S - UMH/S/HP, forestry mulcher for tractor, with fixed tooth rotor - 6

Mulchers for Tractors

UMH/S

Available in the following versions: UMH/S, UMH/S/HP

The UMH is FAE’s top of the line tractor mounted forestry mulcher.
It is rated for trees up to 45 cm diameter and is designed to work with high horsepower tractors.
The hydrodynamic joints and the Spike Pro counter-blades guarantee optimal performance and productivity.
The ergonomics of the new, fully enclosed double layer “dustproof” frame is designed for maximum safety of the work and the operator.
Finally, the large diameter of the rotor and the new Spike Pro counter-blades provide excellent homogenous shredding results. Backed by FAE’s unparalleled engineering expertise, UMH/S/HP is built to last and delivers the maximum return on your investment.

Read more

Request information

Technical data sheet

Imperial data sheet

Tractor

from 240 to 500 hp

Shredding diameter

Ø 45 cm max

Most important features

SPIKE PRO COUNTER-BLADES

FINER PRODUCT SIZE OF THE MULCHING MATERIALS

Hydraulic clutch transmission (on request)

protects the transmission at PTO engagement for smooth starting and improves machine performance

Video Video Forestry mulching with Masey Ferguson 340 hp tractor

Video Video Forestry mulching with 370 hp Masey Ferguson tractor

Video Video Forestry mulcher on FAE tracked vehicle in clearing soil from stumps and shrubs

Applications:

UMH/S - UMH/S/HP, forestry mulchers for agriculture tilling and soil reclamation

UMH/S - UMH/S/HP, forestry mulchers for increasingly powerful tractors

UMH/S - UMH/S/HP, mulcher that guarantees optimal shredding of the material, in terms of homogeneity and continuity

UMH/S - UMH/S/HP, mulcher for tractors with large rotor diameter

UMH/S - UMH/S/HP, mulchers with completely closed double layer “dustproof” frame

UMH/S - UMH/S/HP, forestry mulchers that ensure high performance and maximum safety of work and operator

UMH/S - UMH/S/HP, long lasting and resistant mulcher model

UMH/S - UMH/S/HP, for shredding trees up to 40 cm in diameter

UMH/S - UMH/S/HP, the excellence of the wide range of FAE forestry mulchers

Standard equipment

- Hydraulic rear hood
- Enclosed, dust-resistant machine body
- Supporting leg
- Interchangeable bolt-on Spike PRO counter blades
- Bolt-on interchangeable protection chains
- Trapezoidal belts transmission (UMH/S)
- Freewheel gearbox
- Side PTO with cam clutch (UMH/S)
- PTO shaft support for machine at rest
- Z style self-aligning system
- Adjustable 3-point linkage
- Adjustable skids
- Interchangeable forged steel rotor shafts
- Rotor with teeth C/3
- Rotor with teeth A/3
- Wear-resistant side plates
- Hydraulic top link cylinder
- Central PTO shaft without cam clutch

Original FAE tools

Unmatched performance

Tooth A/3 | FAE

Tooth A/3

standard

Ideal for:

Hardwood trees

Exposed stumps

Bushes and branches

Tooth C/3 | FAE

Tooth C/3

standard

Ideal for:

Hardwood trees

Exposed stumps

Bushes and branches

Tooth MH (L) | FAE

Tooth MH (L)

standard

Ideal for:

Tooth A/3/HD | FAE

Tooth A/3/HD

optional

Ideal for:

Hardwood trees

Exposed stumps

Buried stumps

Peaty soil

Low rock content

Bushes and branches

Tooth C/3/HD | FAE

Tooth C/3/HD

optional

Ideal for:

Hardwood trees

Exposed stumps

Bushes and branches

Tooth K/3 | FAE

Tooth K/3

optional

Ideal for:

Exposed stumps

Buried stumps

Low rock content

Side scraper C/3/SS (L) | FAE

Tooth C/3/SS (L)

standard

Side scraper

Side scraper C/3/SS dx | FAE

Tooth C/3/SS (R)

standard

Side scraper

Side scraper MH (dx) | FAE

Tooth MH (R)

optional

Side scraper

Options

Hydraulic clutch transmission | FAE

Hydraulic clutch transmission (UMH/S)

Multiple tooth options | FAE

Multiple tooth options

W style self aligning device between PTO drive shaft/gearbox | FAE

W style self-aligning system

Special skids to go underground | FAE

Skids to go underground

Hydraulic push frame | FAE

Guard frame hydraulic control

Plates for bolt-on protection chains | FAE

Plates for bolt-on protection chains

Extra ripper for push frame | FAE

Extra ripper for push frame

Hydraulic push frame with teeth setup | FAE

Hydraulic push frame with teeth setup

Stronger transmission | FAE

Stronger transmission (UMH/S)

Technology

Spike Pro

Spike Pro: the counter blades that help FAE forestry mulchers handle any kind of vegetation more efficiently. Spike Pros are interchangeable offset counter blades for finer shredding and smoother flow of wet material. The special design makes them efficient with very stiff wood and more flexible shrubs.

Find out more >

Technology

Hydrodynamic joints

Hydrodynamic joints are hydrokinetic transmissions that provide more efficient power management. They allow the rotor to start up gradually, even when under stress, while simultaneously absorbing recoil coming from possible head overload. Hydrodynamic joints consist of two opposing rotors and hydraulic fluid that transfers motion.

Find out more >
