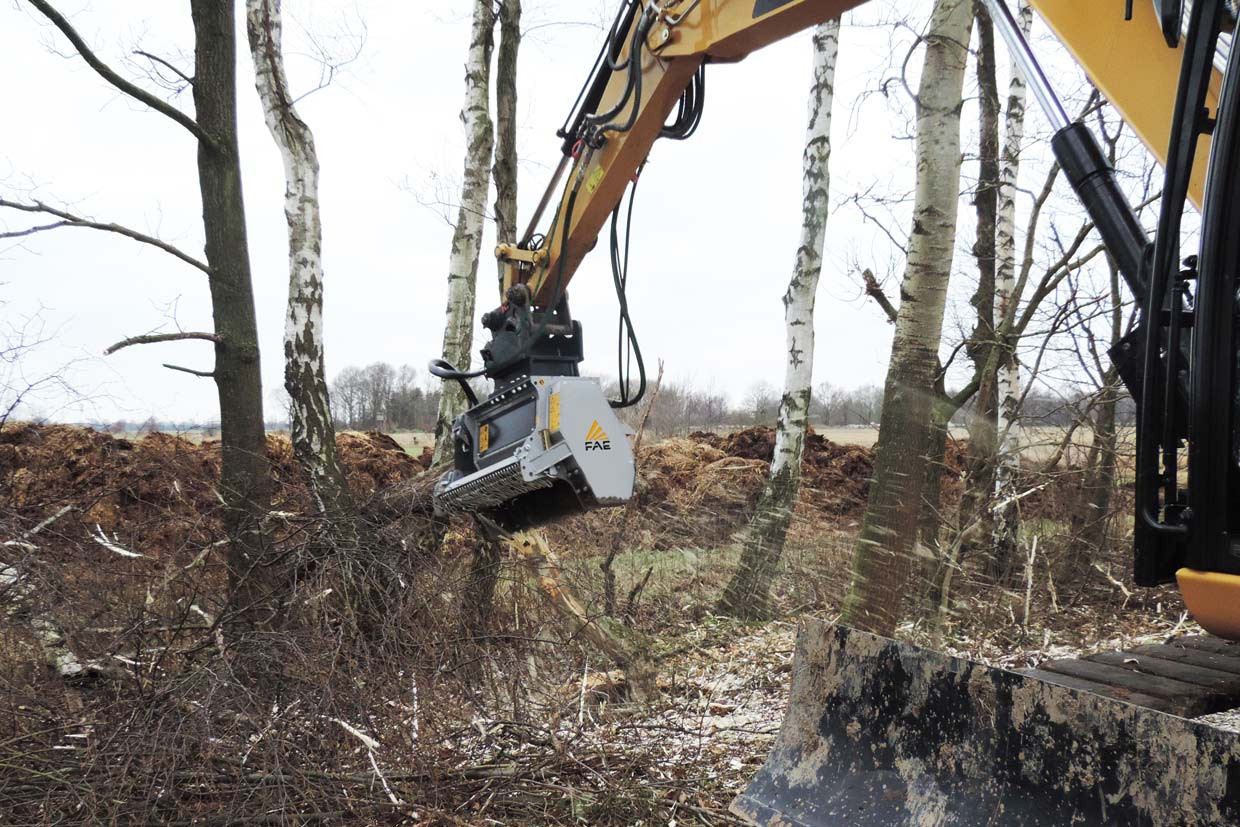

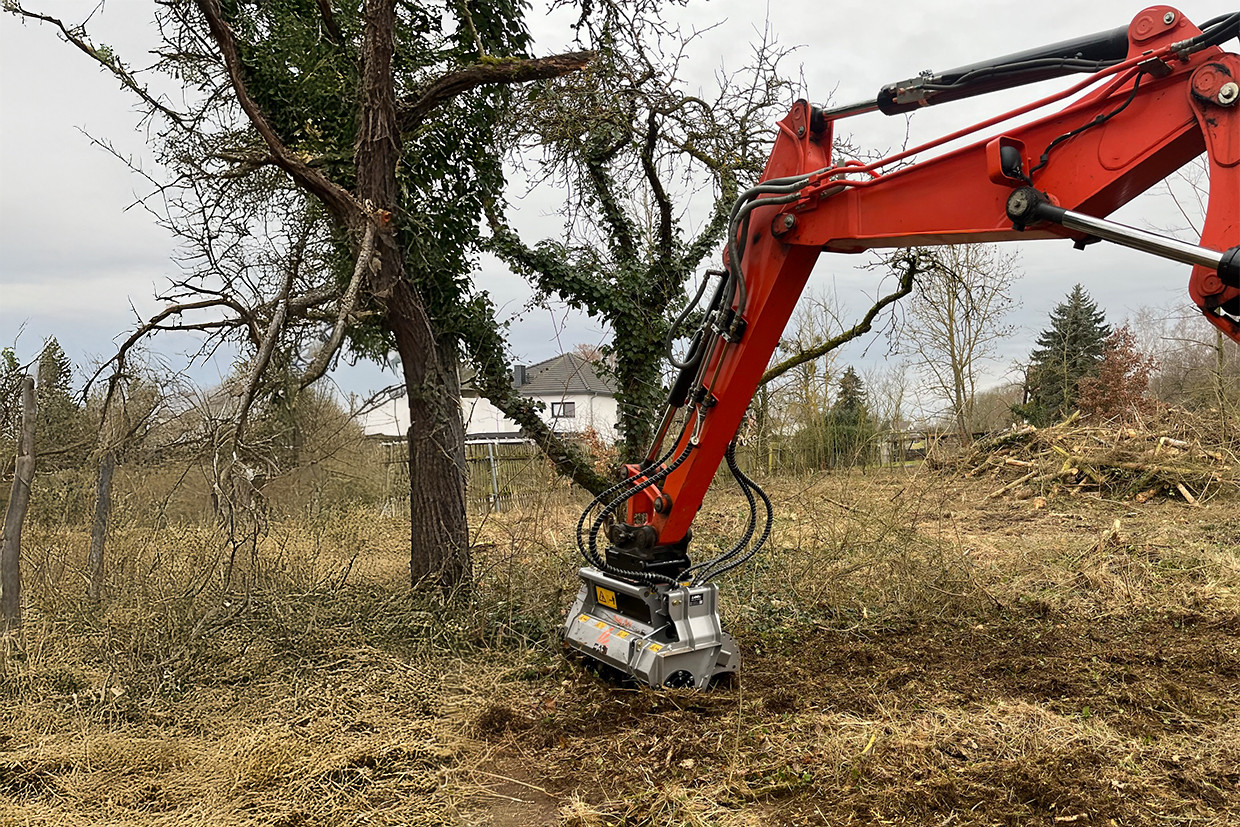

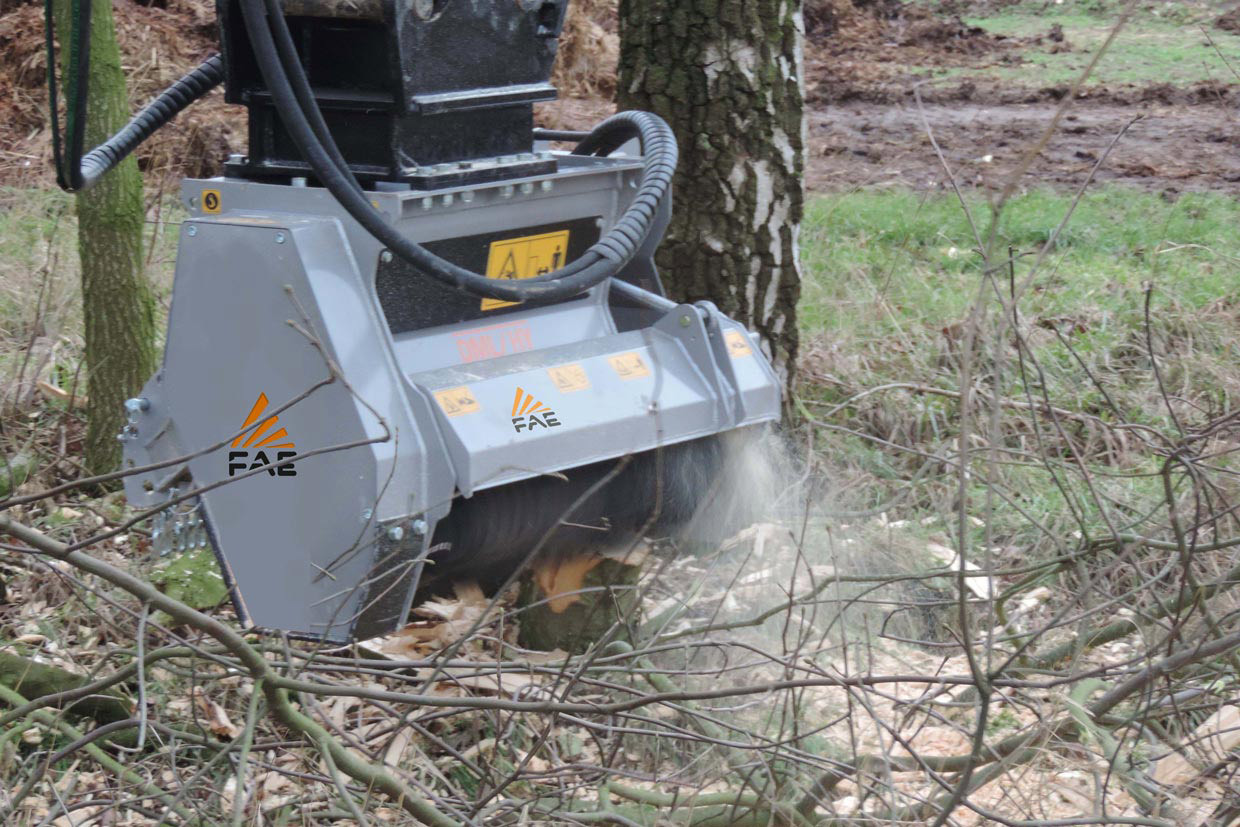

Mulchers for Excavators
DML/HY
Available in the following versions: DML/HY, DML/HY/VT

The DML/HY is the small, most versatile fixed hammer excavator mulcher on the market.
The VT automatic variable displacement hydraulic motor avoids any adjustment of the hydraulic levels on the excavator it is mounted too.
Both doors can be activated mechanically or hydraulically (optional) to allow for the mulching of trees (front door) and fine and fibrous material that does not require preventive removal (rear door).

Excavator weight

from 5 to 13 t

Shredding diameter

Ø 12 cm max

Flow rate

from 50 to 135 L/min

Most important features
Hydraulic rear Hood with anti-clogging system

for high productivity and lower fuel consumption

Flow control valve

protects the hydraulic motor

VT Motor

Automatic torque increase

Steel counter-blades

helps mulch material into a smaller final size

Standard equipment

    • Enclosed, dust-resistant machine body
    • Supporting leg
    • Motor enclosed in the frame
    • Interchangeable protection chains
    • Fittings for hydraulic connections
    • Welded counter blades
    • Trapezoidal belts transmission
    • 17-34 cchydraulic piston motor (DML/HY)
    • 55 cc VT hydraulic piston motor (DML/HY/VT)
    • Rear hood with mechanical adjustment
    • Front hood with mechanical adjustment
    • Flow Control valve with integrated relief and anti-cavitation valves
    • Interchangeable forged steel rotor shafts
    • Bite Limiter rotor with blades BL/MINI

Original FAE tools

Unmatched performance
Blade E | FAE
Blade E
standard
Ideal for:
Hardwood trees
Softwood trees
Bushes and branches
Blade E/HD | FAE
Blade E/HD
optional
Ideal for:
Hardwood trees
Softwood trees
Bushes and branches

Options

Hydraulic rear hood | FAE
Hydraulic rear hood
Bite Limiter Rotor | FAE
Bite Limiter Rotor
Multiple tooth options | FAE
Multiple tooth options
Diverter valve (plug in and play) | FAE
12V diverter valve
Customized attachment bracket with pins | FAE
Customized attachment bracket kit with customized pins
Attachment ear kit with custom-designed pins and support leg | FAE
Customized attachment bracket kit with customized pins and support leg
Customized setting hydraulic motor | FAE
Customized setting for hydraulic motor
Diverter valve (plug in and play) | FAE
24V diverter valve
Control box for diverter valve
32-65 cc hydraulic piston motor (DML/HY)
Hydraulically adjustable front hood
VT (Variable Torque) piston motor | FAE
Technology
VT (Variable Torque) piston motor

The VT (Variable Torque) piston motor significantly improves mulcher performance, increasing mulching torque when an extra boost of power is needed and minimizing the conditions for rotor stalling. The VT motor assists the operator with mulching, allowing for exceptional performance.
