The mulcher with Bite Limiter technology for large and midsize excavators.

Mulchers for Excavators

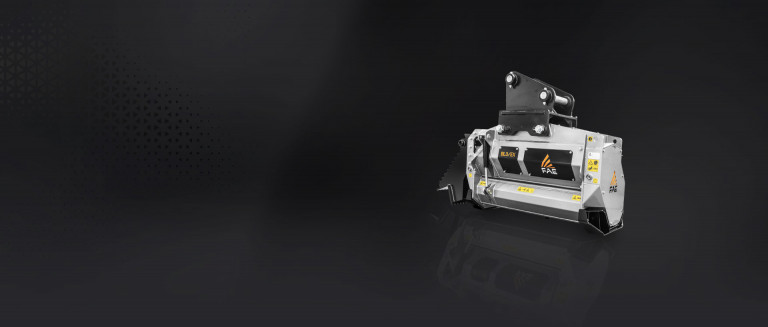

BL3/EX

Available in the following versions: BL3/EX/VT, BL3/EX/SONIC

BL3/EX/VT for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm.
The rotor features Bite Limiter technology.
Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance.
The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.
BL3/ EX/VT has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.

Read more

Request information

Technical data sheet

Imperial data sheet

Excavator weight

from 14 to 20 t

Shredding diameter

Ø 20 cm max

Flow rate

from 120 to 210 L/min

Most important features

Bite Limiter rotor

exceptional speed and performance with lower power requirement

SPIKE PRO COUNTER-BLADES

FINER PRODUCT SIZE OF THE MULCHING MATERIALS

Sonic (BL3/EX/SONIC)

Sonic is a new automatic intelligent system that manages the hydraulic transmission

Applications:

• Forestry maintenance
• Environmental, wildlife habitat protection & food plots

Standard equipment

• • Enclosed, dust-resistant machine body
  • Motor enclosed in the frame
  • Fittings for hydraulic connections
  • Interchangeable bolt-on Spike PRO counter blades
• • Adjustable skids
• • 12V diverter valve
  • Flow Control valve with integrated relief and anti-cavitation valves
  • Sonic System (BL3/EX/SONIC)
• • Timing belt transmission
  • 110 cc SONIC hydraulic piston motor (BL3/EX/SONIC)
  • 110 cc VT hydraulic piston motor (BL3/EX/VT)
• • Interchangeable forged steel rotor shafts
  • Bite Limiter rotor with blades BL
• • Control box for diverter valve
• • Deflector
  • Hydraulically adjustable front hood

Original FAE tools

Unmatched performance

Blade BL

standard

Ideal for:

Hardwood trees

Softwood trees

Exposed stumps

Bushes and branches

Tooth C/3/SS (L)

standard

Ideal for:

Hardwood trees

Bushes and branches

Tooth C/3/SS (R)

standard

Ideal for:

Hardwood trees

Bushes and branches

Tooth C/3

optional

Ideal for:

Hardwood trees

Exposed stumps

Bushes and branches

Options

Multiple tooth options

Customized attachment bracket with pins

Hydraulic front hood for excavator AUX line (VT)

Hydraulic thumb

Customized setting for hydraulic motor

Thumb bracket

24V diverter valve (BL3/EX/VT)

Control box for diverter valve (BL3/EX/VT)

Technology

Sonic

Sonic is a smart, flexible system that automatically calibrates the mulcher’s hydraulic parameters thanks to an operator control box that allows the mulcher to work autonomously and constantly at maximum capacity, in all working conditions. Sonic guarantees perfect harmony between the operating machine and the FAE mulcher, increasing the machine’s performance by 30%.

Discover more >

Technology

VT (Variable Torque) piston motor

The VT (Variable Torque) piston motor significantly improves mulcher performance, increasing mulching torque when an extra boost of power is needed and minimizing the conditions for rotor stalling. The VT motor assists the operator with mulching, allowing for exceptional performance.

Find out more >

Technology

Bite Limiter rotor

The experience of the FAE Group has given rise to a new line of professional mulchers for excavators equipped with Bite Limiter technology.

The Bite Limiter rotor features special profiles in Hardox wear-resistant steel, guaranteeing an optimal cutting depth from the blades (BL/MINI, BL, BL/MAX).

This reduces the demand for power and facilitates a consistent working speed, leading to excellent performance when mulching any type of wood. The Bite Limiter also reduces the likelihood of rotor stalling and optimizes fuel consumption.

Find out more >

Technology

Spike Pro

Spike Pro: the counter blades that help FAE forestry mulchers handle any kind of vegetation more efficiently. Spike Pros are interchangeable offset counter blades for finer shredding and smoother flow of wet material. The special design makes them efficient with very stiff wood and more flexible shrubs.

Find out more >

Technology

App FAE

The official FAE App is dedicated to FAE customers who own a mulcher with Sonic technology.

The App allows you to verify optimal calibration at the time of field deployment to make the most of the Sonic system, by controlling the rotor speed and the mulching pressure. The app’s integrated diagnostics system and real-time monitoring of the main parameters assist in resolving any problems. The connectivity of the FAE App for Sonic is guaranteed by a dedicated control unit positioned on the head.

Find out more >
