UMH/MEGA, forestry mulchers from 350 to 500 hp
Mulchers for Tractors

Forestry mulcher for PTO tractors with fixed tooth rotor.

UMH/MEGA

from 350 to 500 hp

UMH/MEGA
Forestry mulcher for PTO tractors with fixed tooth rotor.
Request information
Technical data sheet
UMH/MEGA, forestry mulcher for tractor, with fixed tooth rotor - 1
UMH/MEGA, forestry mulcher for tractor, with fixed tooth rotor
UMH/MEGA, forestry mulcher for tractor, with fixed tooth rotor - 3
UMH/MEGA, forestry mulcher for tractor, with fixed tooth rotor - 4
UMH/MEGA, forestry mulcher for tractor, with fixed tooth rotor - 5
UMH/MEGA, forestry mulcher for tractor, with fixed tooth rotor - 6
Mulchers for Tractors
UMH/MEGA

UMH/MEGA is a unique forestry mulcher.
It is designed for the most powerful tractors available, and allows you to work large areas in a quick and effective way.
The UMH/MEGA was built for operators seeking a highly productive mulcher combined with an extremely efficient tiller.
It can mulch trees up to 20 inches in diameter and grind at a depth of 10 inches, all in one machine.

Read more
Request information
Technical data sheet
Engine

from 350 to 500 hp
Shredding diameter

Ø 20 in max
Working depth

10 in max
Most important features
Hydraulic clutch transmission (on request)

protects the transmission at PTO engagement for smooth starting and improves machine performance

Highly productive

mulcher and at the same time extremely efficient tiller

Hydraulic clutch transmission

protects the transmission at PTO engagement for smooth starting and improves machine performance

Poly Chain belt transmission (VT only)

for optimum power transfer

Applications:

See all Hide
UMH/MEGA
UMH/MEGA, forestry mulcher capable of performing work on large surfaces quickly and flawlessly
UMH/MEGA, is a cross between a high productivity forestry mulcher and a highly effective cutter
UMH/MEGA, was built for operators seeking a highly productive mulcher combined with an extremely efficient tiller
UMH/MEGA, mulcher for tractors with hydraulic/mechanical branch breaker that pushes and conveys the material before shredding
UMH/MEGA, forestry mulchers also suitable for agricultural reclamation and crushing of stones
UMH/MEGA, shredder mulcher/rotary tiller ideal for managing wooded/forest areas and for creating firebreak lines
UMH/MEGA, mulchers with inner anti wear clad plates FCP

Standard equipment

    • Hydraulic rear hood
    • FCP wear-resistant clad plates
    • Enclosed, dust-resistant machine body
    • Interchangeable bolt-on counter blades
    • Interchangeable protection chains
    • Third row of interchangeable bolt-on counter blades (UMH/MEGA-250)
    • Hydraulic clutch transmission
    • Freewheel gearbox
    • Timing belt transmission
    • PTO shaft support for machine at rest
    • Z style self-aligning system
    • Adjustable 3-point linkage
    • Guard frame hydraulic control
    • Interchangeable forged steel rotor shafts
    • Rotor with teeth A/3
    • Wear-resistant side plates
    • Gearbox cooling system
    • Hydraulic top link cylinder
    • Central PTO shaft without cam clutch

Original FAE tools

Unmatched performance

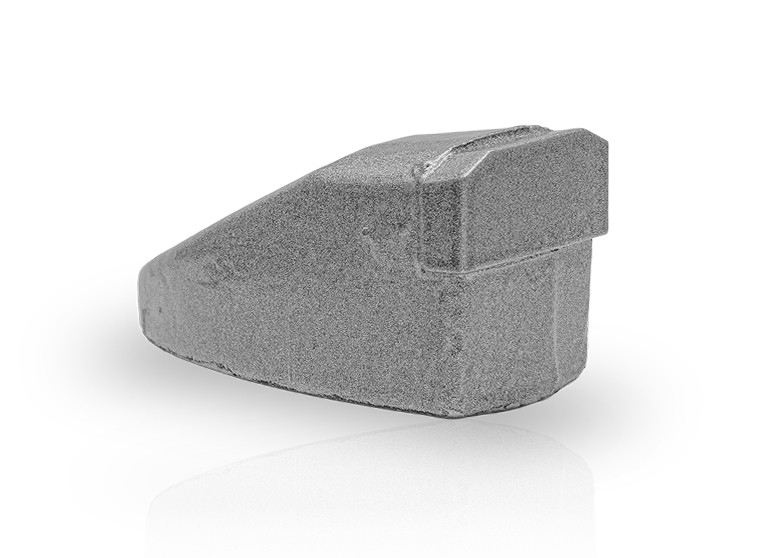

Tooth A/3 | FAE
Tooth A/3
standard
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches
Tooth A/3/HD | FAE
Tooth A/3/HD
optional
Ideal for:
Hardwood trees
Exposed stumps
Buried stumps
Peaty soil
Low rock content
Bushes and branches
Side scraper MH sx | FAE
Tooth MH (L)
standard
Side scraper
Side scraper MH (dx) | FAE
Tooth MH (R)
standard
Side scraper

Options

Multiple tooth options | FAE
Multiple tooth options
W style self aligning device between PTO drive shaft/gearbox | FAE
W style self-aligning system
Special skids to go underground | FAE
Skids to go underground
Hydraulically adjustable support skids | FAE
Hydraulically adjustable support skids
Extra ripper for push frame | FAE
Extra ripper for push frame
Hydraulic push frame with teeth setup | FAE
Hydraulic push frame with teeth setup
Technology
Hydrodynamic joints

Hydrodynamic joints are hydrokinetic transmissions that provide more efficient power management. They allow the rotor to start up gradually, even when under stress, while simultaneously absorbing recoil coming from possible head overload. Hydrodynamic joints consist of two opposing rotors and hydraulic fluid that transfers motion.

Find out more >
