Soil Stabilizers for Tractors
STABI/FRS
Available in the following versions: STABI/FRS, STABI/FRS/HP

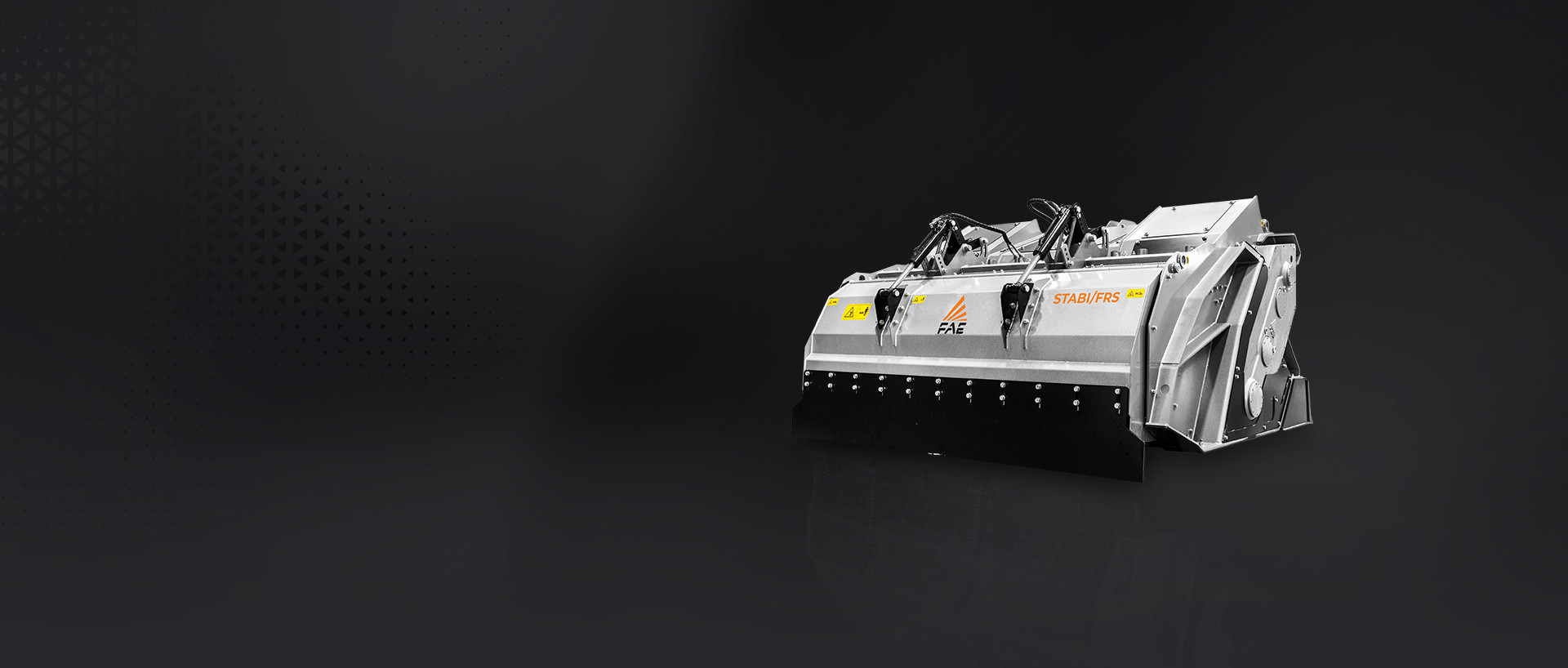

The STABI/FRS for tractors from 300 to 500 hp is the definition of the perfect stabilizer.
With a fixed-rotor system and high productivity, it is stable and strong, even on very hard ground with stones.
The STABI/FRS can be used on small work sites as well as for major infrastructural work, such as on highways, parking lots and airports.
The protruding rotor facilitates stabilization at depth with minimal power absorption.
The crushing chamber makes it possible to work the ground to a depth of 20 in, ensuring an excellent mixing quality.
The solid frame and use of wear-resistant materials provide excellent reliability over time.

Engine

from 300 to 500 hp

Working depth

20 in max

Most important features
Hydraulic rear Hood with anti-clogging system

for high productivity and lower fuel consumption

SOLID MOBILE ROTOR IN A NEW DESIGN

for stabilization with low power absorption

INTERCHANGEABLE HARDOX® INTERNAL AND SIDE GUARDS
Oil-cooling system for side gears

Greater efficiency and lifespan

Standard equipment

    • Hydraulic rear Hood with anti-clogging system
    • Interchangeable wear-resistant Hardox® plates
    • Enclosed, dust-resistant machine body
    • Interchangeable protection chains
    • Freewheel gearbox
    • Side PTO shafts with friction clutches
    • Transmission with side gearbox
    • PTO shaft support for machine at rest
    • Penetration skids
    • Dozing blade
    • Interchangeable forged steel rotor shafts
    • Rotor with teeth A/3
    • Wear-resistant interchangeable Hardox® soles
    • Wear-resistant side plates
    • Side gearbox cooling system (STABI/FRS/HP)
    • Gearbox cooling system (STABI/FRS/HP)
    • Central PTO shaft without cam clutch

Original FAE tools

Unmatched performance
Tooth A/3/HD | FAE
Tooth A/3/HD
optional
Ideal for:
Hardwood trees
Exposed stumps
Buried stumps
Peaty soil
Low rock content
Bushes and branches
Tooth A/3 | FAE
Tooth A/3
standard
Ideal for:
Peaty soil
Tooth F/3 | FAE
Tooth F/3
optional
Ideal for:
Rocks
Paved roads
Adaptor F/3 with pick R/44 | FAE
Adaptor F/3 with pick R/44
optional
Ideal for:
Peaty soil
Paved roads
Side scraper STC/FP | FAE
Tooth STC/FP (1 screw)
standard
Side scraper
Side scraper STC/3/FP | FAE
Tooth STC/3/FP
standard
Side scraper
Tooth F/3/SS (R) | FAE
Tooth F/3/SS (R)
standard
Side scraper
Tooth F/3/SS (L) | FAE
Tooth F/3/SS (L)
standard
Side scraper

Options

Multiple tooth options | FAE
Multiple tooth options
W style self aligning device between PTO drive shaft/gearbox | FAE
W style self-aligning system
Dozing blades with spring system | FAE
Dozing blades with spring system
Water spray system WSS High Flow | FAE
High Flow WSS - water spray system

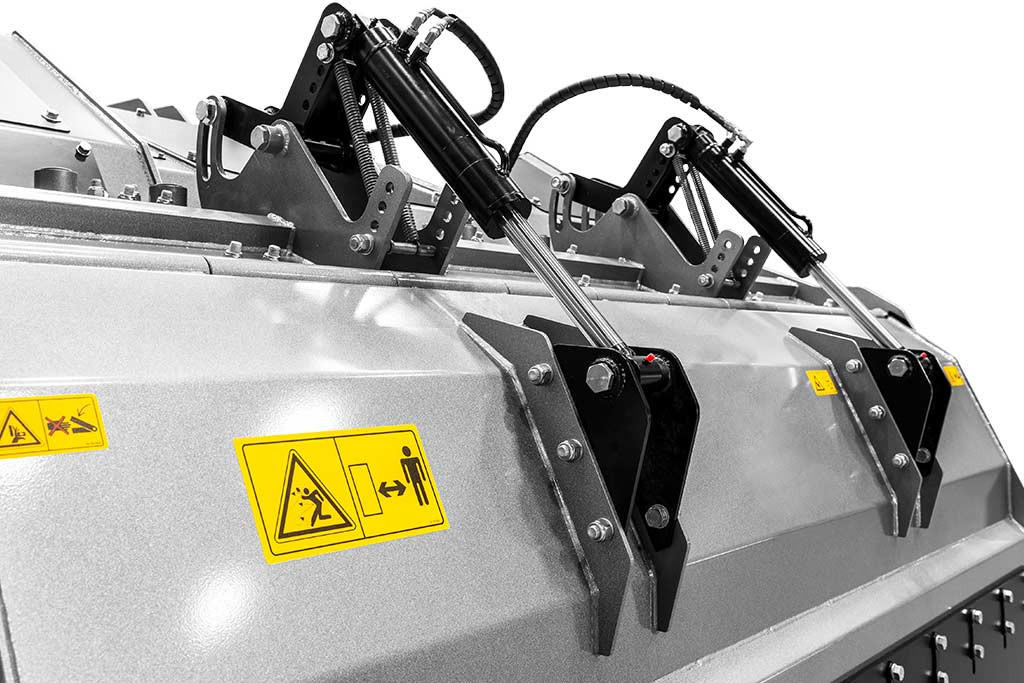

Hydraulic top link cylinder | FAE
Hydraulic top link cylinder
FCS - water spray system | FAE
FCS - water spray system
Technology - WATER SPRAY SYSTEM | FAE
Full Control System | FAE
Technology
Water Spray System

The Water Spray System has the dual function of cooling and mixing.
The cooling function, useful when the machines work as an asphalt cutter (see multi-task machines), has the advantage of limiting the temperature of the rotor and teeth in contact with the asphalt, preventing it from overheating.
The mixing system, on the other hand, is useful in stabilization operations (see multi-task machines and stabilizers) in which the soil and the stabilizing agent are mixed with water.
In fact, at this stage, the addition of water to the mixing chamber improves binding between the stabilizing agent and the soil, optimizing the result of the consolidation work.

Find out more >

Technology
Full Control System

The Full Control System is a top-of-the-line system with electronically adjusted nozzles, a self-priming hydraulic pump, proportional valves to adjust the water flow and a control display unit for settings, diagnostics and the machine’s operating status.

Find out more >

Technology
Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >
