Road planers for excavators
RPL/HY

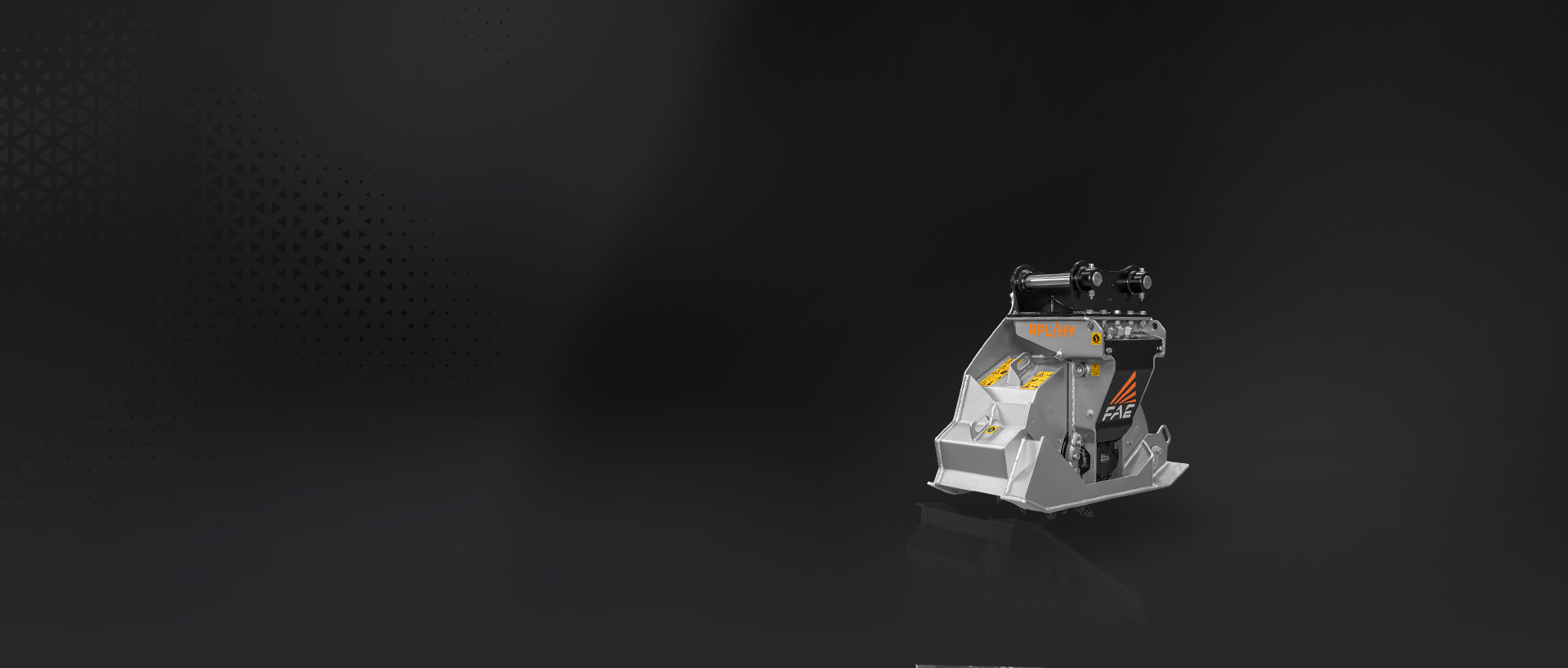

The RPL/HY is a road planer for excavators from 5 to 8 t, capable of milling up to 5 inches deep. The RPL/HY is ideal for preparing the surface of the road for laying a new layer of asphalt or concrete. Its features include a wide-stroke self-leveling system for proper head alignment during operation and teeth specifically designed for asphalt and concrete road surfaces.

Excavator weight

from 5 to 8 t

Working depth

4.5 in

Flow rate

from 13 to 24 gal/min

Standard equipment

    • Direct-drive transmission
    • Mechanically adjustable working depth
    • Flow Control valve with integrated relief and anti-cavitation valves
    • 470 cc hydraulic piston motor

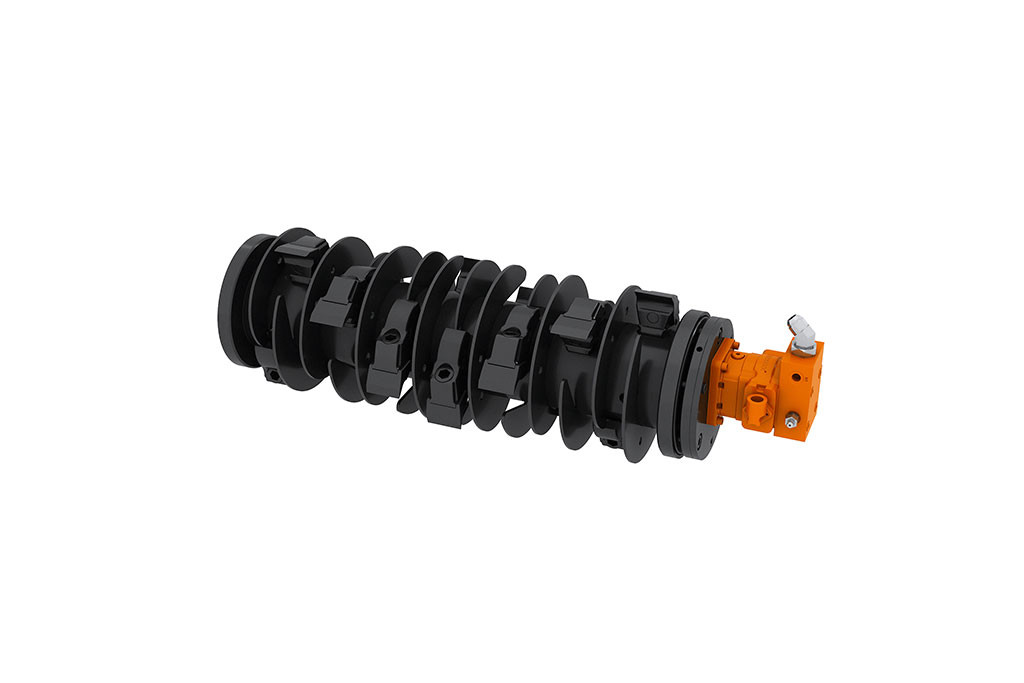

    • Rotor with picks R/44/A
    • Self-levelling attachment bracket
    • Enclosed, dust-resistant machine body
    • Grade leveling arm
    • Fittings for hydraulic connections

Original FAE tools

Unmatched performance
Pick R/44/A| FAE
Pick R/44/A
standard
Ideal for:
Paved roads
Pick R/44/C | FAE
Pick R/44/C
optional
Ideal for:
Paved roads

Options

Multiple tooth options | FAE
Multiple tooth options
Customized attachment bracket with pins | FAE
Customized attachment bracket kit with customized pins
