Remote controlled tracked carriers
RCU75
Available in the following versions: RCU75 - Tier 4F

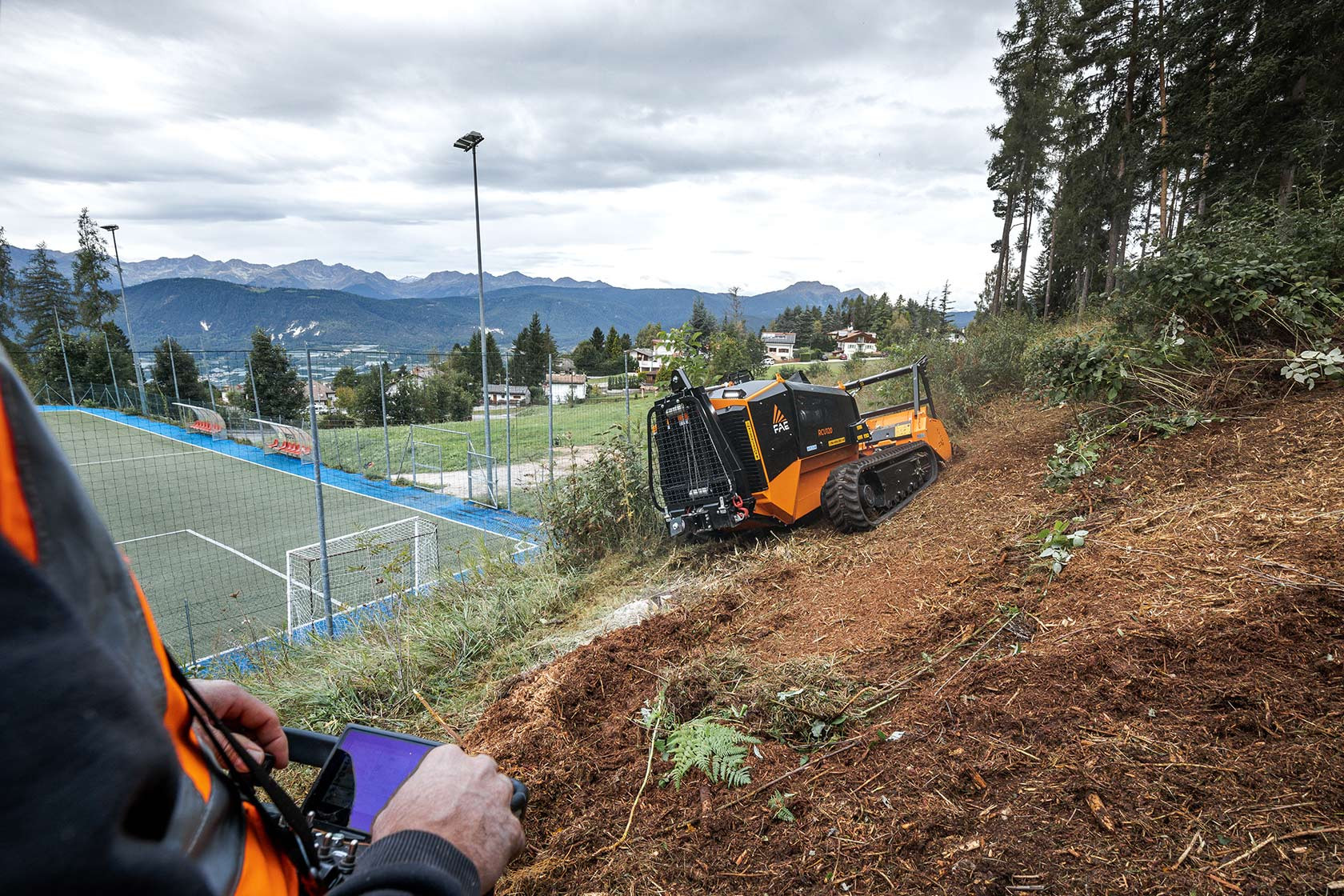

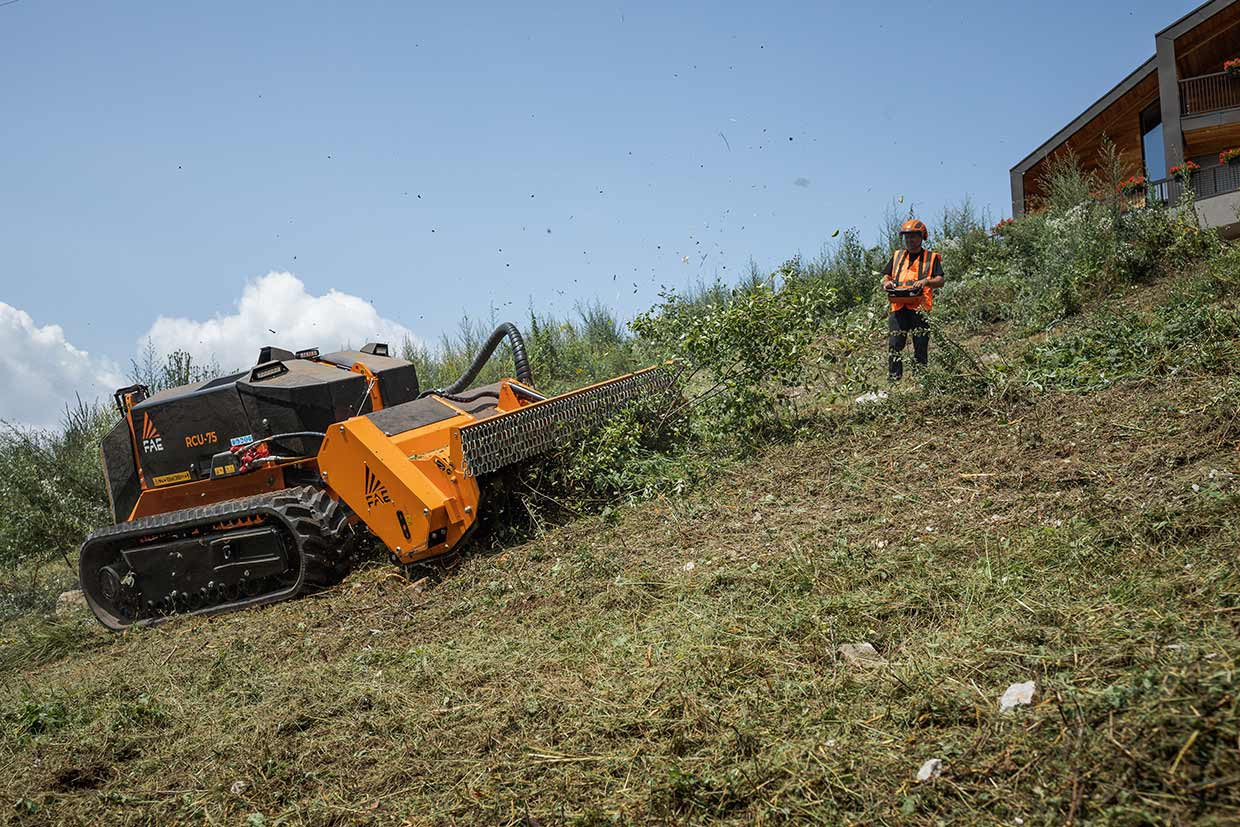

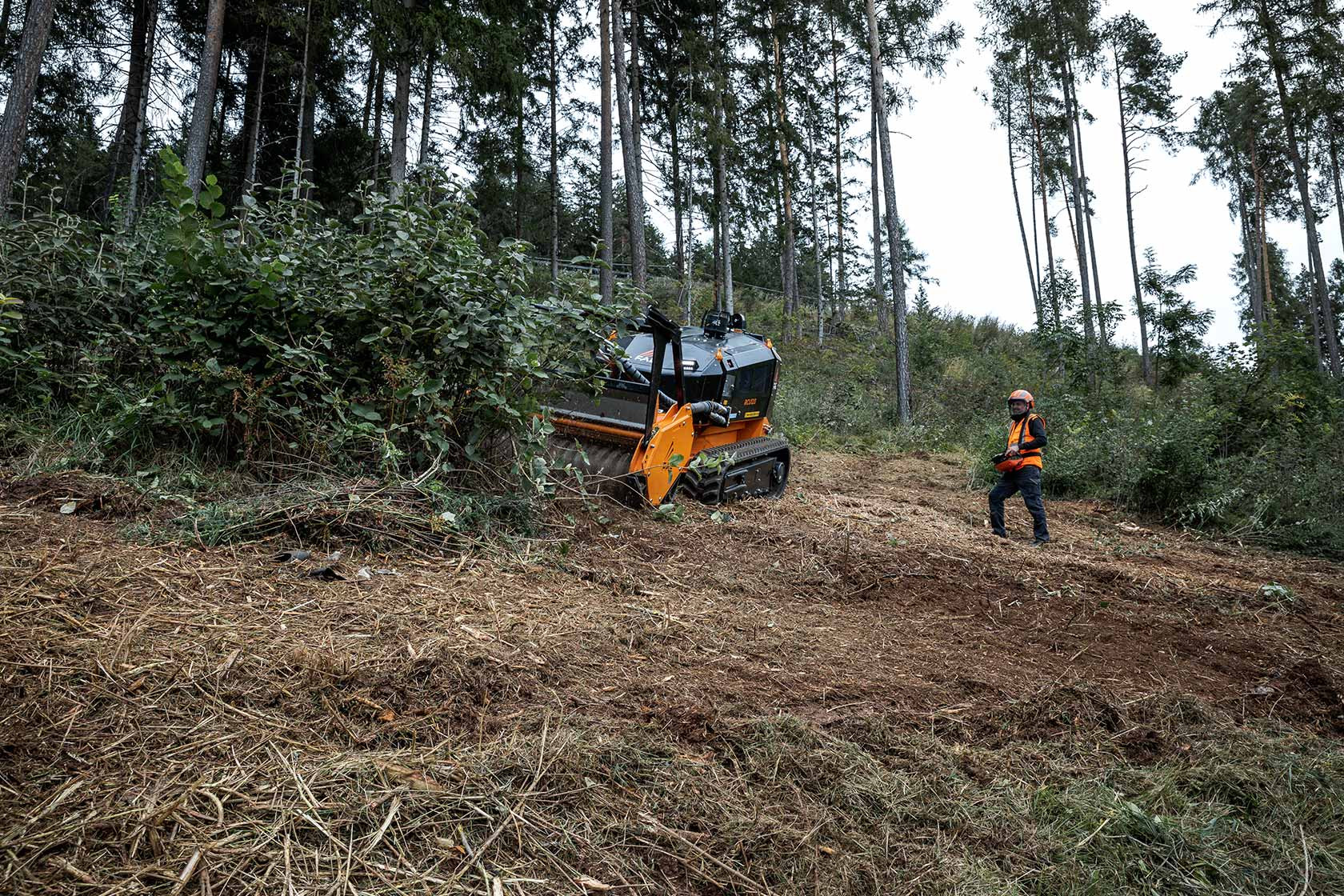

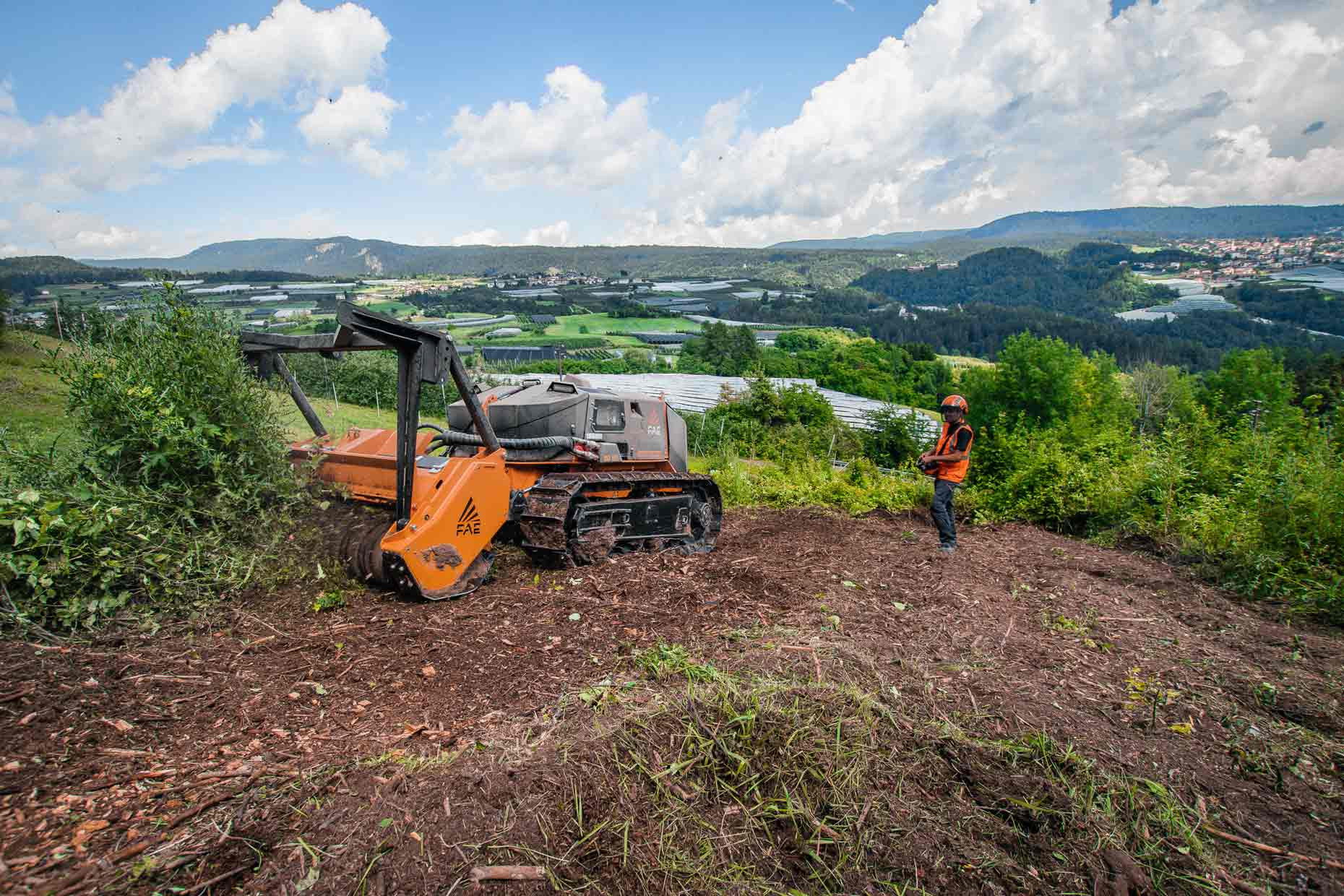

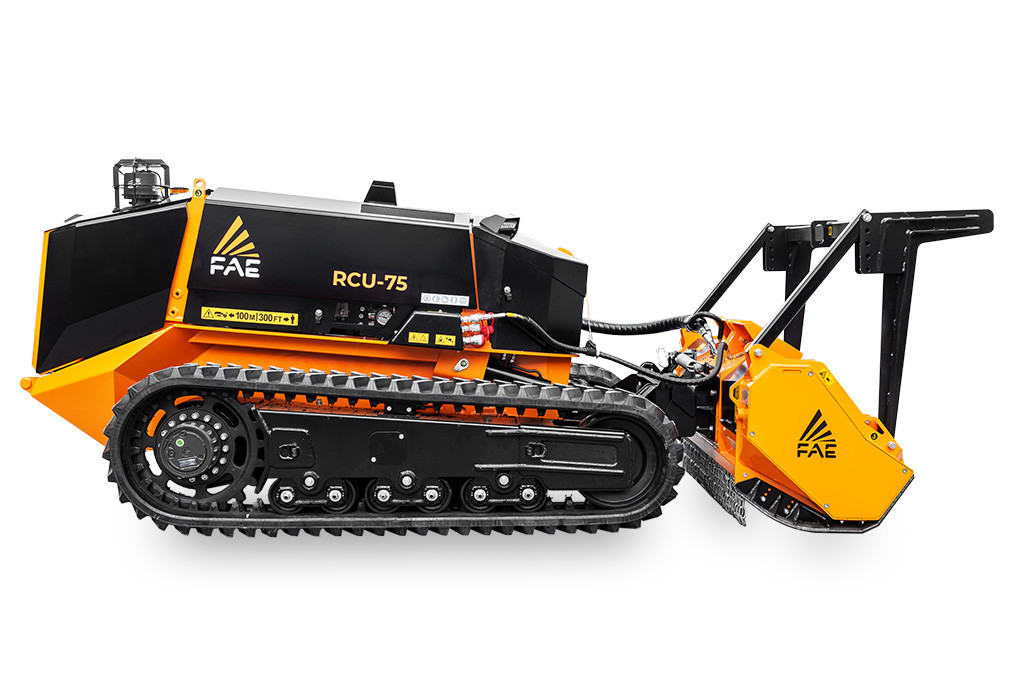

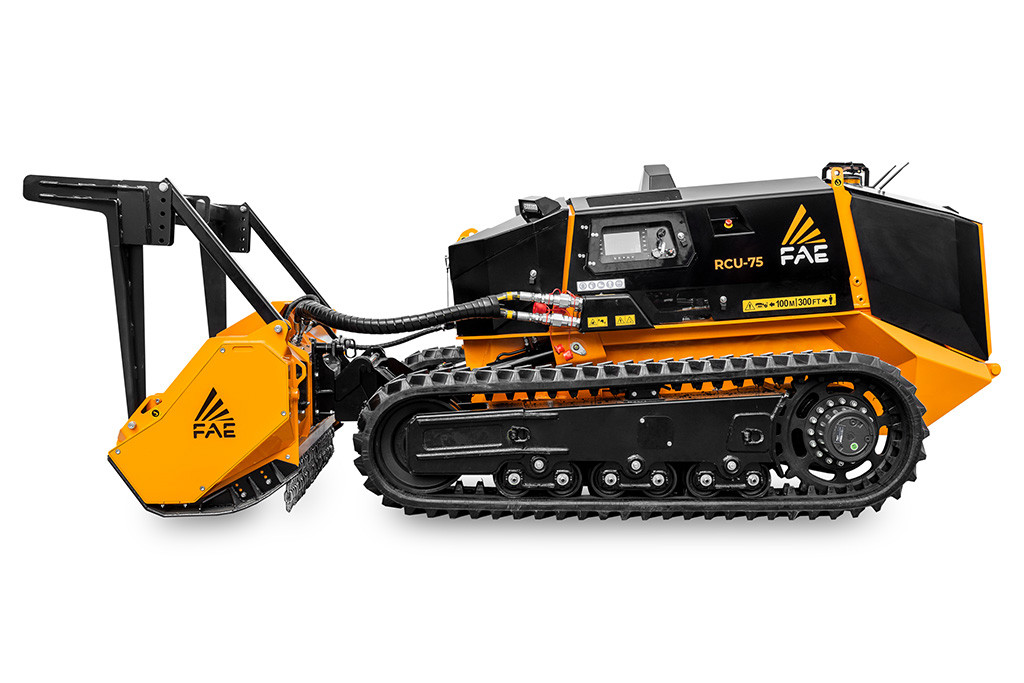

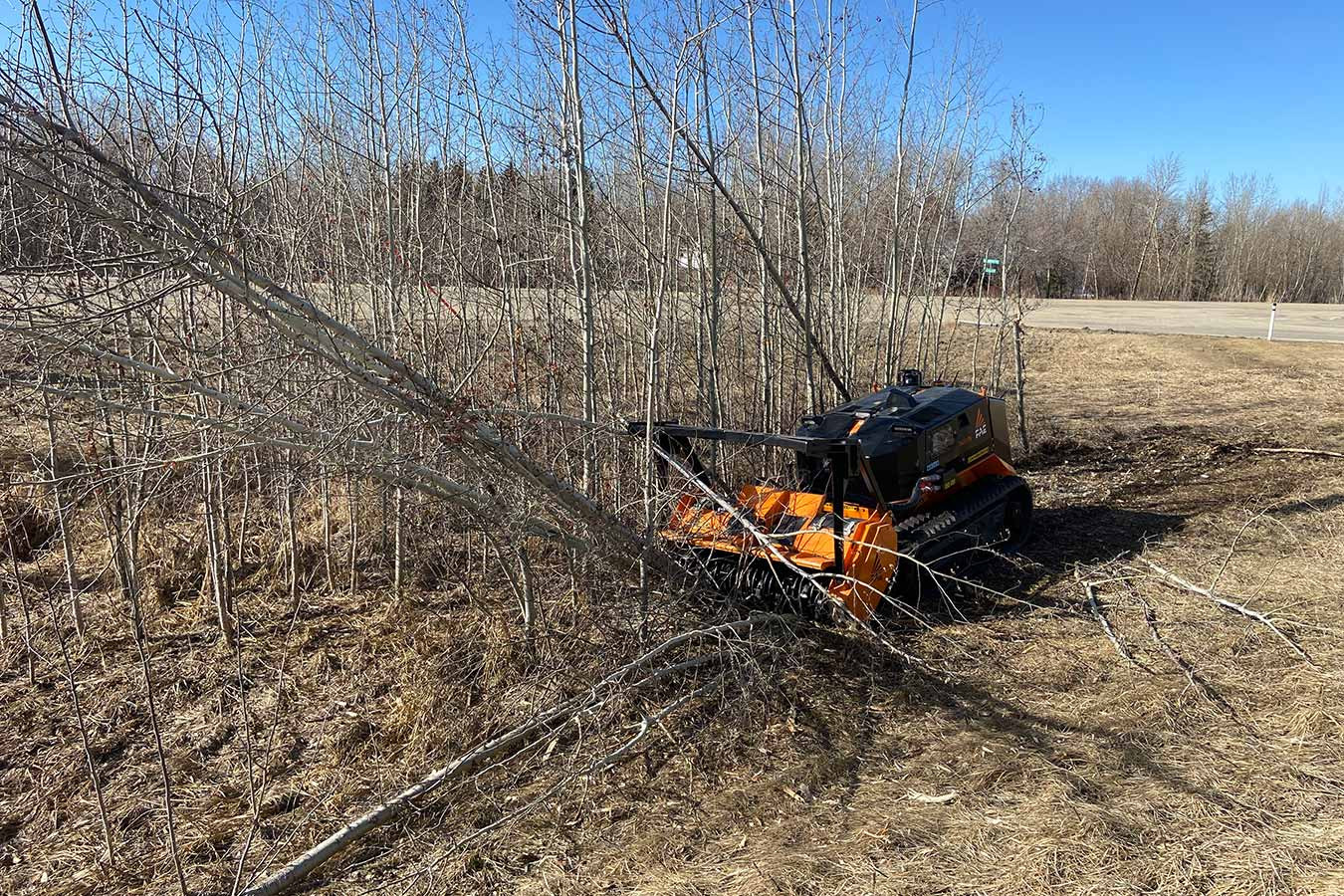

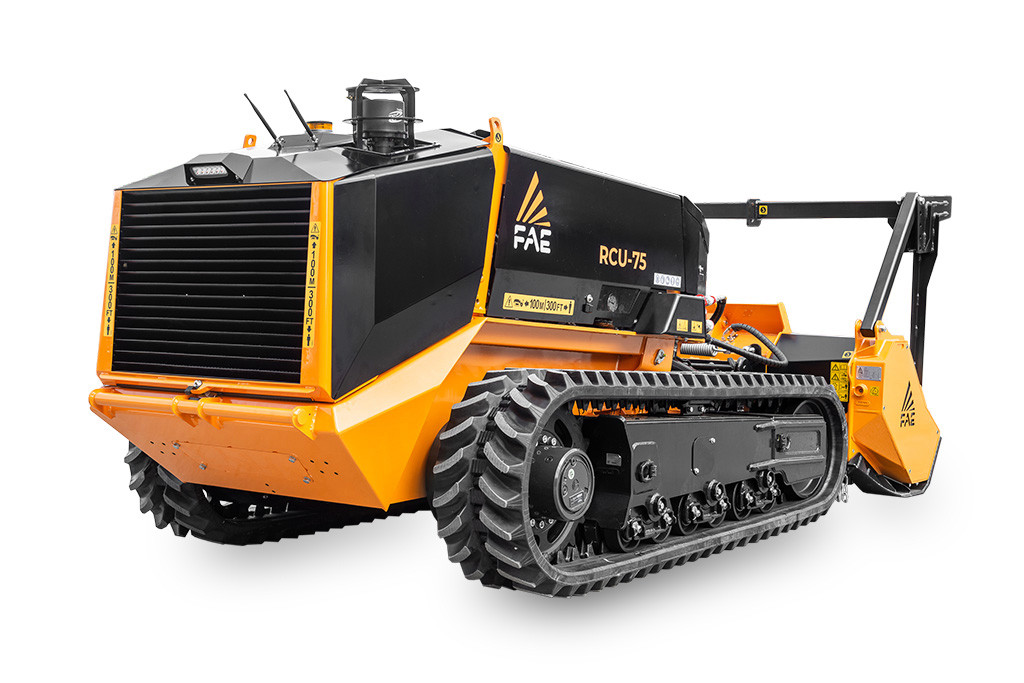

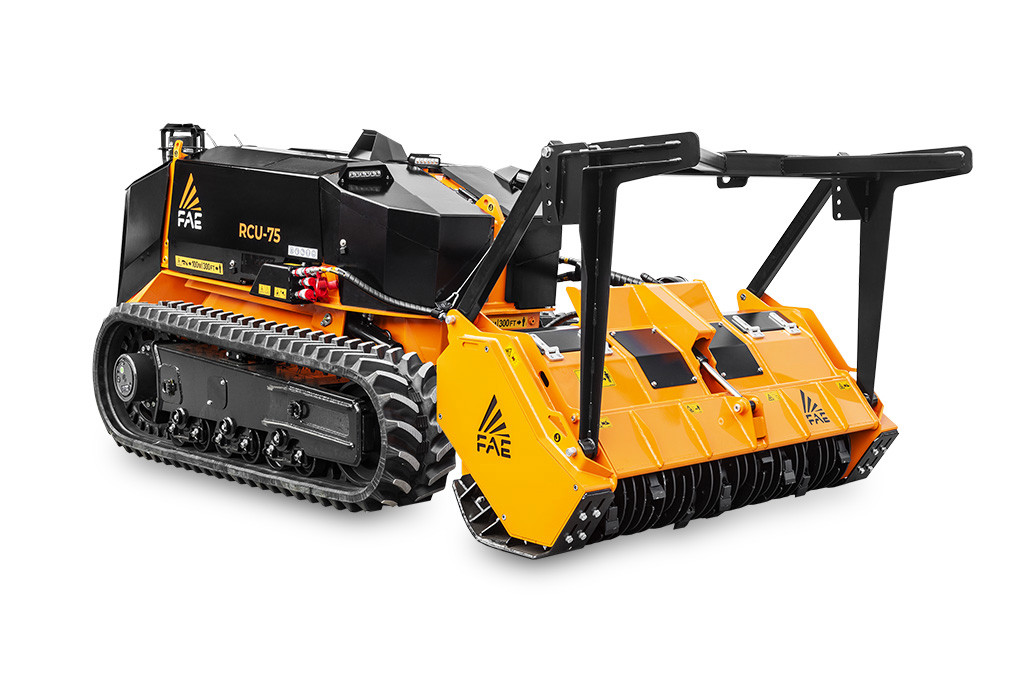

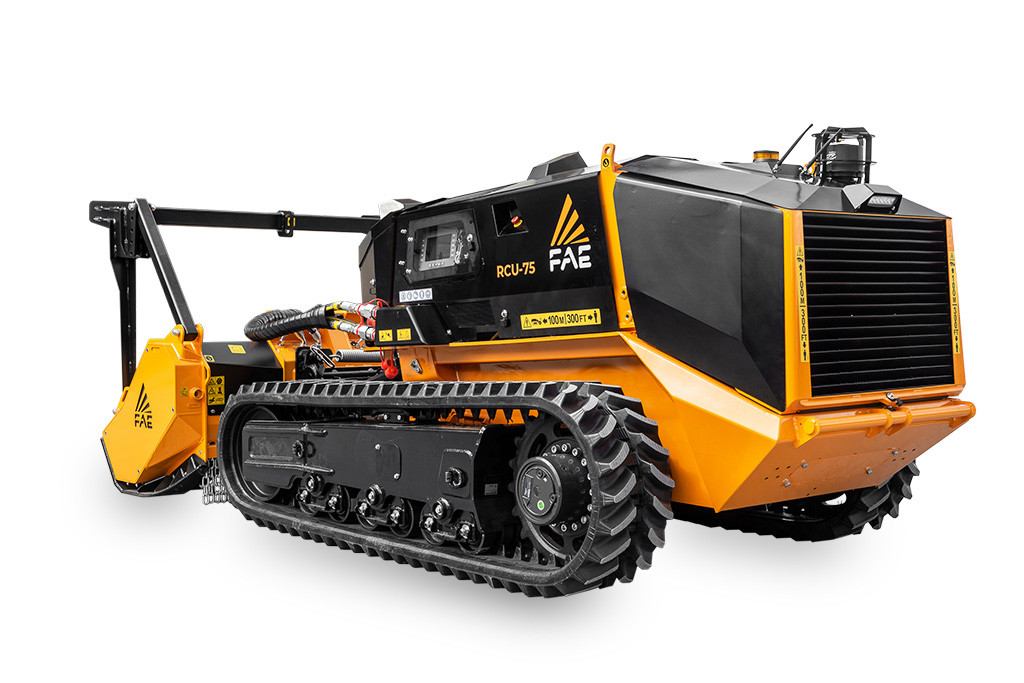

The RCU75 is a compact, powerful FAE tracked carrier that shreds branches and wood pieces, grass, and small shrubs. It can also cuts stumps when outfitted with an SCL/RCU head. It is equipped with a 74-hp Kohler engine. The RCU75 can work on steep slopes up to 55°. The heavy-duty undercarriage features a hydraulic variable track system with independent undercarriage frames for maximum stability on steep terrain. The high-profile rubber or steel tracks combined with the undercarriage’s multiple roller system provide unbeatable traction. The dual hydrostatic transmission makes it easier to manage traction and the attachment. Equipped with the RPL/SSL-45 road planer, the RCU75 can be used to mill asphalt and concrete up to 17 cm (7 in) deep.

Power

74 hp

Most important features
ROBUST

Structural steel frame. Integrated and protected components.

AGILE

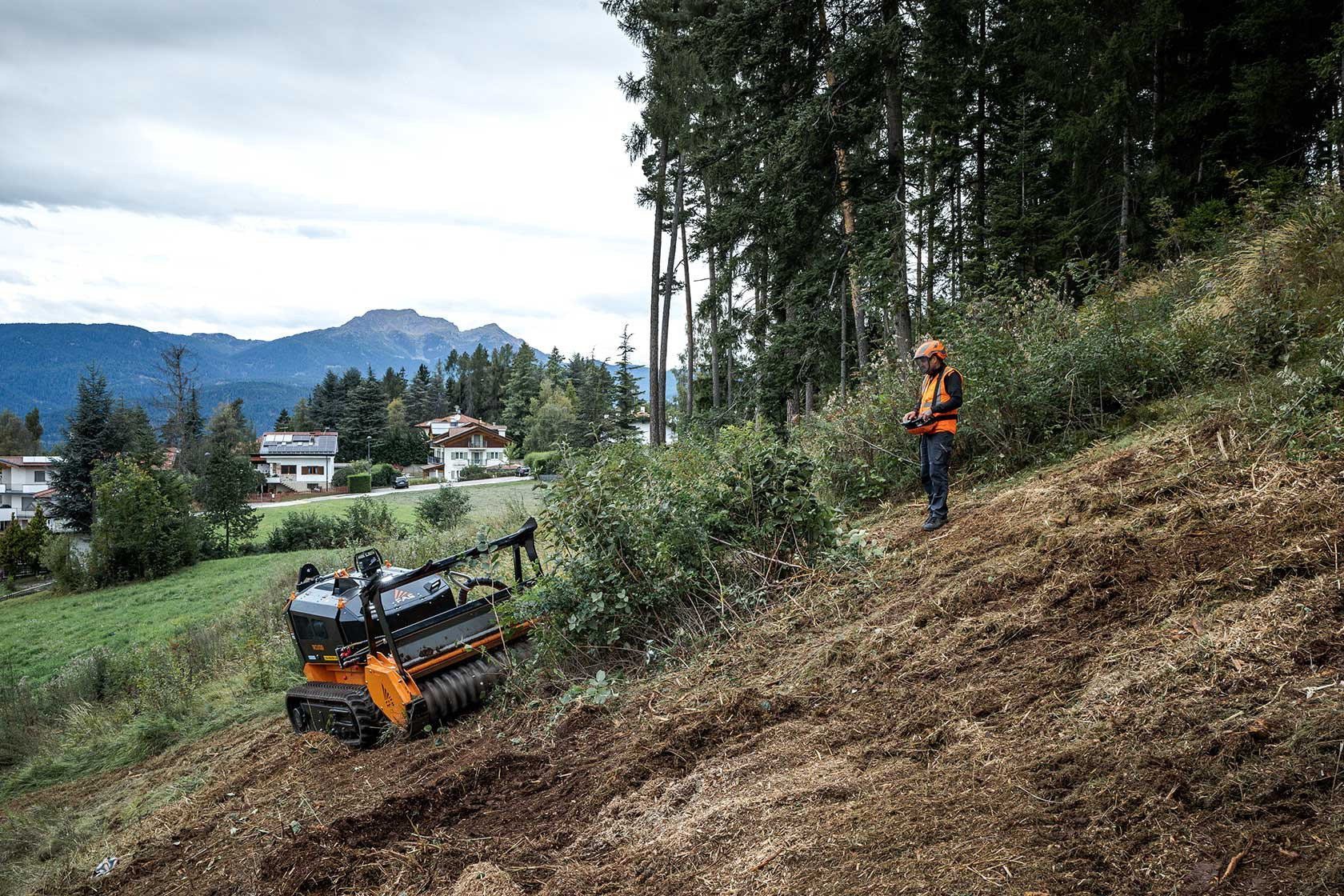

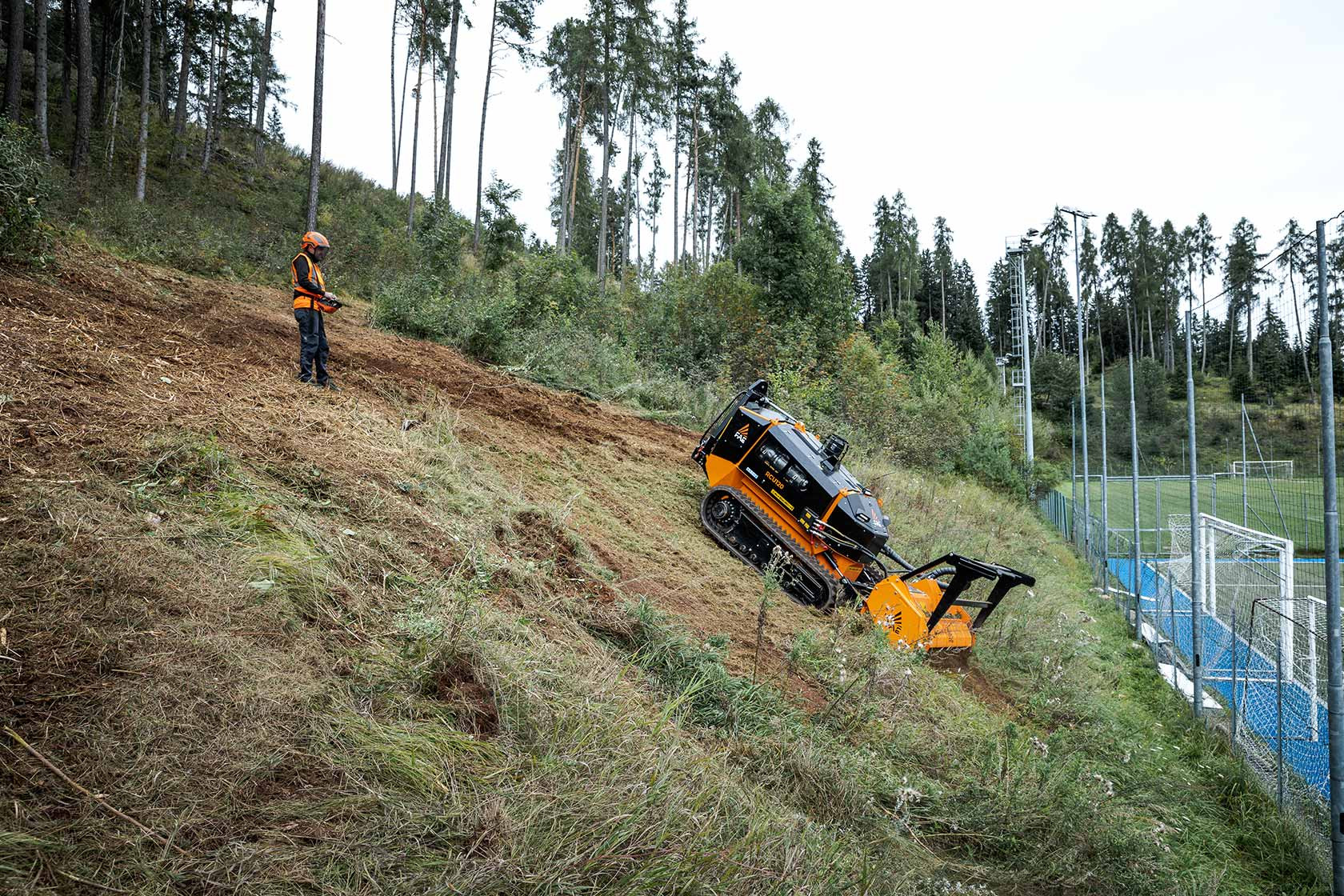

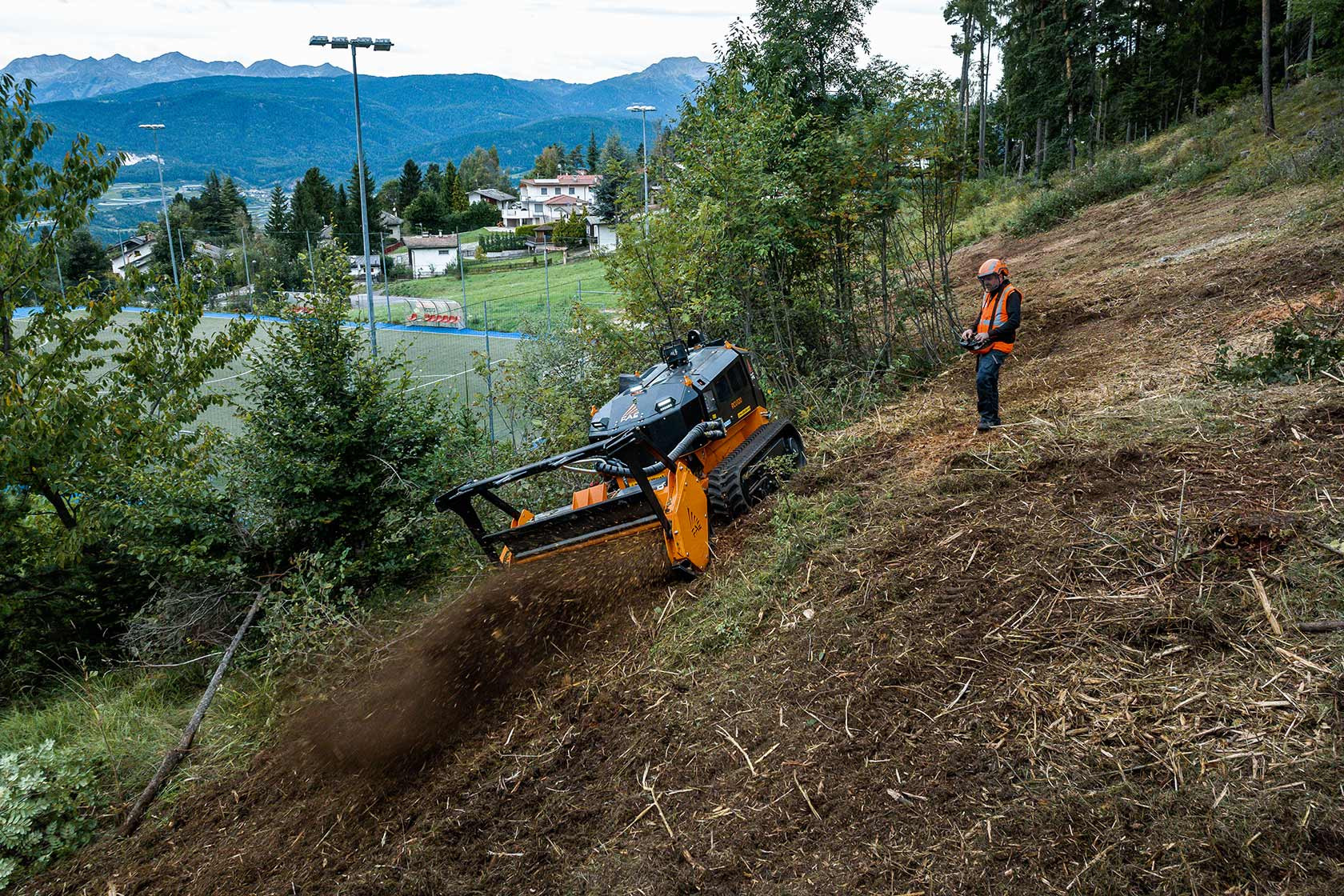

Works on sloping terrain up to 55°. Full counter-rotating.

BITE LIMITER

Available on the BL2/RCU forestry mulcher with Bite Limiter technology.

HIGH-TECH

Integrated system of electronic control units and sensors for maximum performance at all times.

PROFESSIONAL

The result of FAE’s experience designing PT and Demining tracked carriers.

POWERFUL

4 cyl. Turbo Aftercooler 74-hp engine.

  • Compact and powerful motor

    Compact and powerful 74 hp Kohler Common Rail electronic fuel injection engine. Oil pan co-designed and tested by FAE and Kohler to ensure correct lubrication, even on slopes up to 55°. Low-noise and low-vibration. Fuel efficient and compliant with the strictest emissions standards.

  • Hydrostatic transmission of the RCU-55 FAE that guarantees high performance and reliability over time, as well as a simple and intuitive mode of use
    Efficient and reliable transmission

    Electronically controlled piston pumps combined with a dedicated electronic control unit provide an integrated technological system. The result is high performance and long-term reliability, as well as simple and intuitive operation.

  • Heavy duty undercarriage

    Hydraulic variable track system with independent undercarriage frames and an automatic tensioning system built to work in the toughest conditions, thanks to a rubber or steel tracks structure, multiple roller system and idlers.

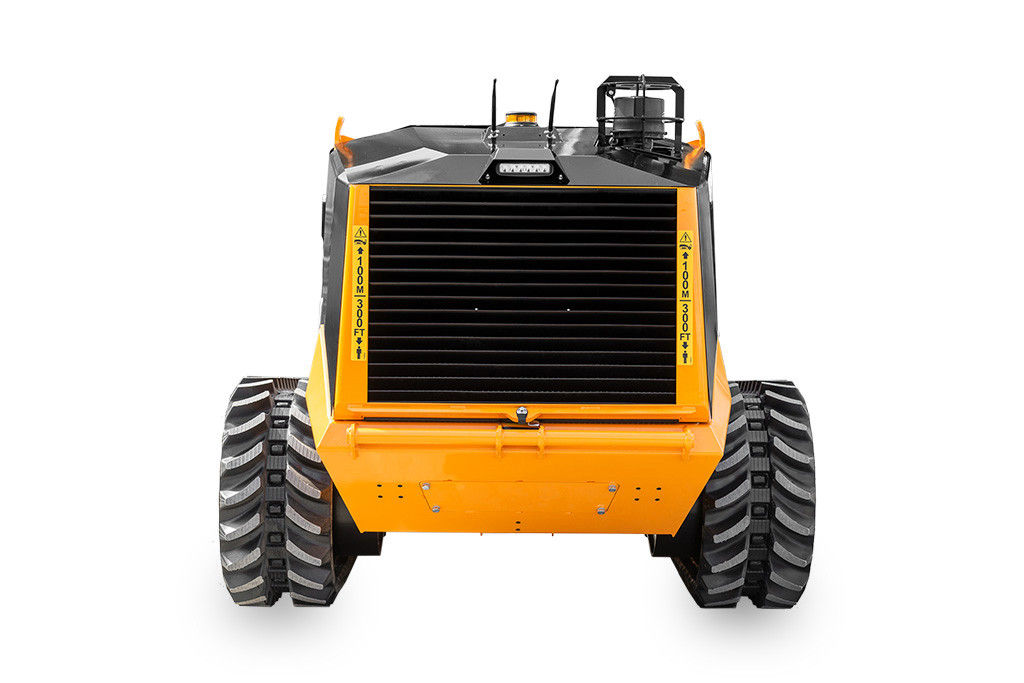

  • Self-cleaning radiator

    The aluminum radiator combined with anti-clogging fins is paired with a proportional and reversible fan to keep the radiator clean and efficient at all times, consistently maintaining peak performance and reducing the need for upkeep.

  • Ergonomic radio remote control for RCU-55 FAE radio-controlled vehicle with large 3.5 "display to better manage all vehicle and cylinder head functions

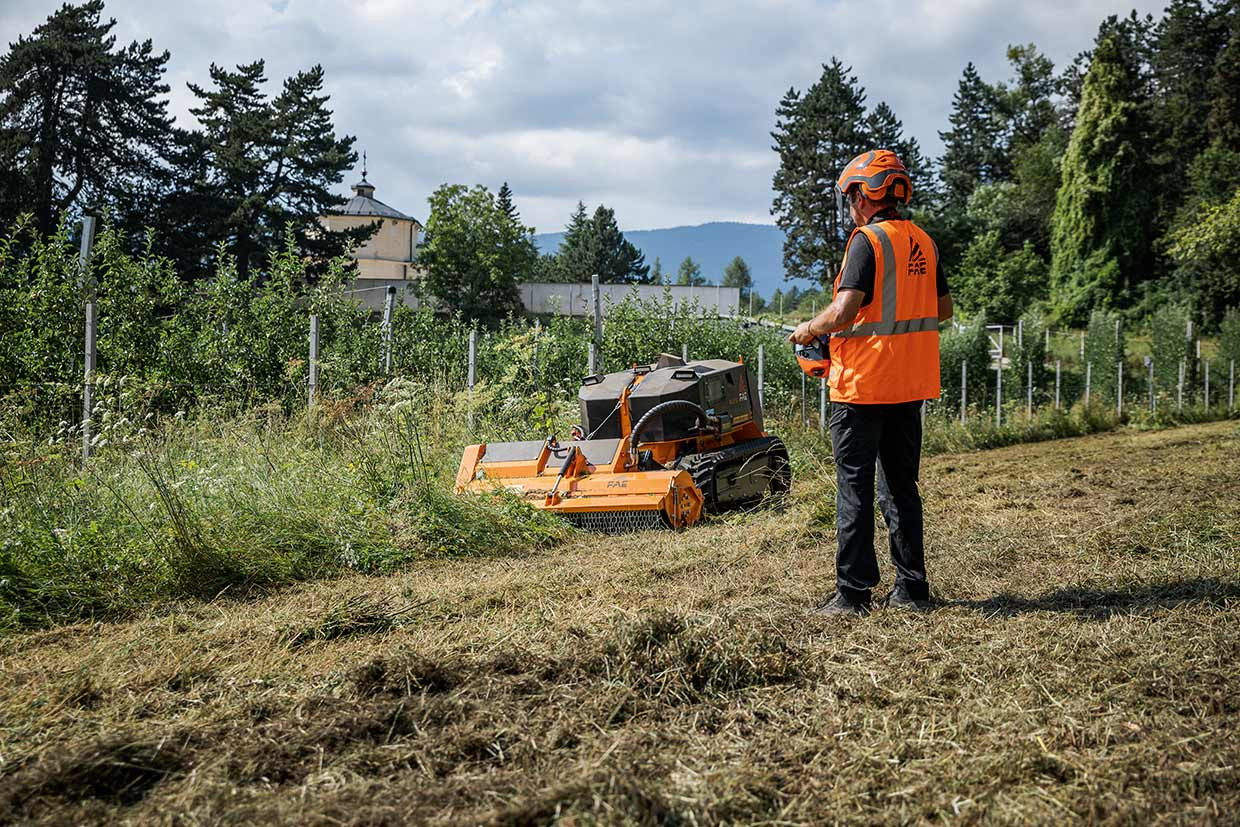

    Professional remote control

    The ergonomic remote control with a large 4.3” display makes it easy to manage all vehicle and attchment functions.  Customizable function keys. 2.4 GHz transmission frequency.

  • FAE App

    With the FAE App, you can monitor the main operating parameters, check for any malfunctions, and manage scheduled maintenance in real time from your smartphone.

Standard equipment

    • DOC after-treatment system (RCU75 TIER 4F) & DOC/DPF after-treatment system (RCU75 STAGE V)
    • 4.3" LCD color display on remote control unit
    • 7" LCD on-board color display
    • KOHLER KDI 2504 turbocharged and after-cooled engine
    • Auxiliary hydraulic circuit for attachments
    • High-profile rubber tracks and rollers system
    • Combined aluminum cooler with anti-clogging fins
    • Proportional and reversible fan system with hydraulic control
    • Ergonomic controls
    • Double remote control battery and on-board battery charger
    • LED working light
    • Load Control System
    • Quick-mount tilting attachment plate
    • Automatic rubber track tensioning system
    • Independent hydraulic variable track gauge system
    • Floating System

Options

Steel Tracks (RCU-75) |FAE
Undercarriage with steel tracks
Rear winch with 2-t traction force
Rear winch with 2-t traction force
Bio-oil| FAE
Bio-oil
Quick-mount fixed SAE attachment plate
Quick-mount fixed SAE attachment plate
Quick-mount fixed neutral attachment plate
Quick-mount fixed neutral attachment plate

Available heads

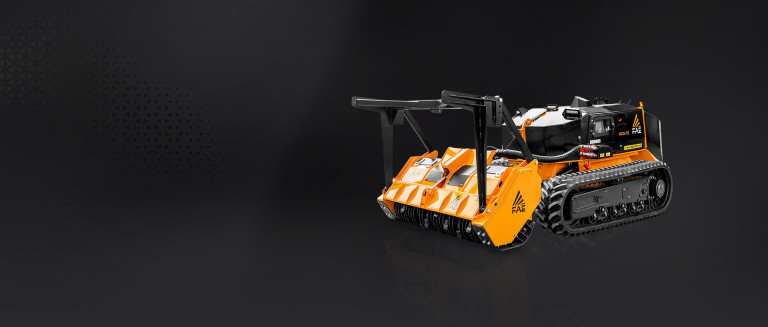

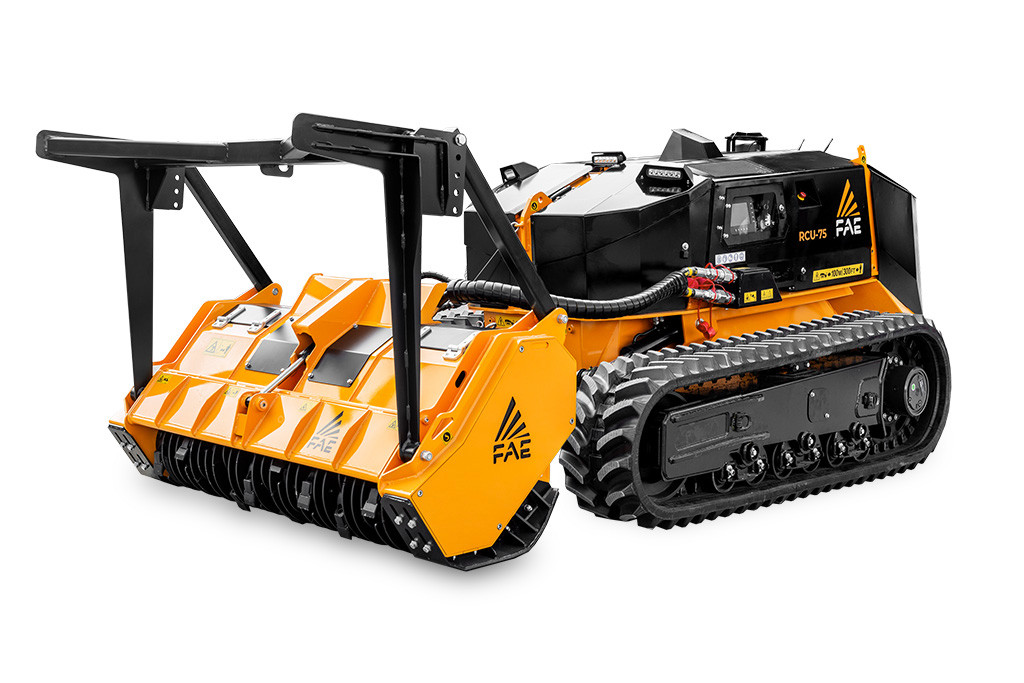

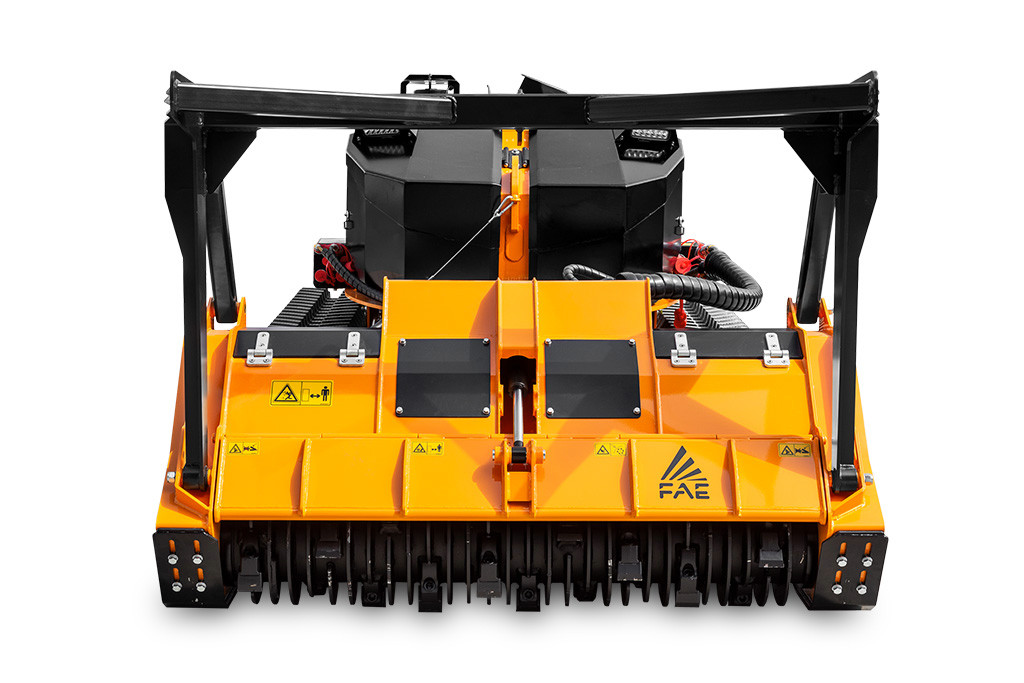

BL2/RCU - Forestry mulcher with Bite Limiter technology
BL2/RCU75
Forestry mulcher for RCU-75 with Bite Limiter technology
SCL/RCU75, Stump cutters for remote controlled tracked carrier
SCL/RCU75
Stump cutters for the RCU75 remote controlled tracked carrier.
PMM/RCU, mulcher with hammer/flail rotor for RCU75
PMM/RCU75
Mulcher with hammer/flail rotor for RCU75
RPL/SSL
Fixed tooth road planer for the RCU75 remote controlled tracked carrier
