Soil Stabilizers for Tractors

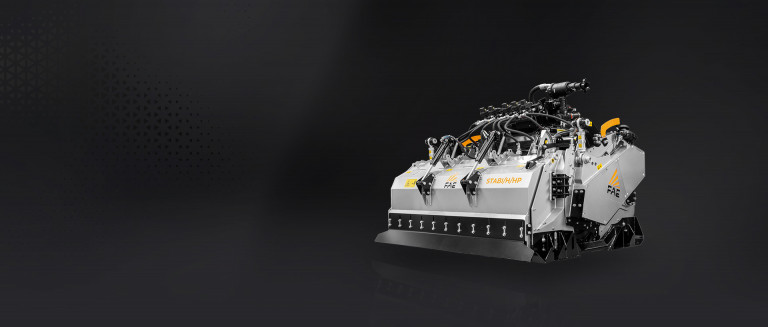

STABI/H

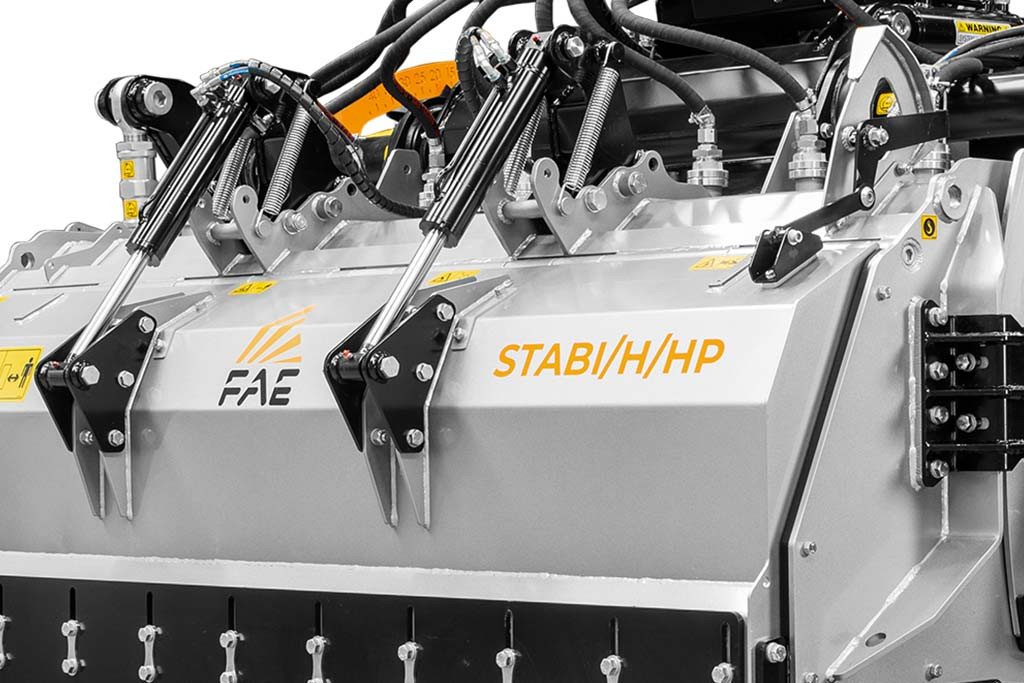

Available in the following versions: STABI/H, STABI/H/HP

The STABI/H is FAE's soil stabilizer for the most demanding professionals. It operates up to 56 cm deep and works with 300-500 hp tractors. The STABI/H is designed to prepare ground for building roads, highways, railroads, parking lots, sports complexes, office parks, industrial plants, and other infrastructure. The exclusive variable geometry chamber allows the rotor to penetrate the soil using the movable frame, which is hydraulically adjustable with extreme accuracy right from the tractor’s cab. Compared to a traditional machine, there is less traction stress, which means a lower power demand and less fuel needed.

Tractor

from 300 to 500 hp

Working depth

56 cm max

Most important features
Variable displacement chamber

the result is a homogeneously stabilised soil at all working depths

SOLID MOBILE ROTOR IN A NEW DESIGN

for stabilization with low power absorption

Hydraulic rear Hood with anti-clogging system

for high productivity and lower fuel consumption

INTERCHANGEABLE HARDOX® INTERNAL AND SIDE GUARDS

Standard equipment

    • Hydraulic rear Hood with anti-clogging system
    • Interchangeable wear-resistant Hardox® plates
    • Enclosed, dust-resistant machine body
    • Bolt-on interchangeable protection chains
    • Freewheel gearbox
    • Transmission with side gearbox
    • Side PTO shafts with friction clutches
    • Timing belt transmission
    • PTO shaft support for machine at rest
    • Dozing blade
    • Adjustable skids
    • Interchangeable forged steel rotor shafts
    • Rotor with teeth A/3
    • Wear-resistant side plates
    • Side gearbox cooling system
    • Gearbox cooling system (STABI/H/HP)
    • Central PTO shaft without cam clutch

Original FAE tools

Unmatched performance
Tooth A/3 | FAE
Tooth A/3
standard
Ideal for:
Peaty soil
Tooth A/3/HD | FAE
Tooth A/3/HD
optional
Ideal for:
Peaty soil
Low rock content
Tooth F/3 | FAE
Tooth F/3
optional
Ideal for:
Rocks
Paved roads
Adaptor F/3 with pick R/44 | FAE
Adaptor F/3 with pick R/44
optional
Ideal for:
Peaty soil
Paved roads
Tooth STC/3 | FAE
Tooth STC/3
standard
Side scraper
Tooth STC/3/SS (R) | FAE
Tooth STC/3/SS (R)
standard
Side scrape
Tooth STC/3/SS (L) | FAE
Tooth STC/3/SS (L)
standard
Side scrape

Options

Griglia regolabile Anti-intasamento | FAE
Adjustable anti-clogging grille
Multiple tooth options | FAE
Multiple tooth options
Dozing blades with spring system | FAE
Dozing blades with spring system
Water spray system WSS High Flow | FAE
High Flow WSS - water spray system
Hydraulic top link cylinder | FAE
Hydraulic top link cylinder
FCS - water spray system | FAE
FCS - water spray system
Technology - WATER SPRAY SYSTEM | FAE
Displacement Chamber | FAE
Full Control System | FAE
Rotor with built-in transmission | FAE
Technology
Water Spray System

The Water Spray System has the dual function of cooling and mixing.
The cooling function, useful when the machines work as an asphalt cutter (see multi-task machines), has the advantage of limiting the temperature of the rotor and teeth in contact with the asphalt, preventing it from overheating.
The mixing system, on the other hand, is useful in stabilization operations (see multi-task machines and stabilizers) in which the soil and the stabilizing agent are mixed with water.
In fact, at this stage, the addition of water to the mixing chamber improves binding between the stabilizing agent and the soil, optimizing the result of the consolidation work.

Find out more >

Technology
Variable geometry chamber

This technological solution, which is one of a kind in the industry, allows the ground to be penetrated with the rotor alone. The mobile rotor can be hydraulically adjusted from the tractor cabin. The chamber has a variable volume—the greater the working depth, the greater the volume of the chamber.

Compared to a machine that plunges the frame into the ground, the variable geometry chamber reduces traction stress, which decreases fuel consumption and increases operating speed, saving time as a result.

Find out more >

Technology
Full Control System

The Full Control System is a top-of-the-line system with electronically adjusted nozzles, a self-priming hydraulic pump, proportional valves to adjust the water flow and a control display unit for settings, diagnostics and the machine’s operating status.

Find out more >

Technology
Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >

Technology
Rotor with built-in transmission

The rotor with built-in transmission on the STABI/H is an innovative solution designed by FAE for maximum stabilization. The placement of the rotor and the transmission on parallel axis helps the rotor achieve superb working depth, without driving the frame into the ground. This technological solution boosts productivity and decreases power requirements, which also helps with fuel consumption.

Find out more >
