Remote controlled tracked carriers
RCU55
Available in the following versions: RCU55 - Tier 4F

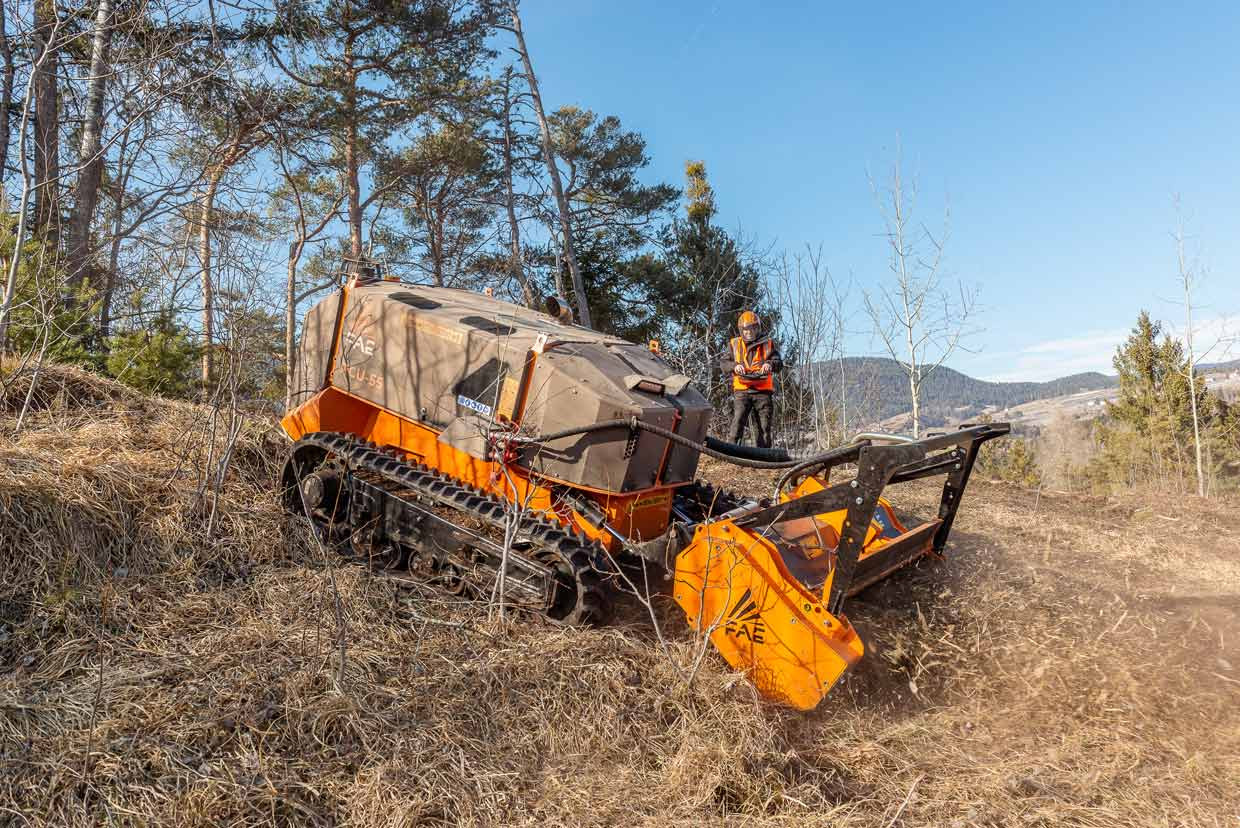

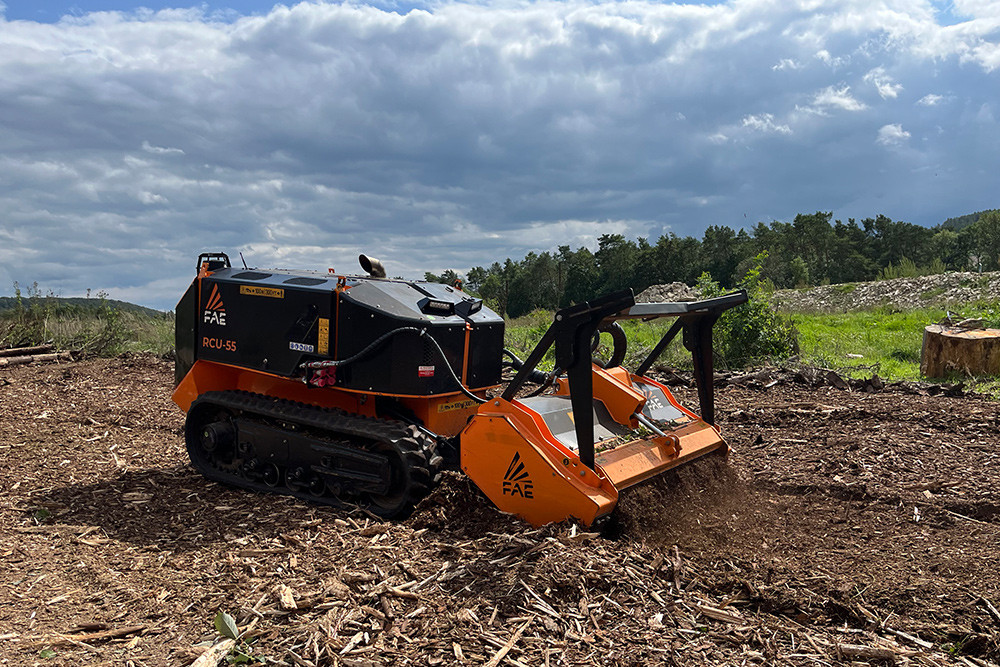

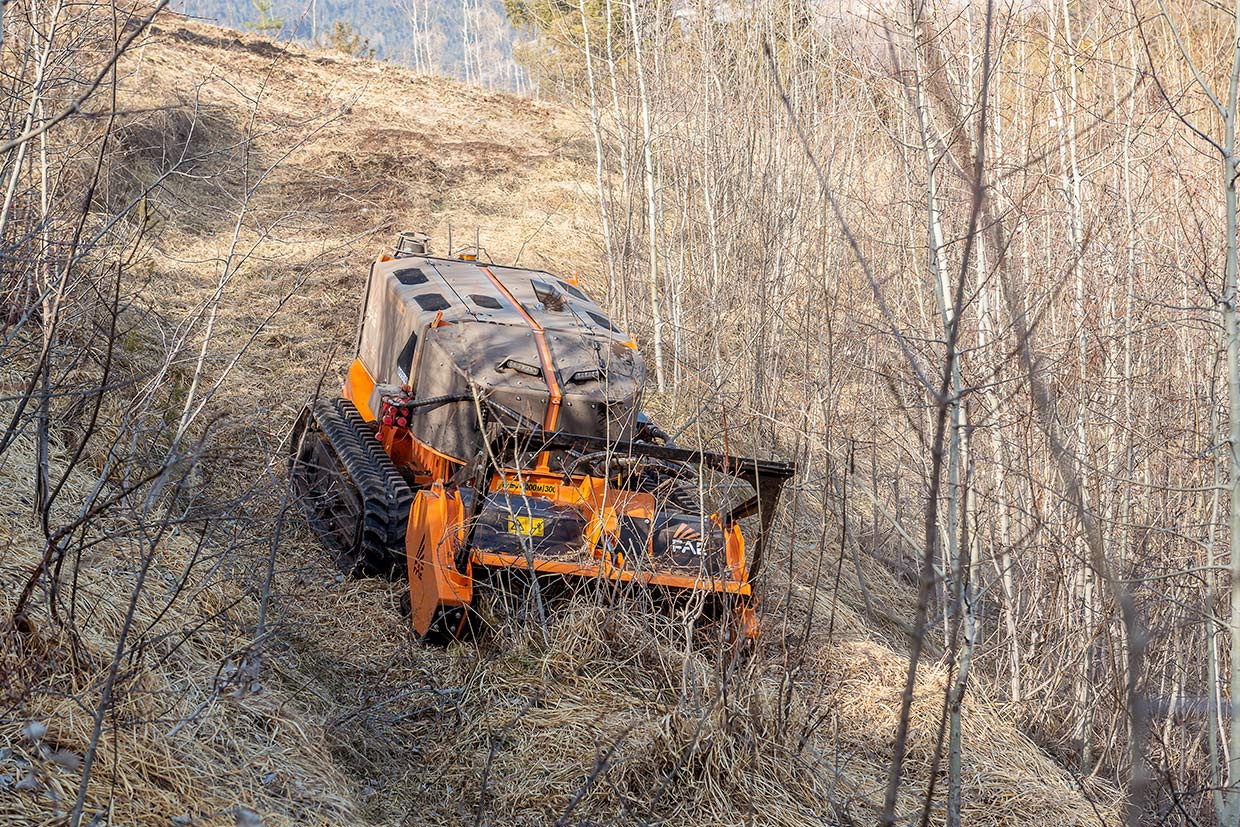

The RCU55 is a compact FAE tracked carrier that shreds branches and wood pieces, grass, and small shrubs. It can also cuts stumps when outfitted with an SCL/RCU head. It is equipped with a 56-hp Kohler engine. The RCU55 can work on steep slopes up to 55°. The heavy-duty undercarriage features a hydraulic variable track system with independent undercarriage frames for maximum stability on steep terrain. The high-profile rubber tracks combined with the undercarriage’s multiple roller system provide unbeatable traction. The dual hydrostatic transmission makes it easier to manage traction and the attachment.

Power

56 hp

Most important features
ROBUST

Structural steel frame. Integrated and protected components.

AGILE

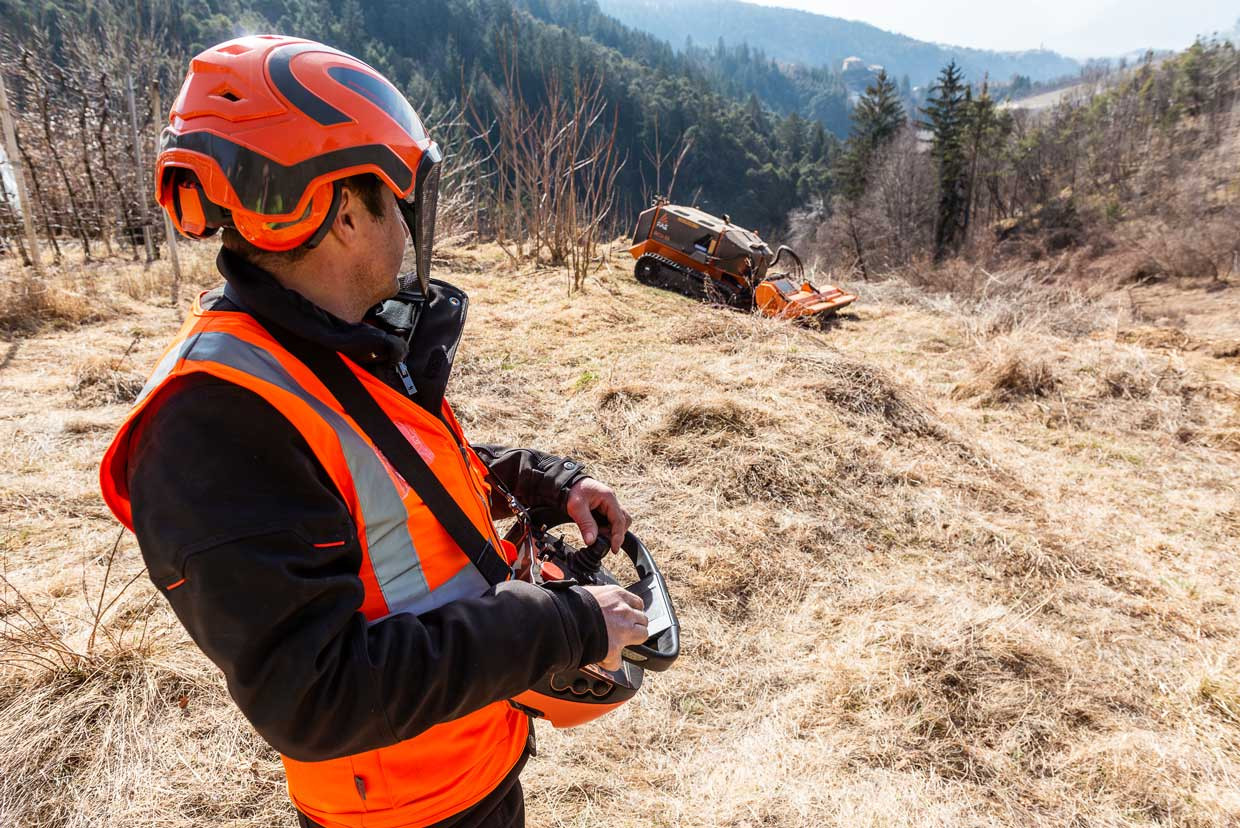

Works on sloping terrain up to 55°. Full counter-rotating.

BITE LIMITER

Available on the BL1/RCU forestry mulcher with Bite Limiter technology.

HIGH-TECH

Integrated system of electronic control units and sensors for maximum performance at all times.

PROFESSIONAL

The result of FAE’s experience designing PT and Demining tracked carriers.

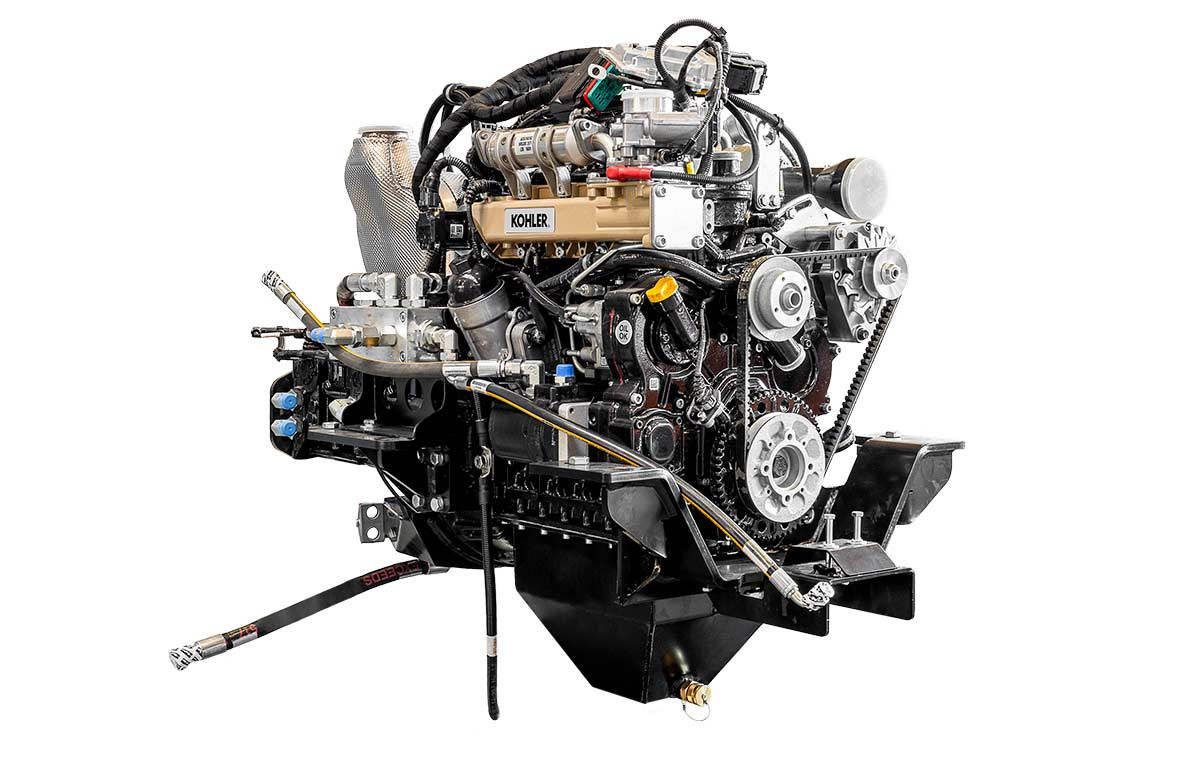

  • Compact, powerful, low noise / vibration engine for RCU-55 FAE, fuel efficient and compliant with the most stringent emissions regulations
    Compact and powerful motor

    Compact and powerful 56-hp Kohler Common Rail electronic fuel injection engine. Oil pan co-designed and tested by FAE and Kohler to ensure correct lubrication, even on slopes up to 55°. Low-noise and low-vibration. Fuel efficient and compliant with the strictest emissions standards.

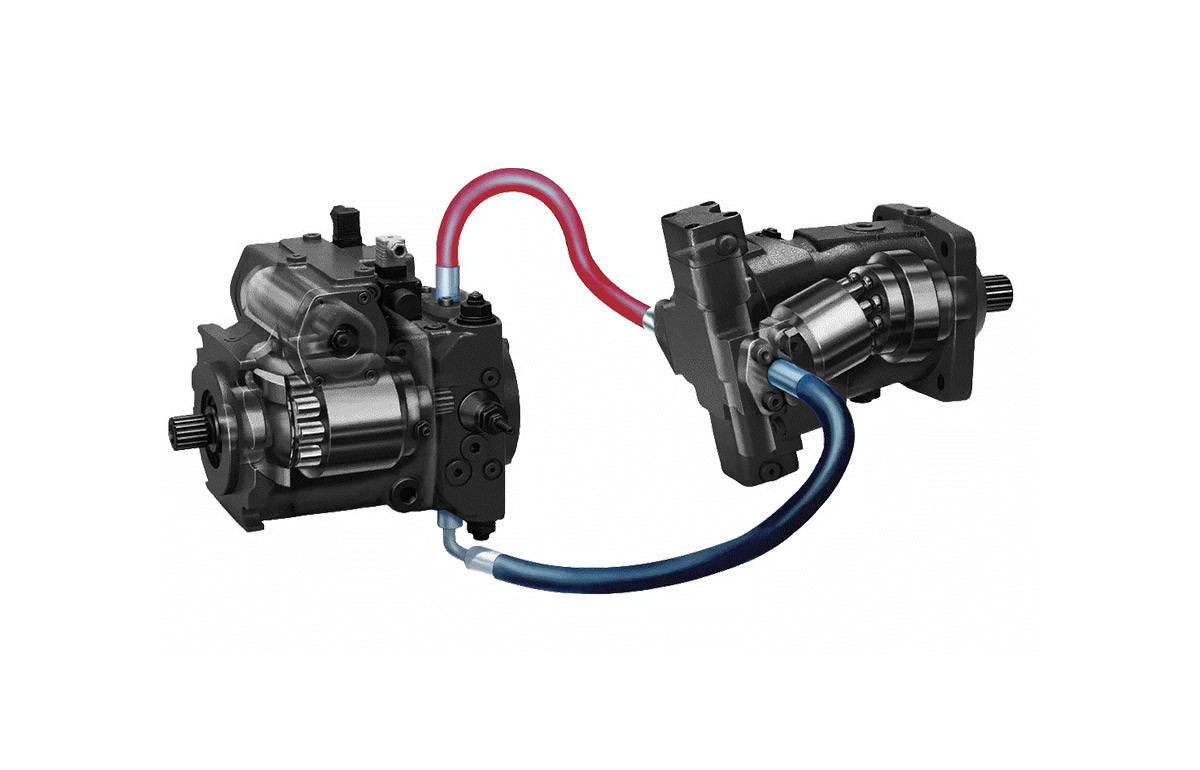

  • Hydrostatic transmission of the RCU-55 FAE that guarantees high performance and reliability over time, as well as a simple and intuitive mode of use
    Efficient and reliable transmission

    Electronically controlled piston pumps combined with a dedicated electronic control unit provide an integrated technological system. The result is high performance and long-term reliability, as well as simple and intuitive operation.

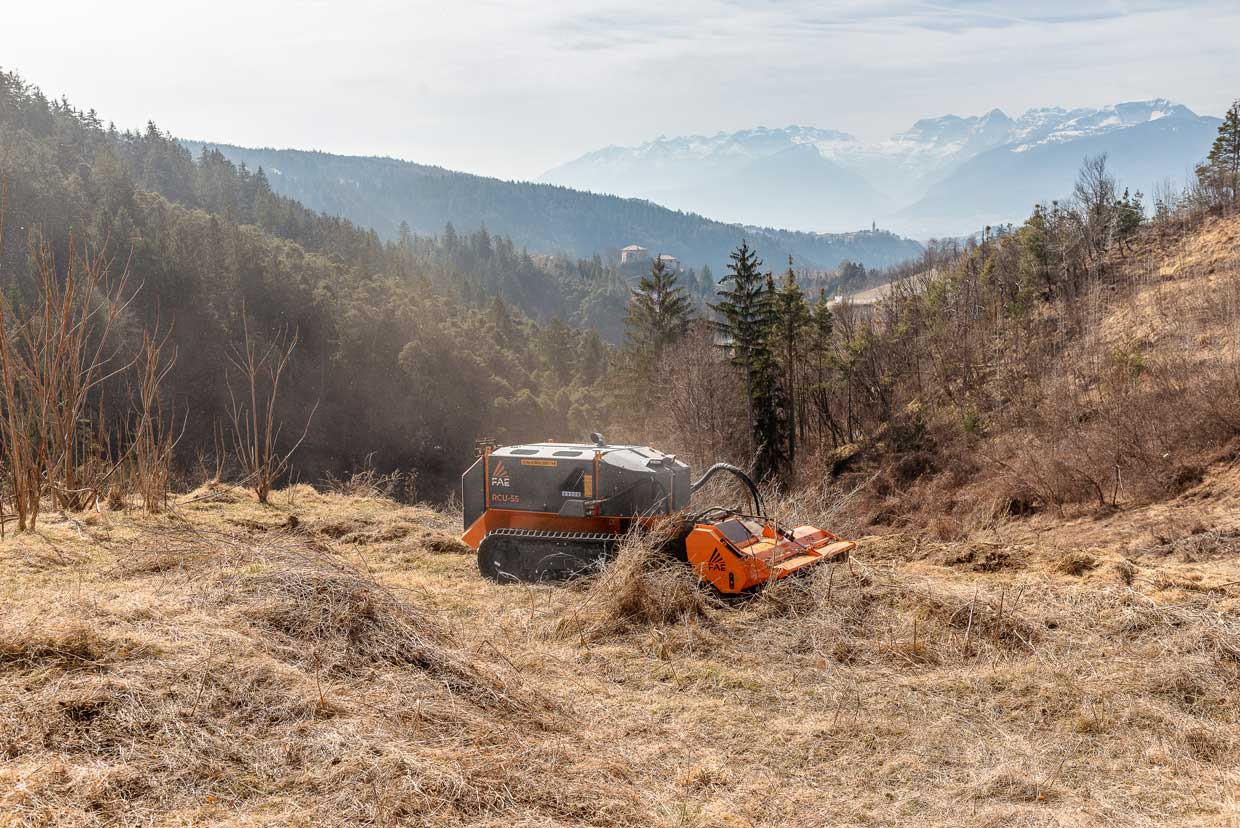

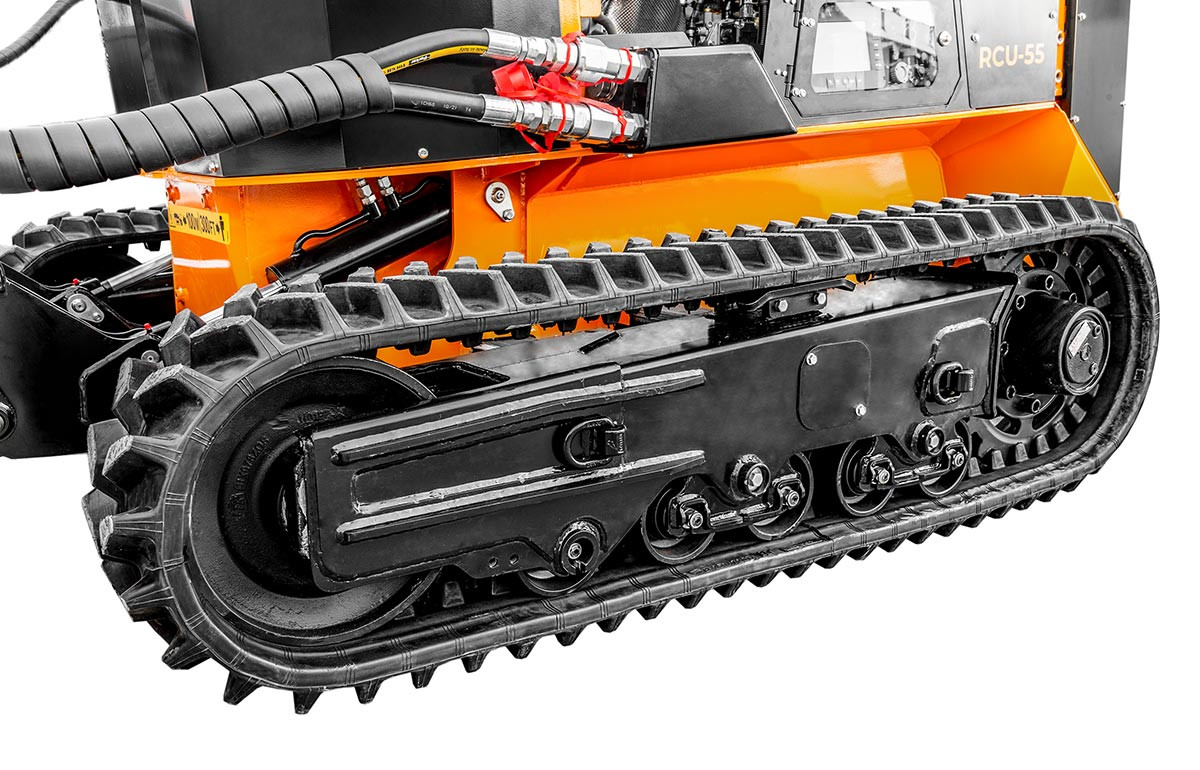

  • RCU-55 hydraulic variable track undercarriage capable of operating even in the most difficult conditions
    Heavy duty undercarriage

    Hydraulic variable track system with independent undercarriage frames and an automatic tensioning system built to work in the toughest conditions, thanks to a rubber tracks structure, multiple roller system and idlers.

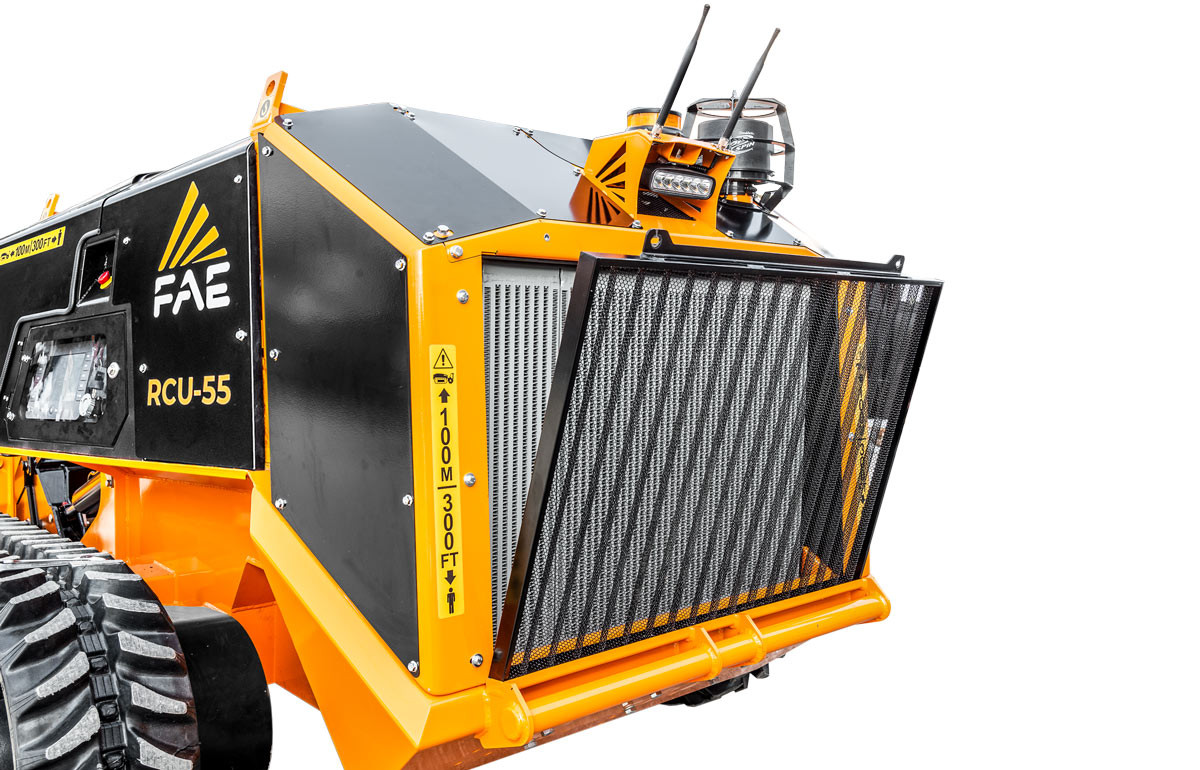

  • The combined aluminum radiator of the RCU-55 FAE guarantees maximum performance and reduces maintenance
    Self-cleaning radiator

    The aluminum radiator combined with anti-clogging fins is paired with a proportional and reversible fan to keep the radiator clean and efficient at all times, consistently maintaining peak performance and reducing the need for upkeep.

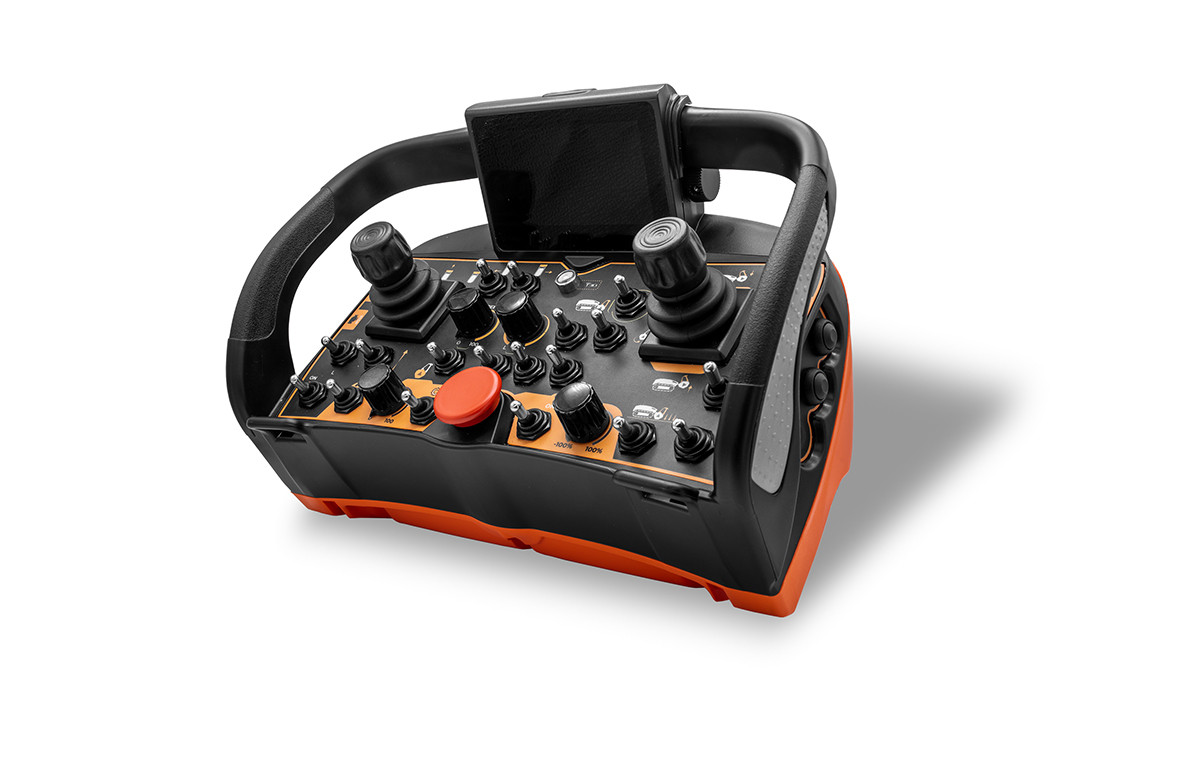

  • Ergonomic radio remote control for RCU-55 FAE radio-controlled vehicle with large 3.5 "display to better manage all vehicle and cylinder head functions
    Professional remote control

    The ergonomic remote control with a large 4.3” display makes it easy to manage all vehicle and attchment functions. Customizable function keys. 2.4 GHz transmission frequency.

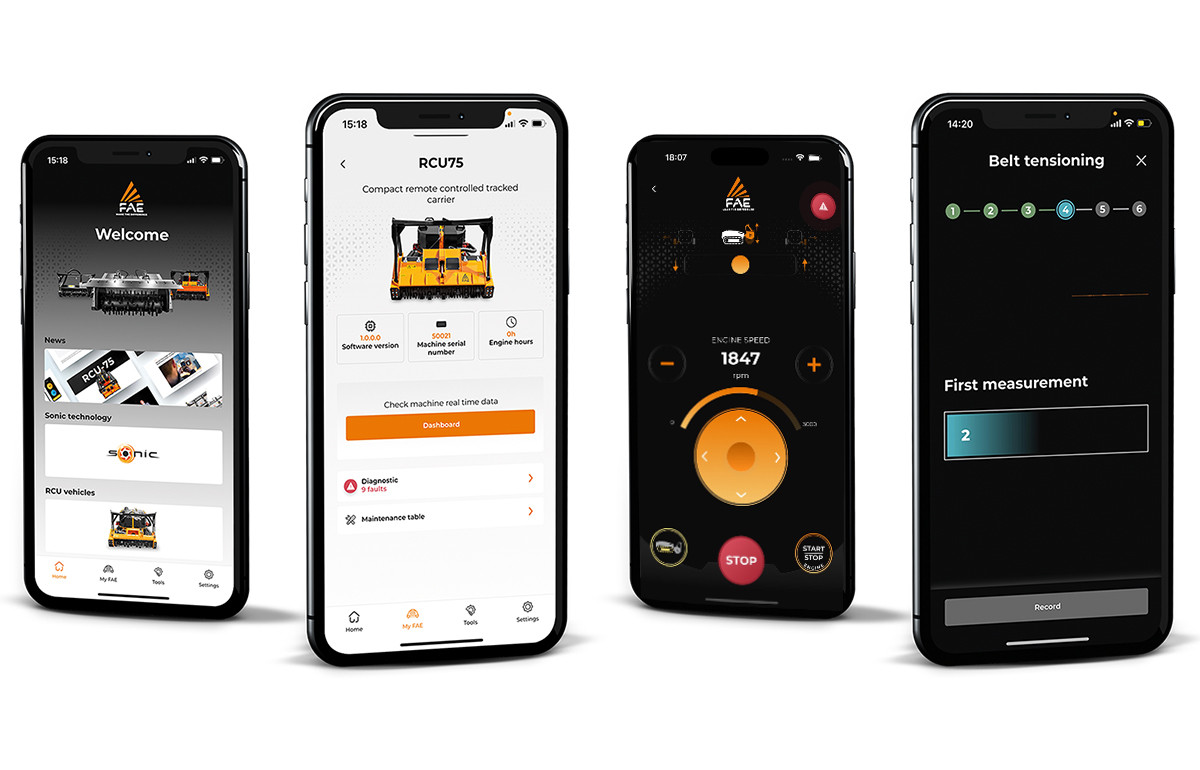

  • FAE App

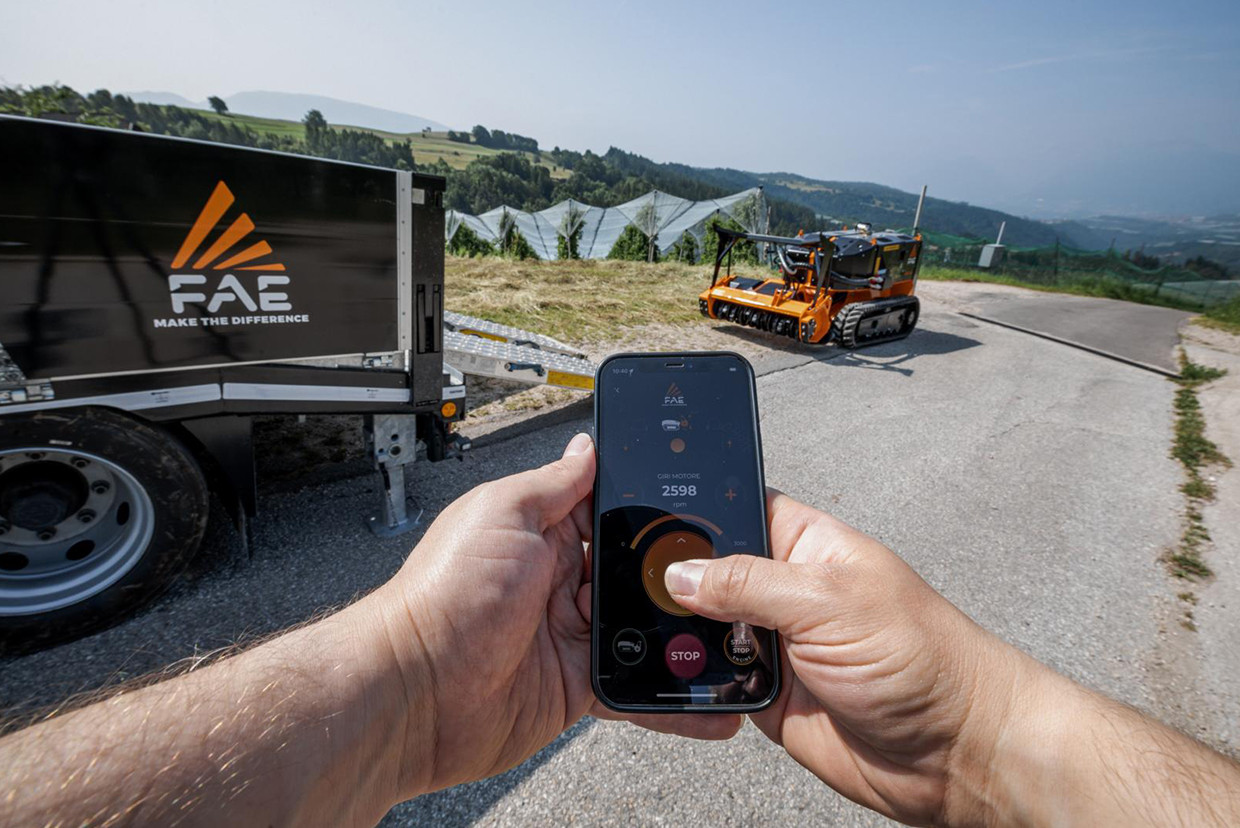

    With the FAE App, you can monitor the main operating parameters, check for any malfunctions, and manage scheduled maintenance in real time from your smartphone.

Standard equipment

    • Combined aluminum cooler with anti-clogging fins
    • Load Control System
    • KOHLER KDI 1903 turbocharged and after-cooled engine
    • Auxiliary hydraulic circuit for attachments
    • Proportional and reversible fan system with hydraulic control
    • Ergonomic controls
    • 4.3" LCD color display on remote control unit
    • Double remote control battery and on-board battery charger
    • 7" LCD on-board color display
    • LED working light
    • High-profile rubber tracks and bogie roller system
    • DOC after-treatment system (RCU55 TIER 4F) & DOC/DPF after-treatment system (RCU55 STAGE V)
    • Independent hydraulic variable track gauge system
    • Floating System
    • Automatic rubber track tensioning system

Options

Rear winch with 2-t traction force
Rear winch with 2-t traction force
Bio-oil| FAE
Bio-oil
Quick-mount tilting attachment plate | FAE
Quick-mount tilting attachment plate
Quick-mount fixed SAE attachment plate
Quick-mount fixed SAE attachment plate
Quick-mount fixed neutral attachment plate
Quick-mount fixed neutral attachment plate

Available heads

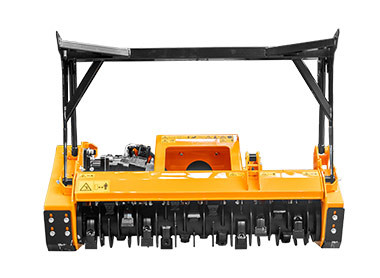

BL1/RCU - Forestry mulcher with Bite Limiter technology
BL1/RCU55
Forestry mulcher for RCU55 with Bite Limiter technology.

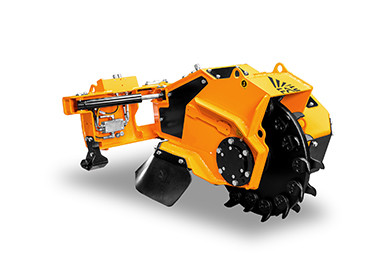

SCL/RCU55, Stump cutters for remote controlled tracked carrier
SCL/RCU55
Stump cutters for the RCU55 remote controlled tracked carrier.
