Multitasks for Tractors

MTL

The MTL enables ground stabilization, milling of asphalt and slabs of rock, and crushing of stones, down to a maximum operating depth of 28 cm.
The variable displacement chamber, adjustable grid on the hood and adjustable Hardox® counter blade enable constantly optimal crushing results. Internal protection plates on the frame, bolted both centrally and laterally, ensure the head is robust and reliable.
The handy depth indicator allows you to check the operating level directly from the cab.
The central gearbox system with universal-joint alignment system is designed to be compatible with a wide range of tractors on the market.

Request information

Technical data sheet

Tractor

from 140 to 240 hp

Working depth

28 cm max

Most important features

Variable displacement chamber

the result is a homogeneously stabilised soil at all working depths

INTERCHANGEABLE HARDOX® INTERNAL AND SIDE GUARDS

Applications:

MTL, multifunction head with variable geometry shredding chamber, the adjustable grille on the hood and the adjustable Hardox counter-blade always allow excellent results in terms of shredding

MTL, the FAE multifunction devices with internal frame protections, screwed both centrally and laterally, make the cylinder head sturdy, reliable and ensure high wear resistance

MTL, multitasks with convenient depth indicator that allows you to check the work level directly from the cabin

MTL, multifunction equipped with a central box with cardan alignment system, is designed to match a wide range of tractors on the market

MTL, multifunction capable of crushing stones and rocks

MTL, the FAE multifunctions used for soil stabilization

MTL, the multifunctional that contains the functions of a cutter, a stabilizer and a crusher

MTL, multifunction able to stabilize soils with the presence of stones

Standard equipment

- Hydraulic rear hood
- Adjustable hood grille
- FCP wear-resistant clad plates
- Interchangeable wear-resistant Hardox® plates
- Enclosed, dust-resistant machine body
- Variable geometry chamber
- Adjustable Hardox® counter blade
- Bolt-on interchangeable protection chains
- Freewheel gearbox
- Side PTO shafts with friction clutches
- Transmission with side gearbox
- Central PTO shaft with cam clutch
- PTO shaft support for machine at rest
- Dozing blades with spring system
- Interchangeable forged steel rotor shafts
- Rotor with teeth G/3
- Wear-resistant side plates

Original FAE tools

Unmatched performance

Pick R/65

standard

Ideal for:

Peaty soil

Low rock content

Tooth G/3

standard

Ideal for:

Buried stumps

Peaty soil

Paved roads

Stone crushing

Tooth G/3/HD

optional

Ideal for:

Buried stumps

Peaty soil

Bituminous road

Stone crushing

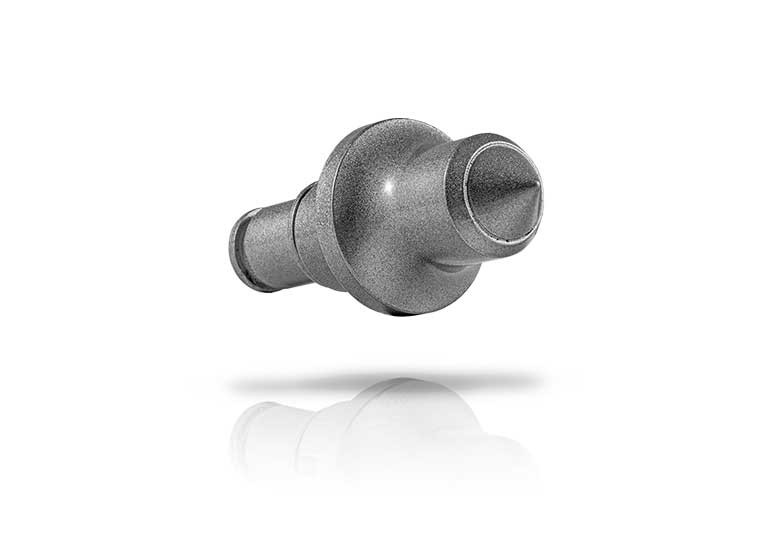

Pick R/65/HD

optional

Ideal for:

Peaty soil

Low rock content

Paved roads

Stone slabs

Tooth STC/3/FP

standard

Side scraper

Pick R/65/HD

standard

Side scraper

Pick R/44

optional

Options

Multiple tooth options

Basic WSS - water spray system

High Flow WSS - water spray system

Hydraulic top link cylinder

Central PTO shaft yoke

Rotor with picks R/65

Technology

Water Spray System

The Water Spray System has the dual function of cooling and mixing.
The cooling function, useful when the machines work as an asphalt cutter (see multi-task machines), has the advantage of limiting the temperature of the rotor and teeth in contact with the asphalt, preventing it from overheating.
The mixing system, on the other hand, is useful in stabilization operations (see multi-task machines and stabilizers) in which the soil and the stabilizing agent are mixed with water.
In fact, at this stage, the addition of water to the mixing chamber improves binding between the stabilizing agent and the soil, optimizing the result of the consolidation work.

Find out more >

Technology

Variable geometry chamber

This technological solution, which is one of a kind in the industry, allows the ground to be penetrated with the rotor alone. The mobile rotor can be hydraulically adjusted from the tractor cabin. The chamber has a variable volume—the greater the working depth, the greater the volume of the chamber.

Compared to a machine that plunges the frame into the ground, the variable geometry chamber reduces traction stress, which decreases fuel consumption and increases operating speed, saving time as a result.

Find out more >

Technology

Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >
